The above-mentioned parameters apply to a partition made of sheet metal profiles with a thickness of 0.55 and 0.6 mm.

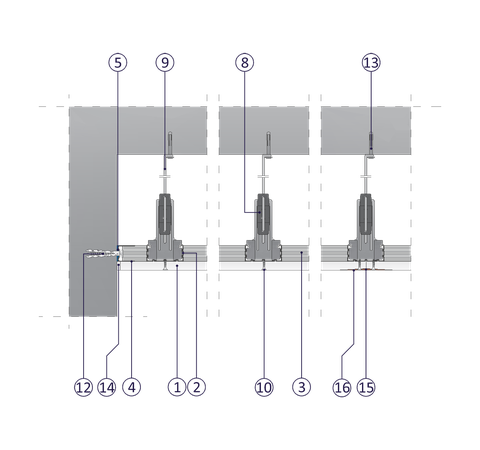

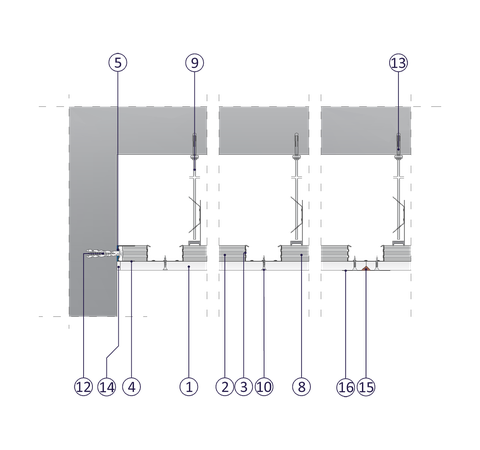

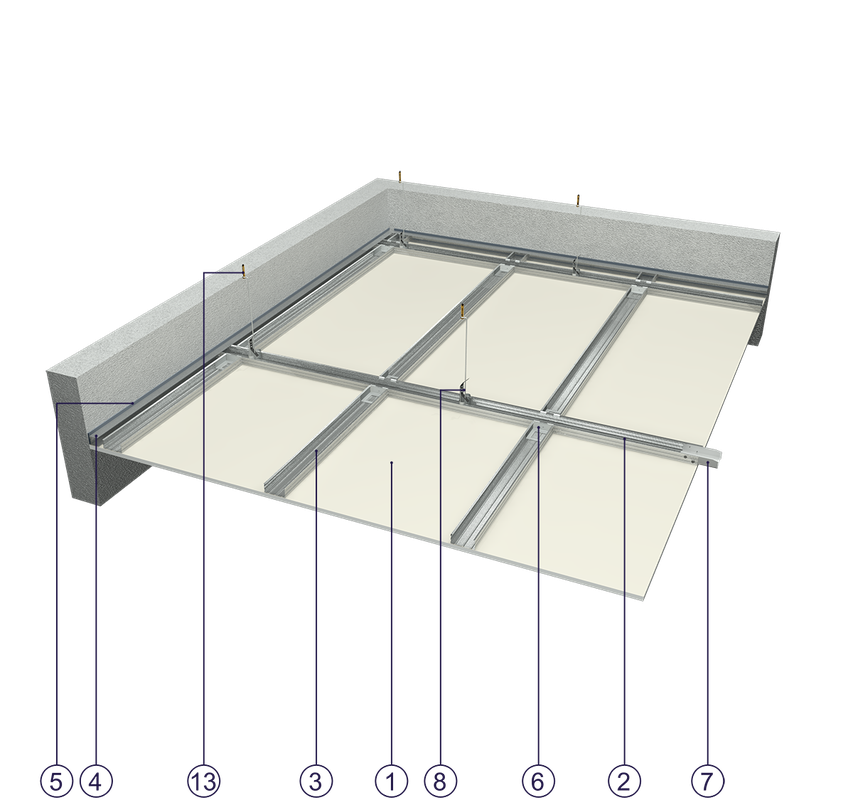

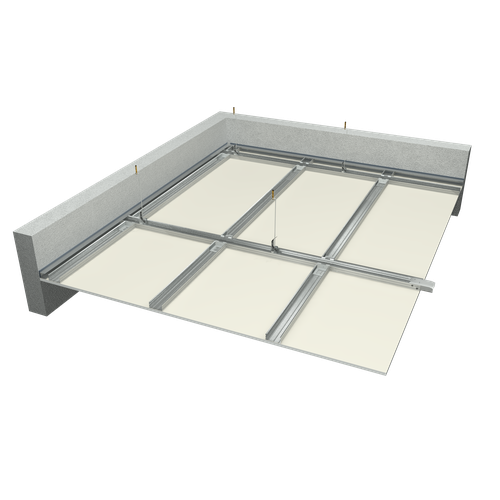

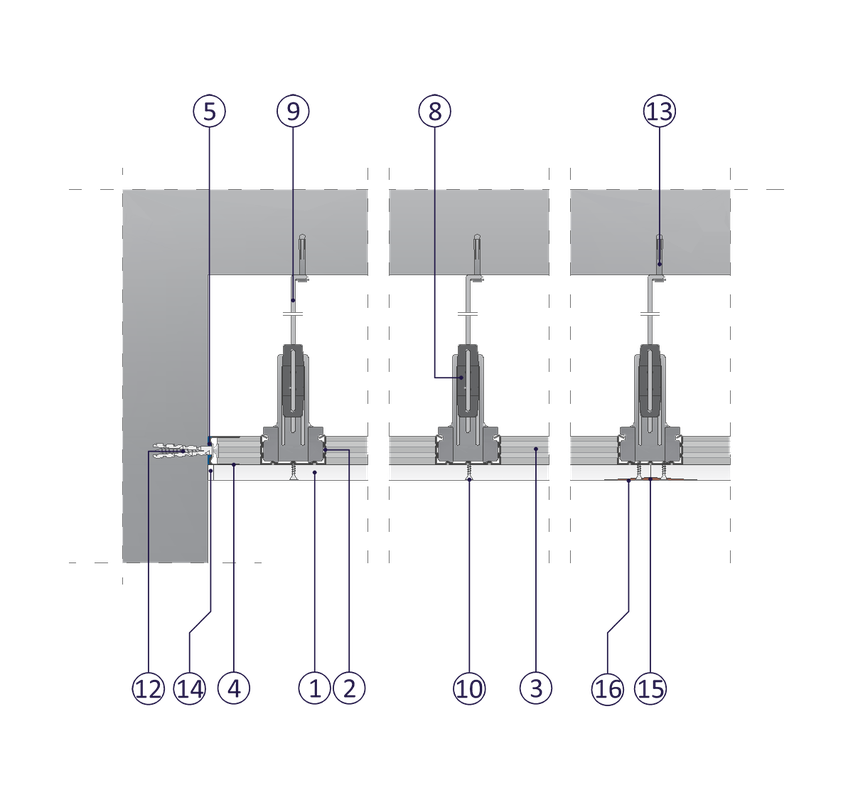

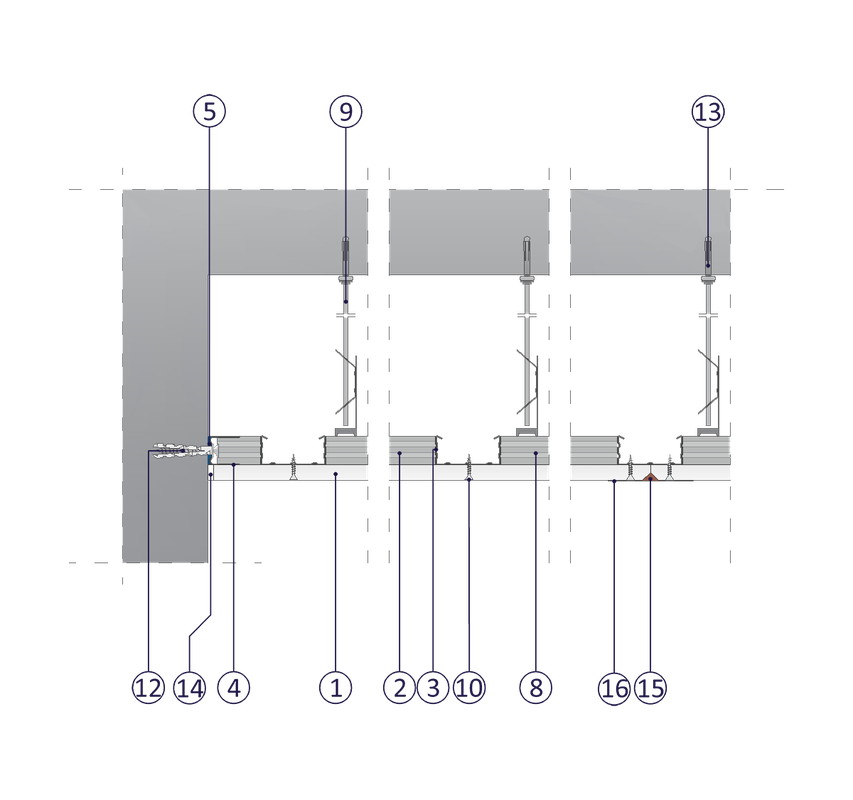

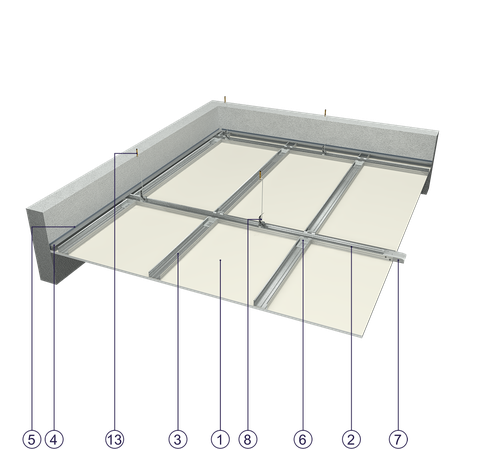

In the SPJ - 1x15 GKF DF/CD 60, S system, the use of sheet metal profiles with a thickness of 0.5 mm is not allowed.
If a partition separates environments of various temperature levels, possible application of an insulting material must be preceded with an analysis of thermal and humidity conditions. Such an analysis may result, e.g. in the necessity to apply a vapour resistant foil.
basic
Provides a lightweight stable building with basic fire resistance. A robust and cost-effective solution.
Value of materials per 1 m2 of suspended ceiling
:Value of materials per 1 m2 of suspended ceiling
: {get_calculation_per_meter} PLNTotal value of materials for the suspended ceiling surface area
:Total value of materials for the suspended ceiling surface area
: {get_total_calculation} PLNThe above material consumption standards are just estimates and do not include waste resulting from material installation. The calculation does not constitute a commercial offer within the meaning of Article 66 § 1 of the Civil Code.
* In order to calculate the wall construction cost, enter material unit prices.
Q1 - Double filling of plasterboard joints and connections with a structural joint filler (Norgips Start & Finish or Norgips Star), sealing a reinforcing tape, covering visible fasteners with a joint filler
Q2 - Includes the Q1 scope plus filling plasterboard joints with a finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) until a smooth transition of a joint into a plasterboard surface is achieved
Q3 - Includes the Q2 scope plus filling the entire partition element (joints and cardboard) with an approx. 1 mm thick layer of finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) to level the surface, close all pores and consolidate absorptivity of filled surfaces
