Description

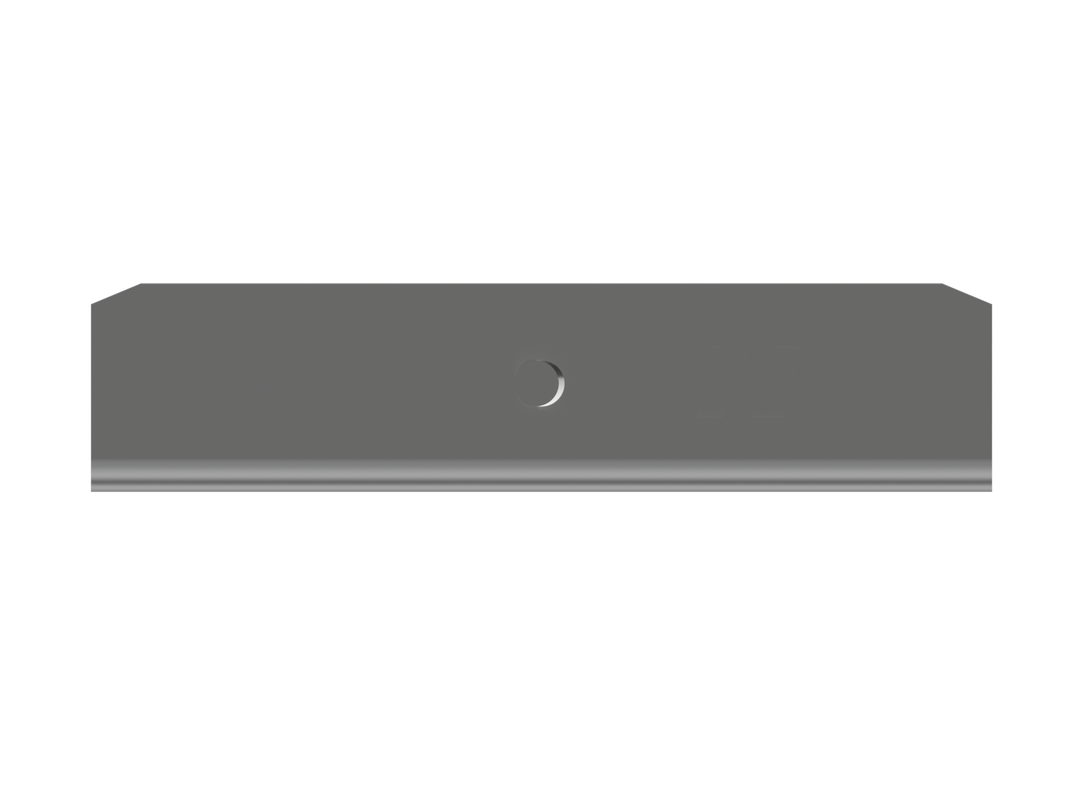

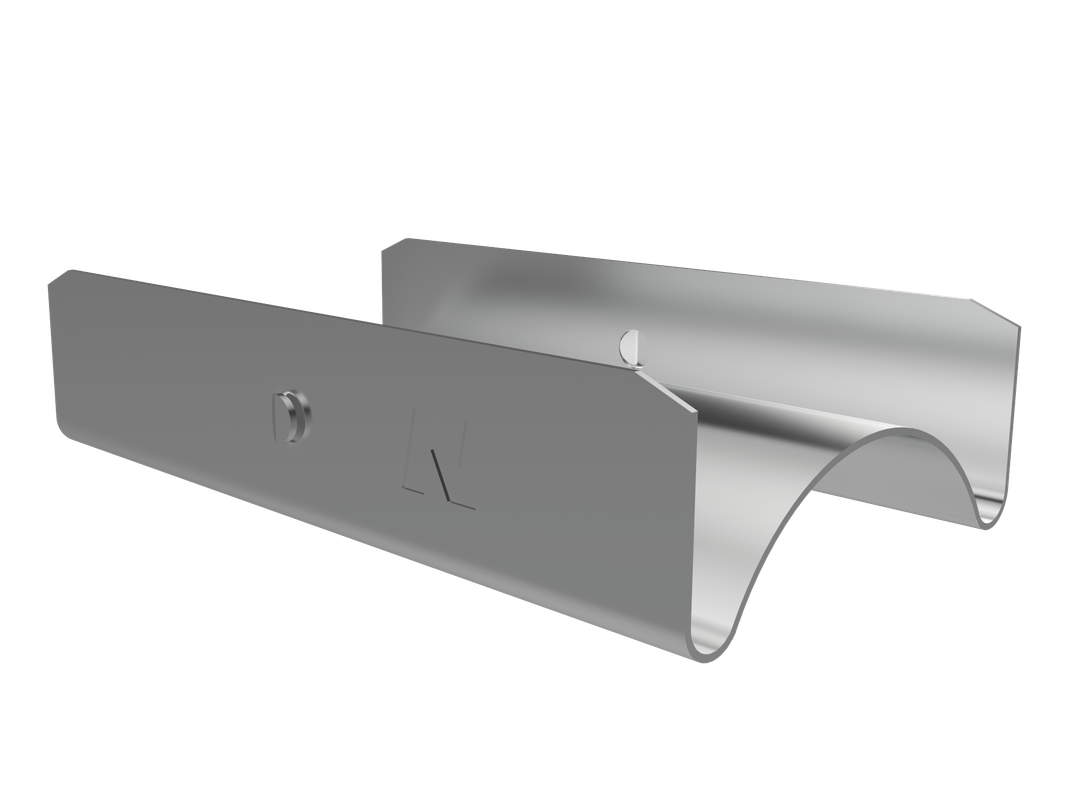

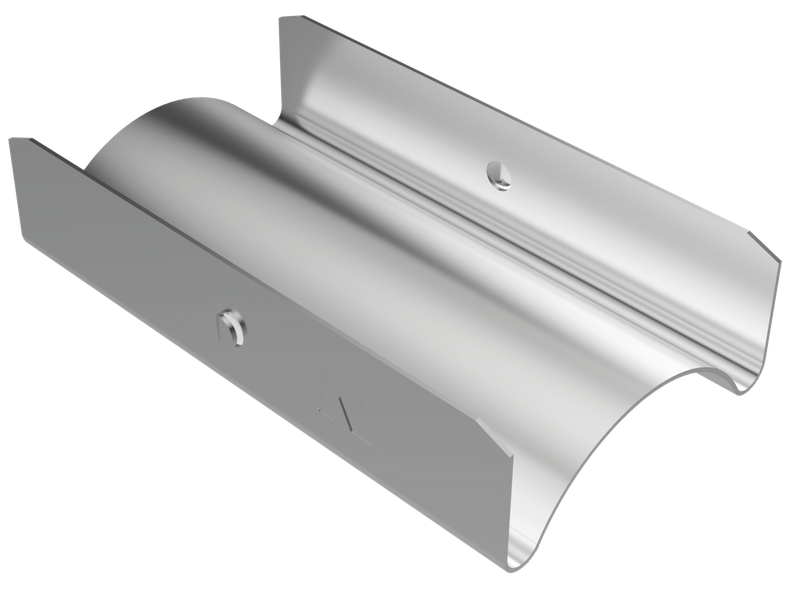

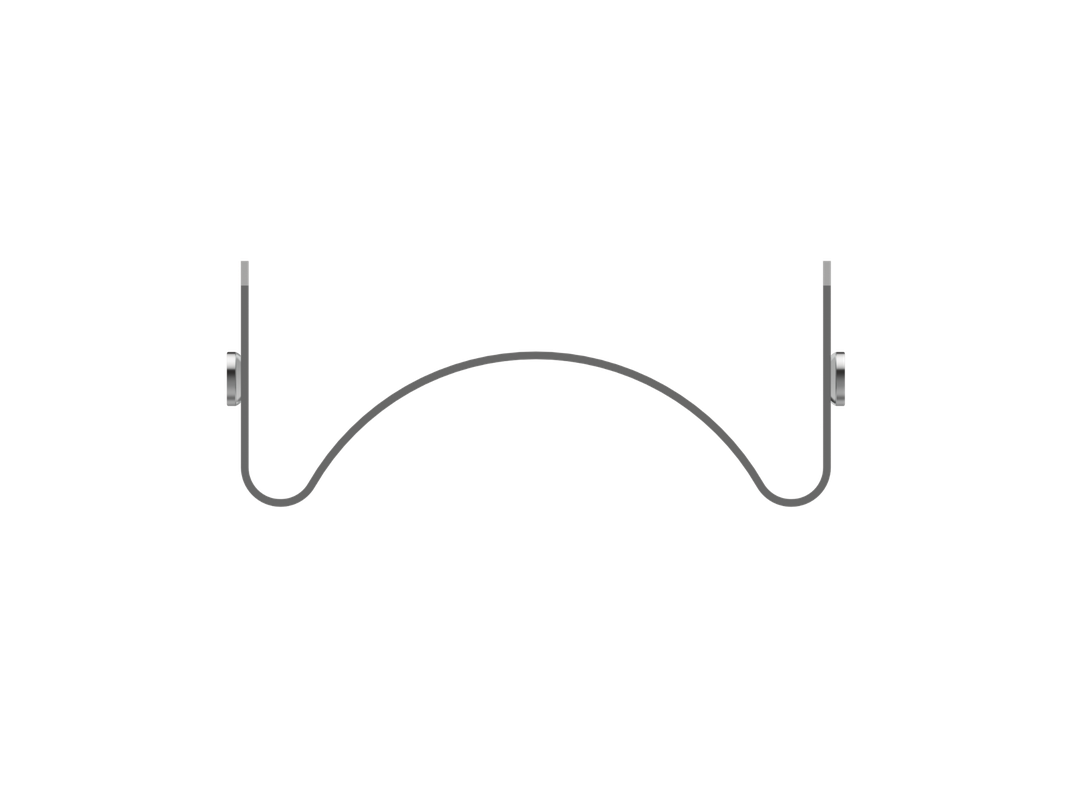

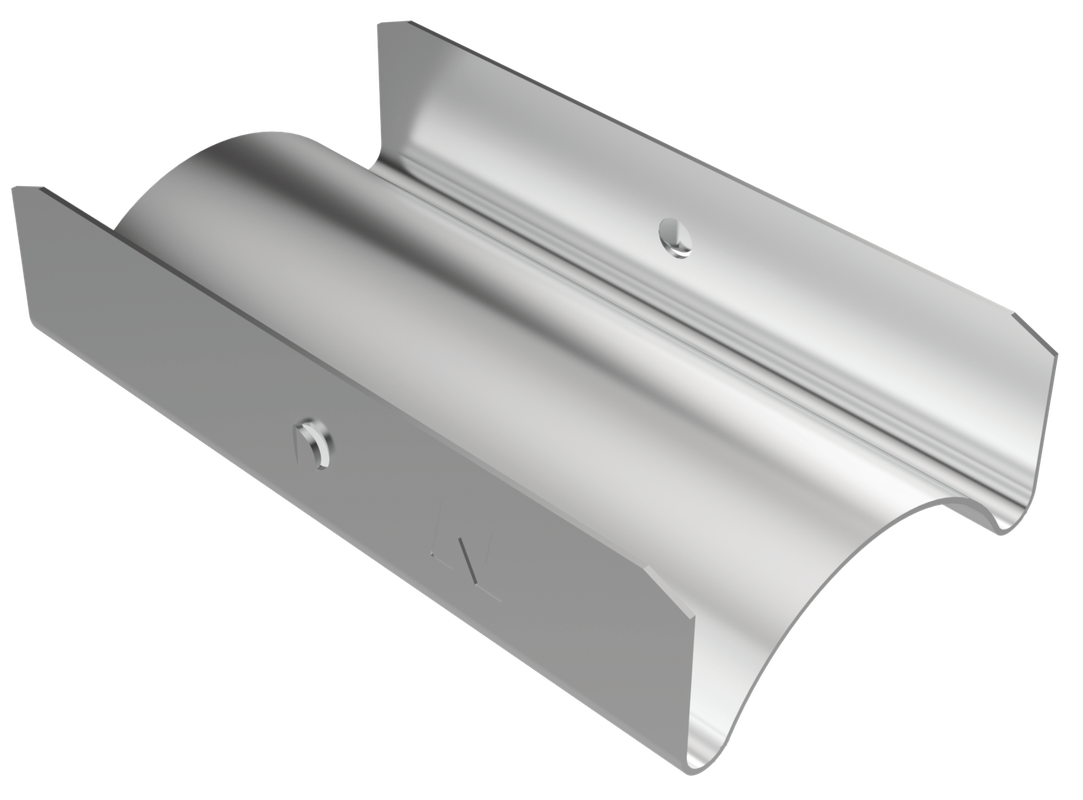

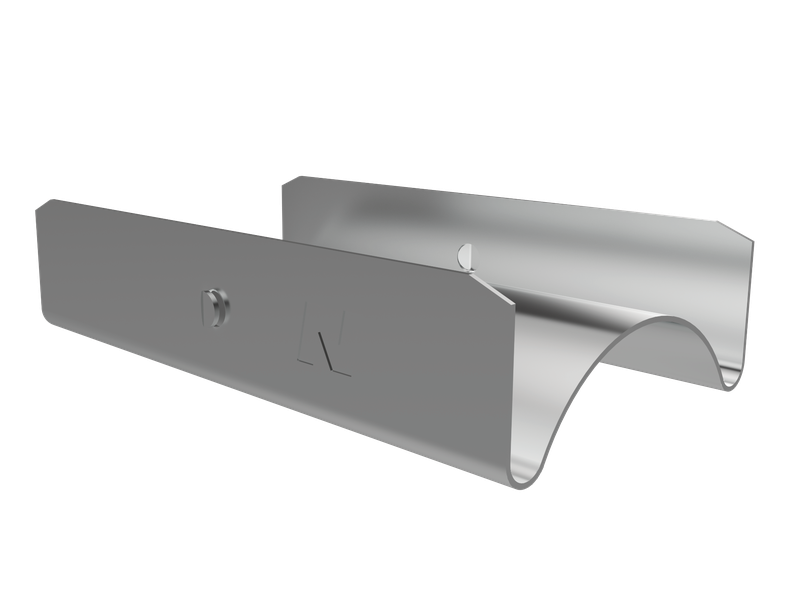

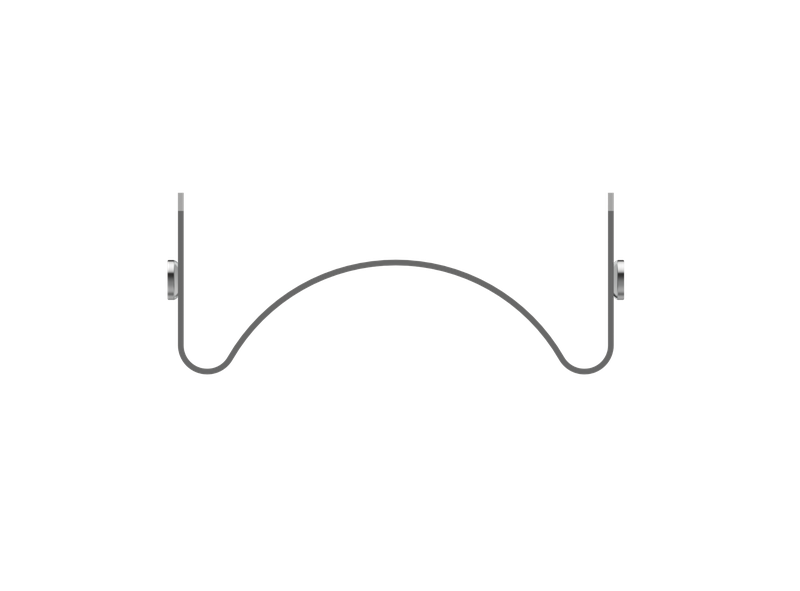

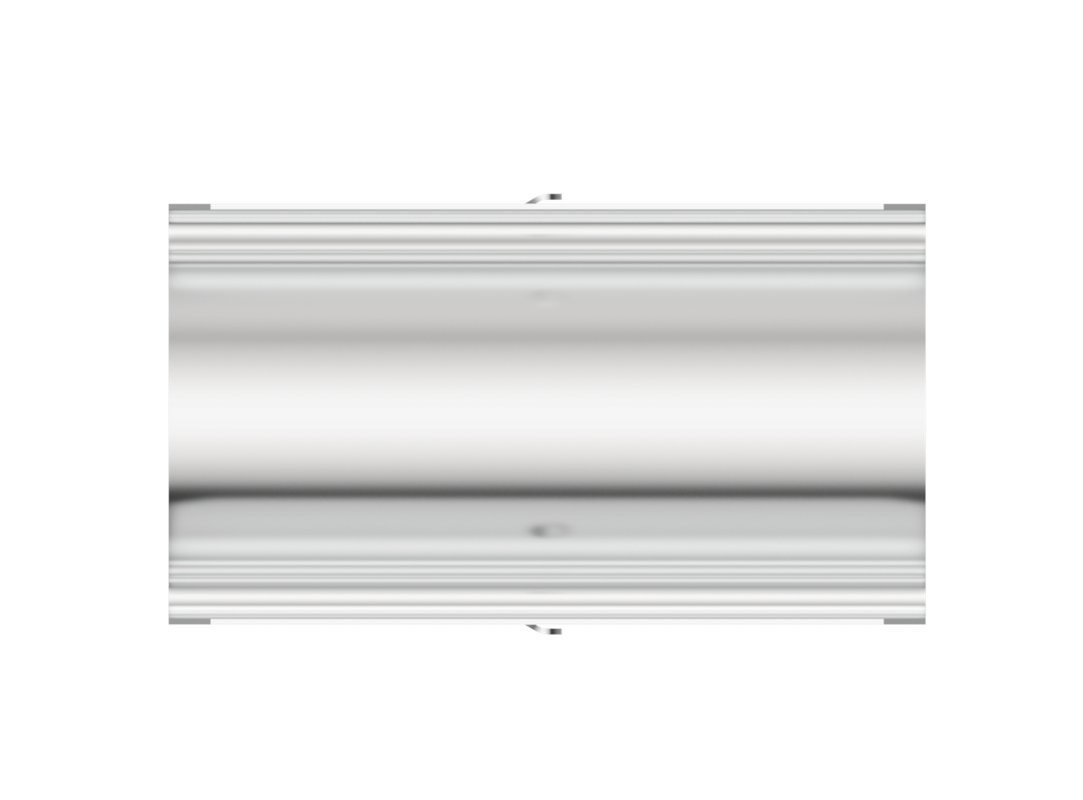

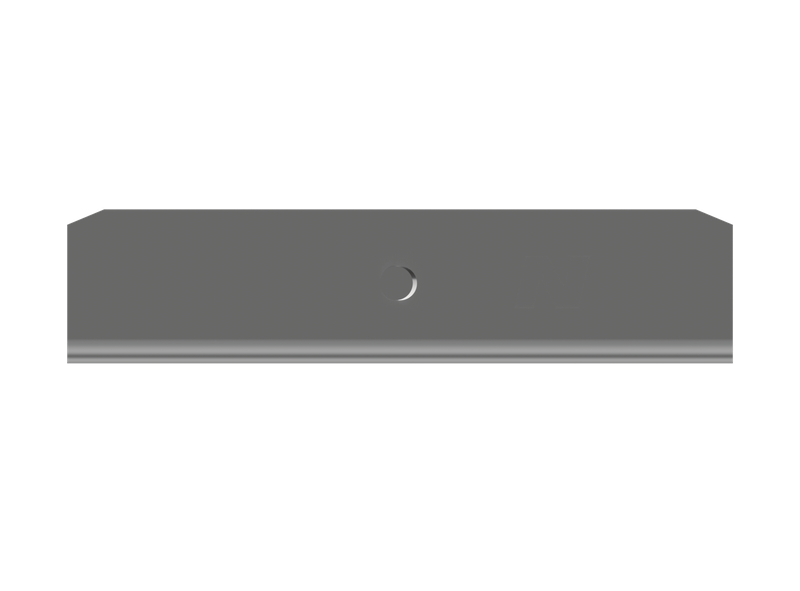

One-sided longitudinal coupler made of zinc-coated 0.5 mm tick sheet metal. Metal framing component in accordance with PN-EN 13964:2014-05.
One-sided longitudinal coupler made of zinc-coated 0.5 mm tick sheet metal. Metal framing component in accordance with PN-EN 13964:2014-05.
Designated for indoor use as an element of a drywall supporting structure. Designated for lengthwise joining of CD 60 profiles when
constructing dropped ceilings or attics in locations where longer profiles are required. For making a single joint with profiles, eight
Norgips 3.5 x 9.5 mm sheet metal screws with self-tapping bits are to be used.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Safety of use. Made of 0.5 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
0,5
Type of corrosion protection
Zinc-coated steel
Durability
Class B
Reaction-to-fire performance
A1
NOTES FOR GUIDANCE
The coupler requires indoor storage. Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s recommendations and design guidelines. Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
