Description

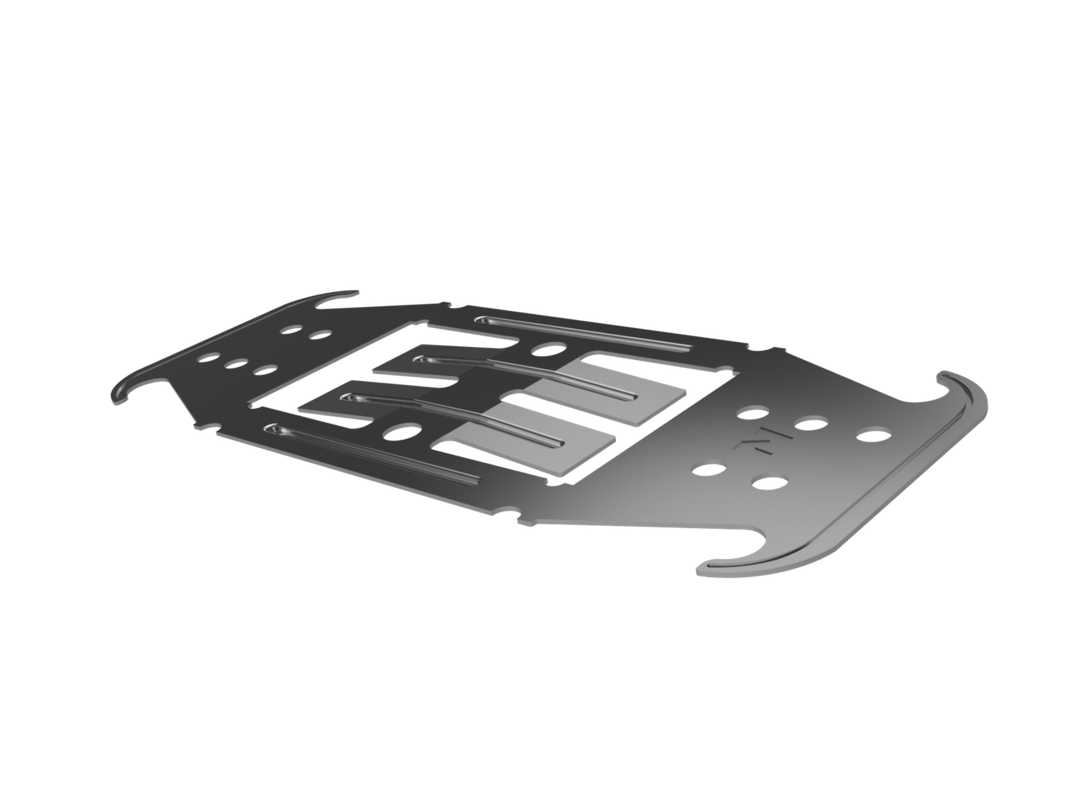

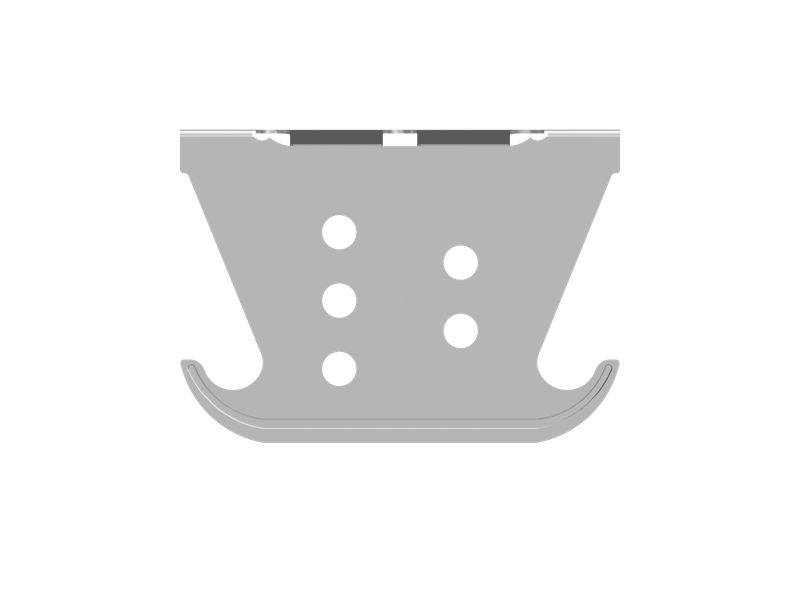

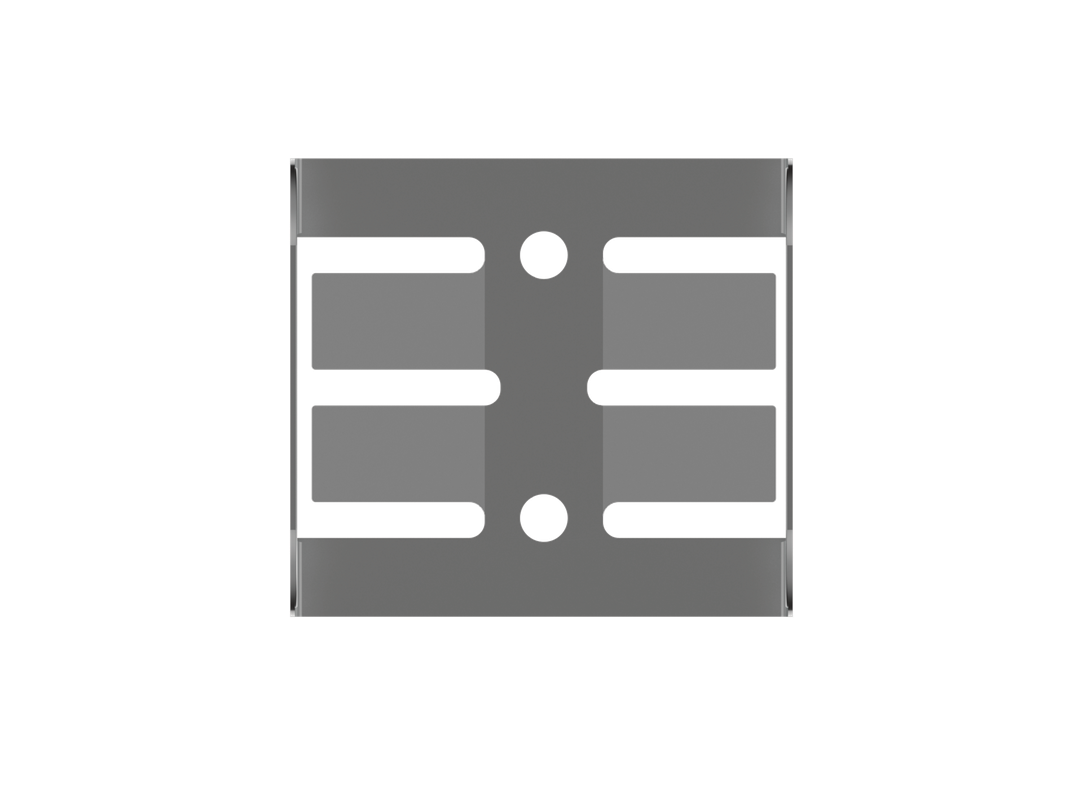

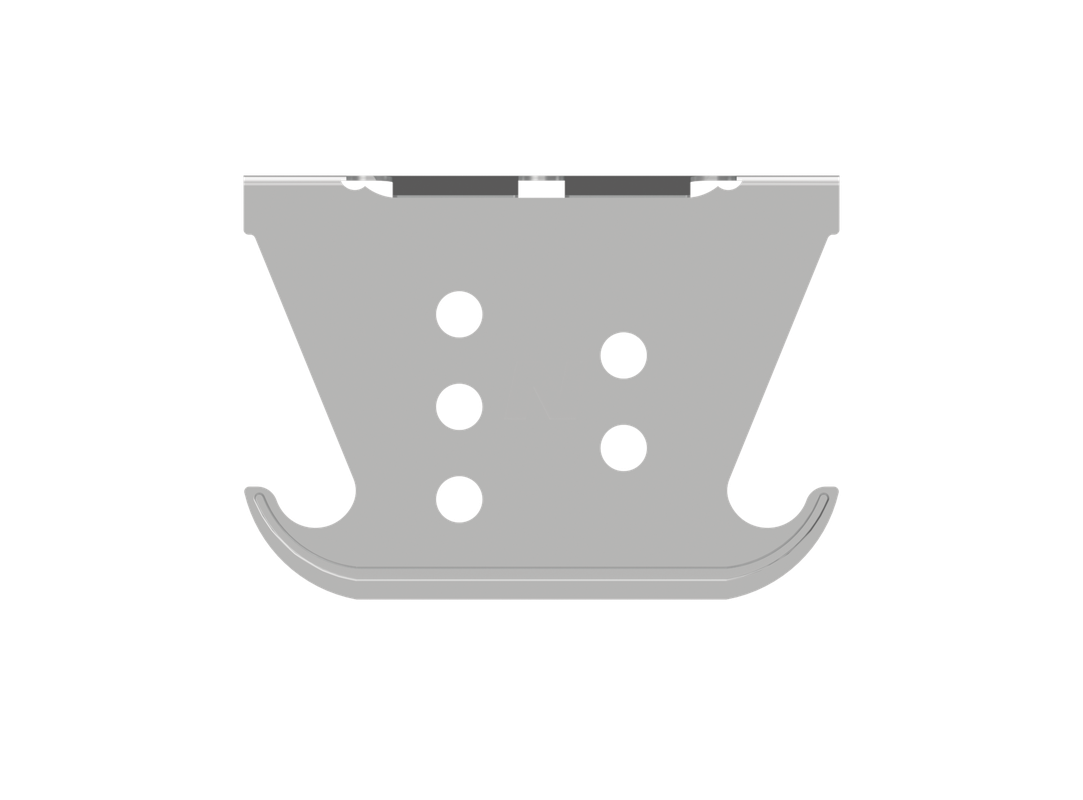

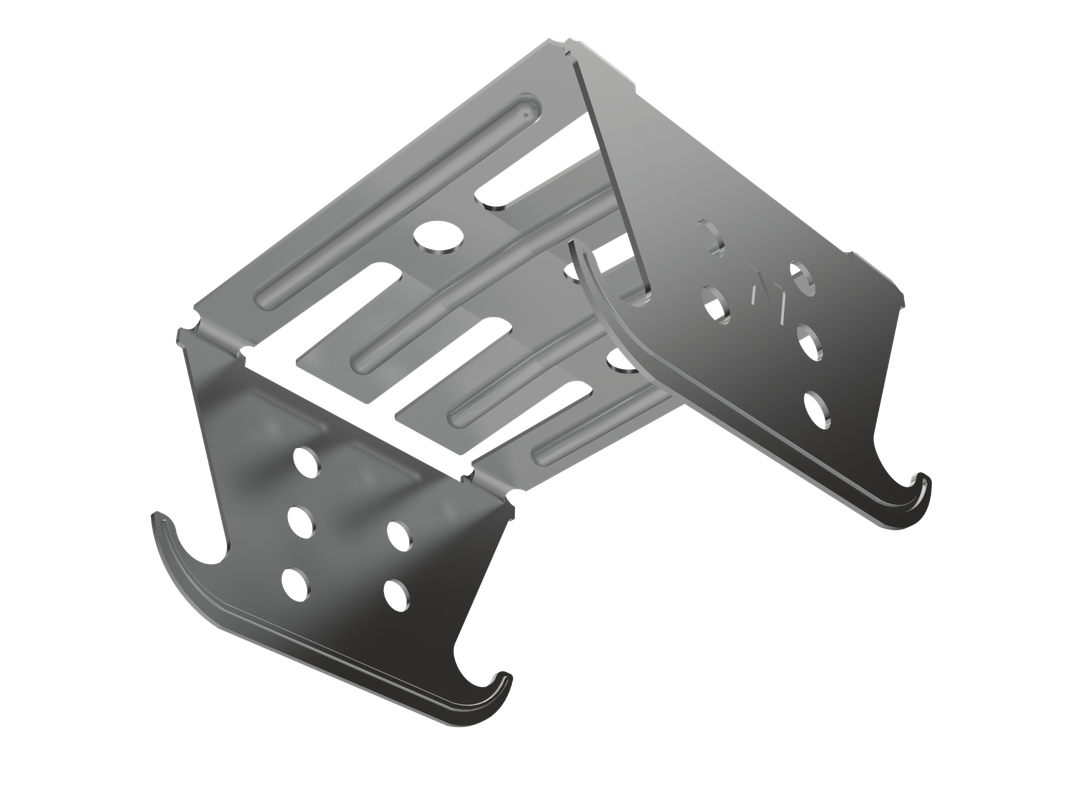

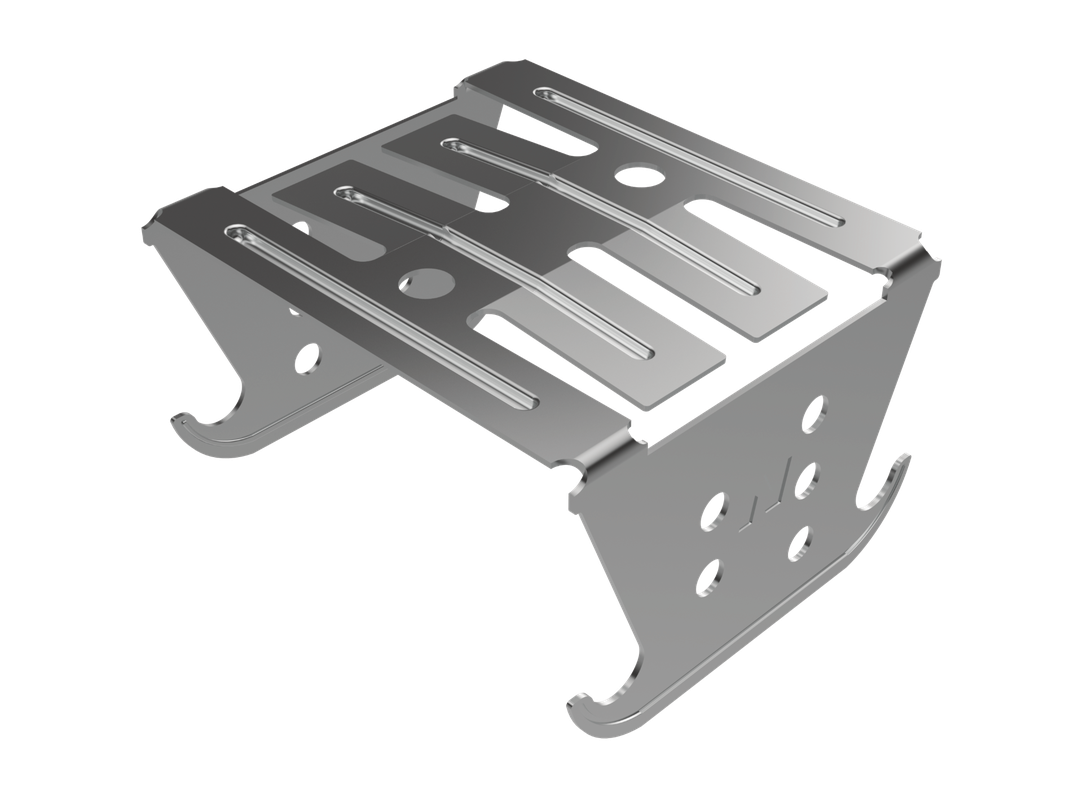

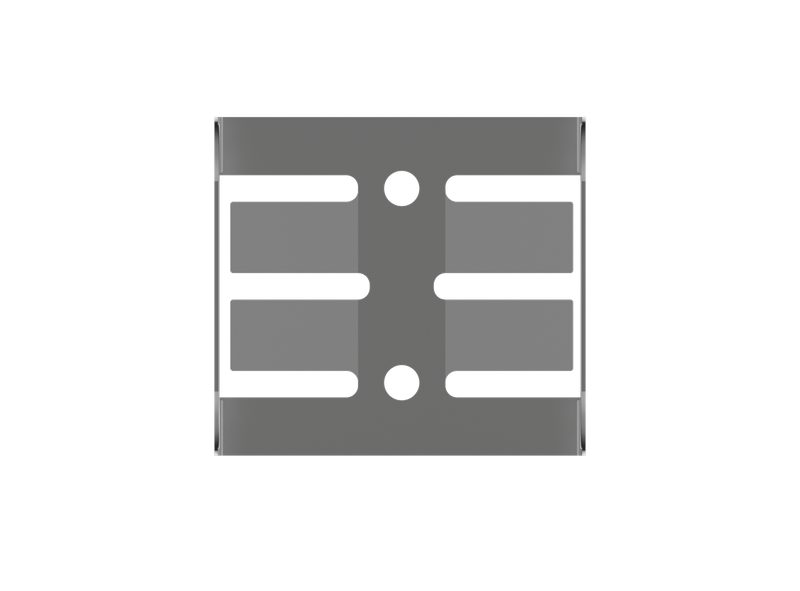

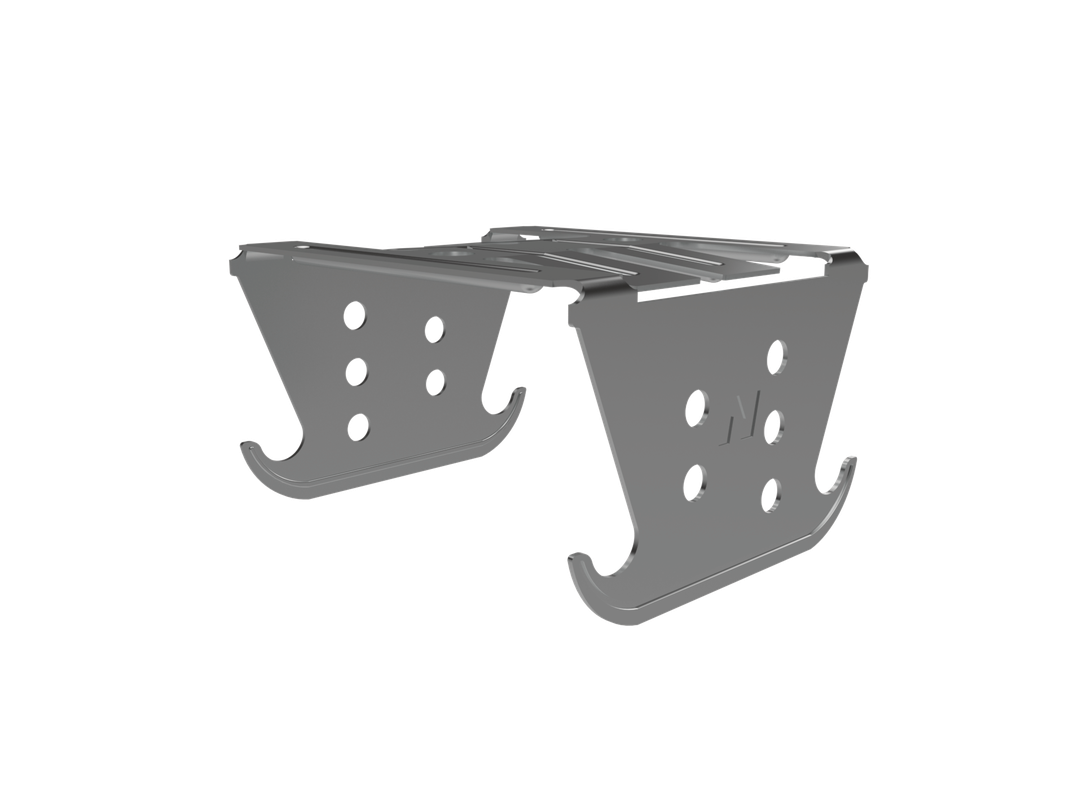

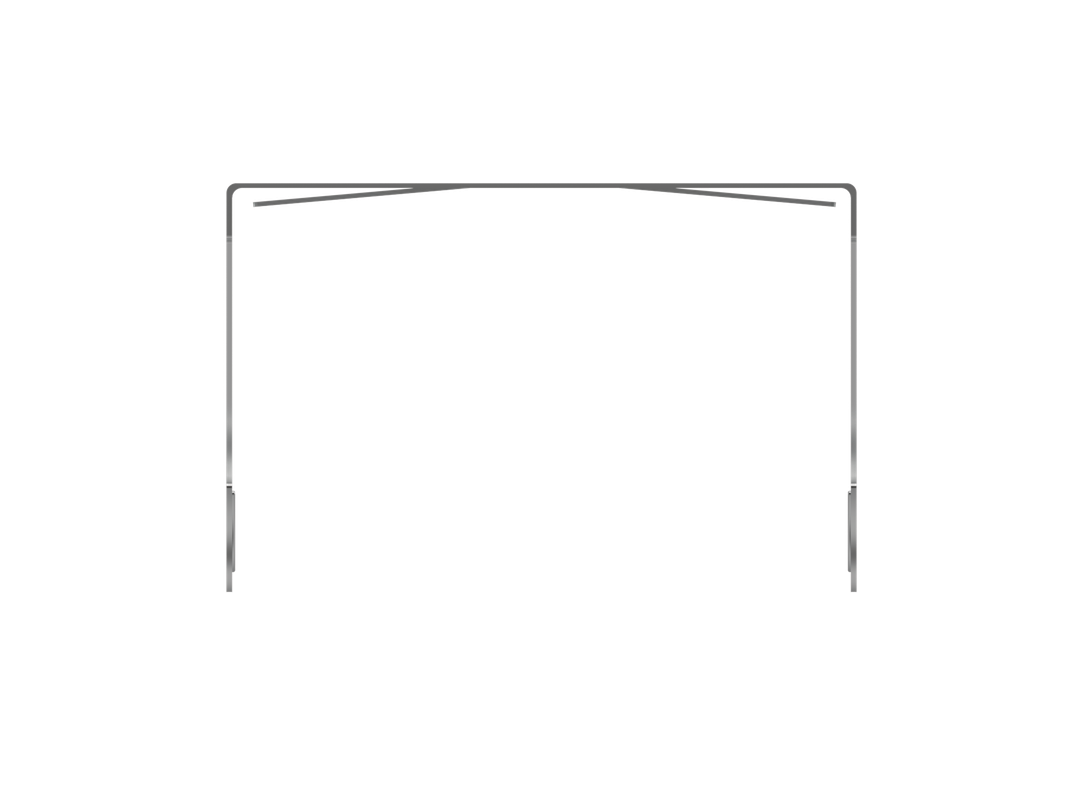

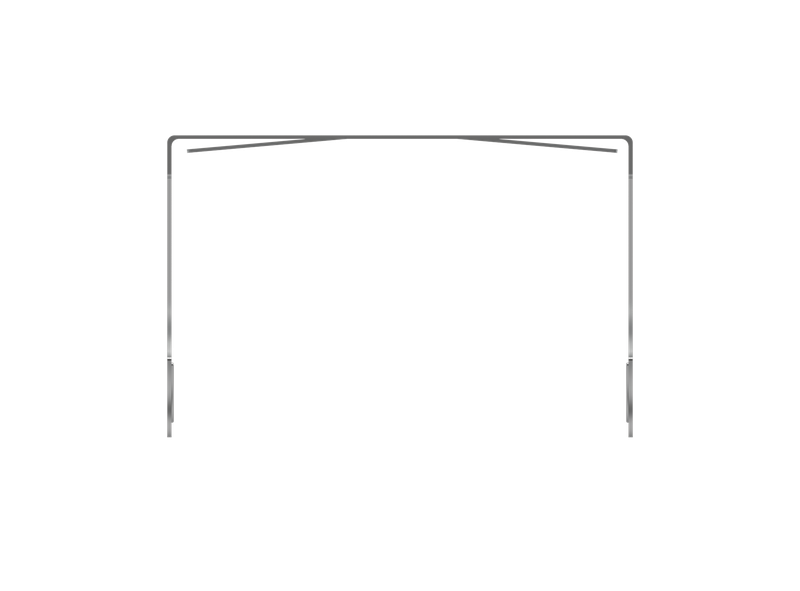

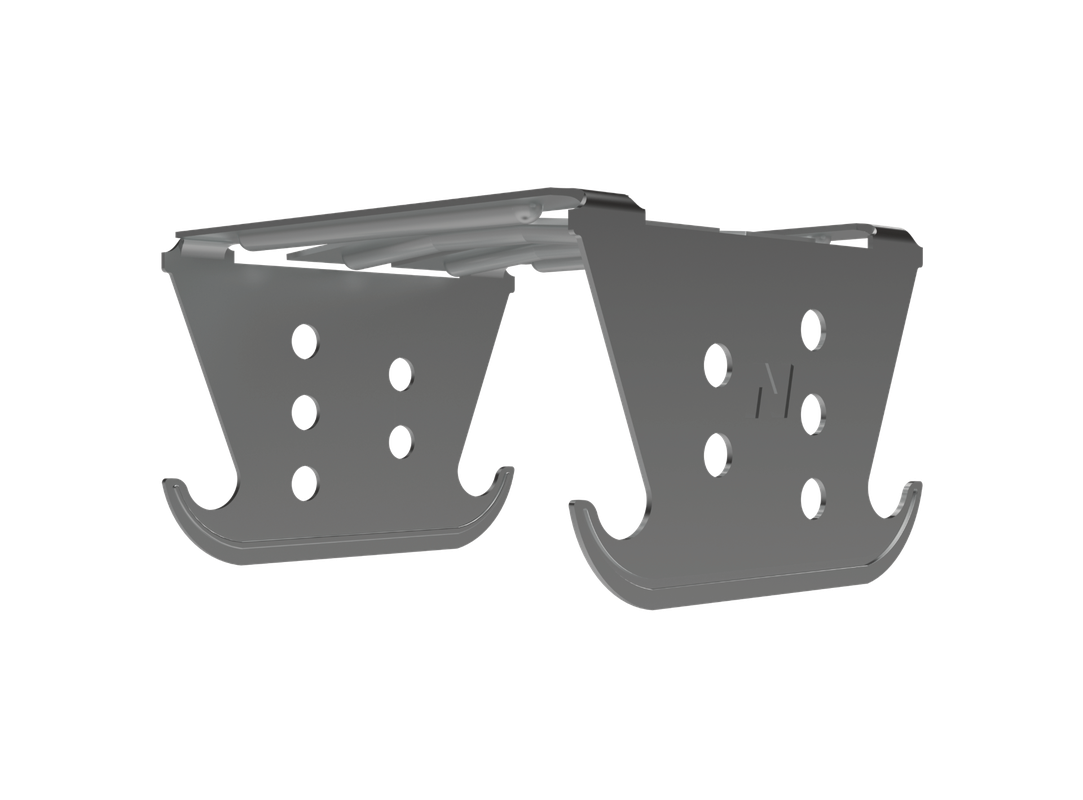

One-sided cross coupler made of zinc-coated 0.7 mm thick sheet metal. Modular product belonging to the accessories category.
Metal framing component in accordance with PN-EN 13964:2014-05.
One-sided cross coupler made of zinc-coated 0.7 mm thick sheet metal. Modular product belonging to the accessories category.
Metal framing component in accordance with PN-EN 13964:2014-05.
Designated for indoor use as an element of a plasterboard supporting structure. Designated for perpendicular joining of traverses built of CD 60 profiles with main CD 60 profiles when constructing dropped ceilings with two-level gridwork. The coupler is snap-on fixed to profiles.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Safety of use. Made of 0.7 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
0,7
Type of corrosion protection
Zinc-coated steel
Durability
Class B
Reaction-to-fire performance
A1
Allowable nominal load [N]
359
Failure load [N]
1018
NOTES FOR GUIDANCE
The coupler requires indoor storage. Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s recommendations and design guidelines. Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
