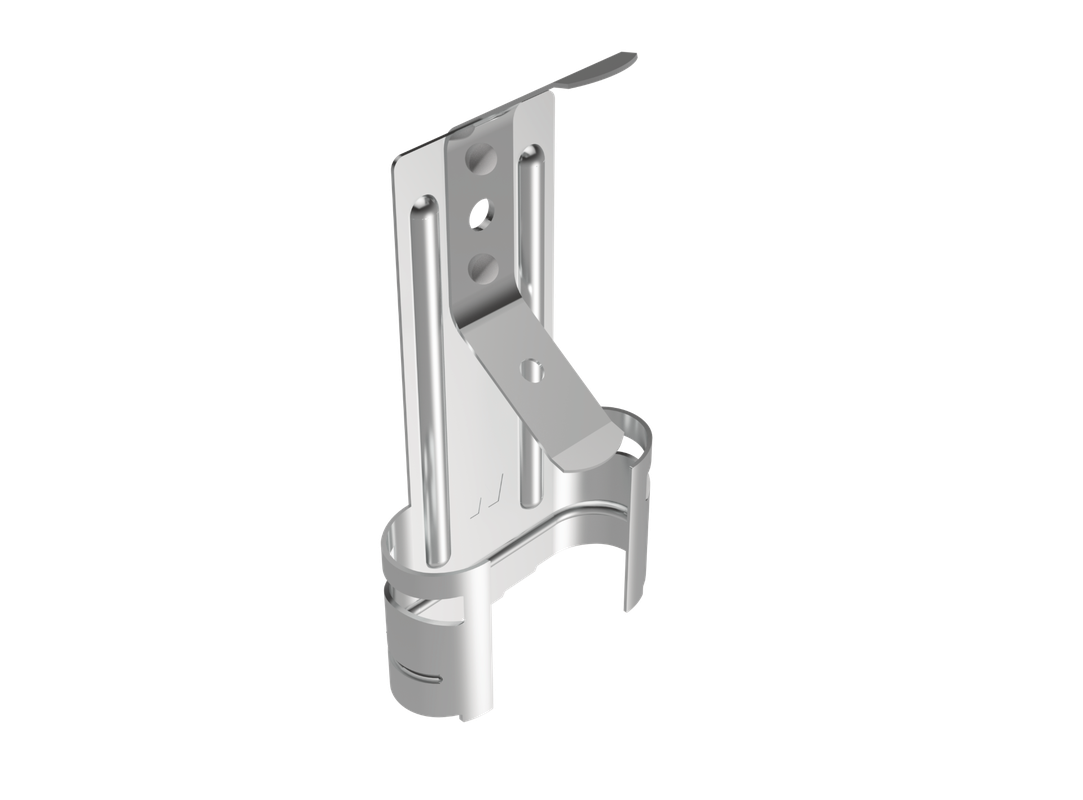

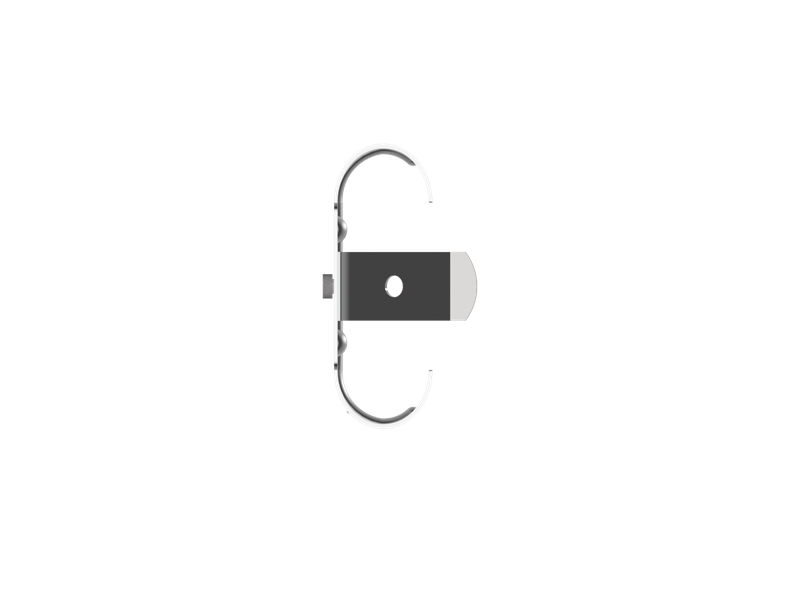

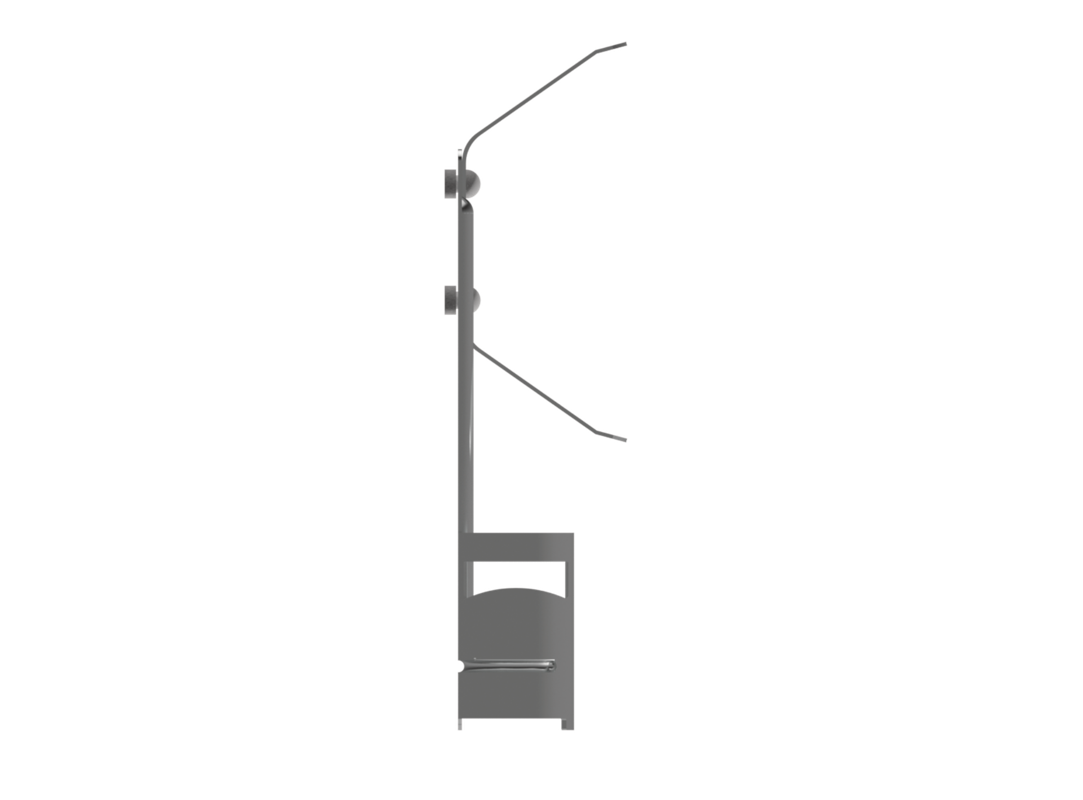

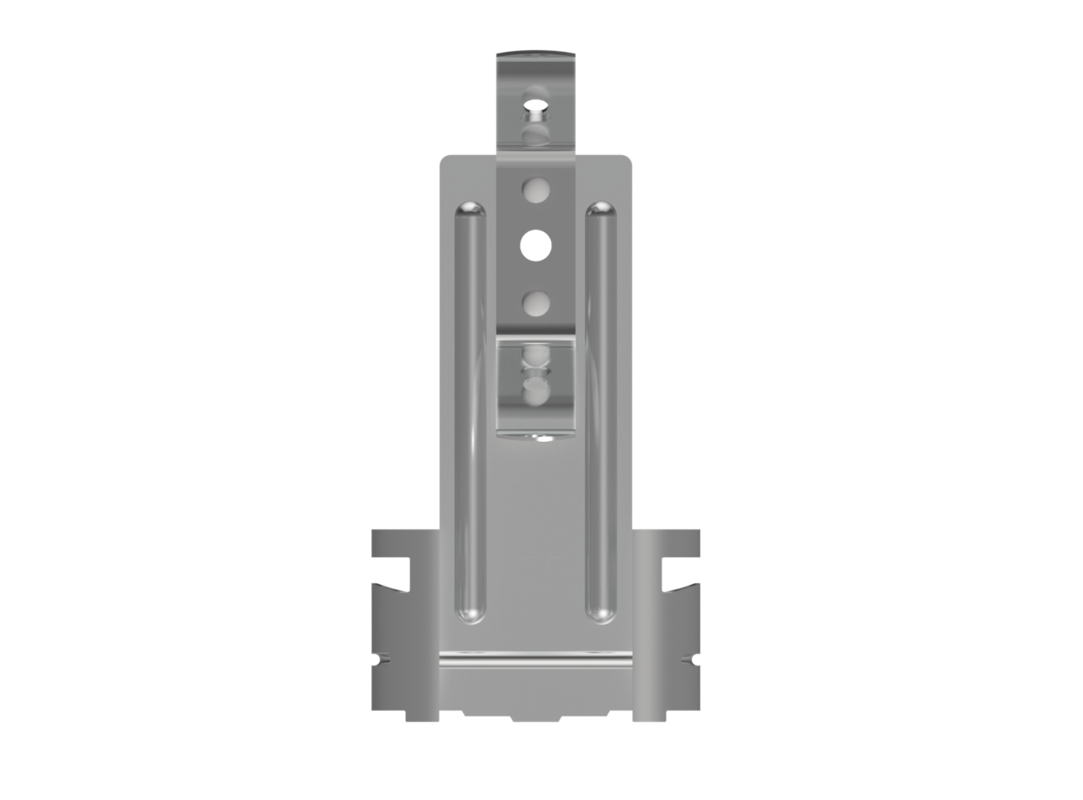

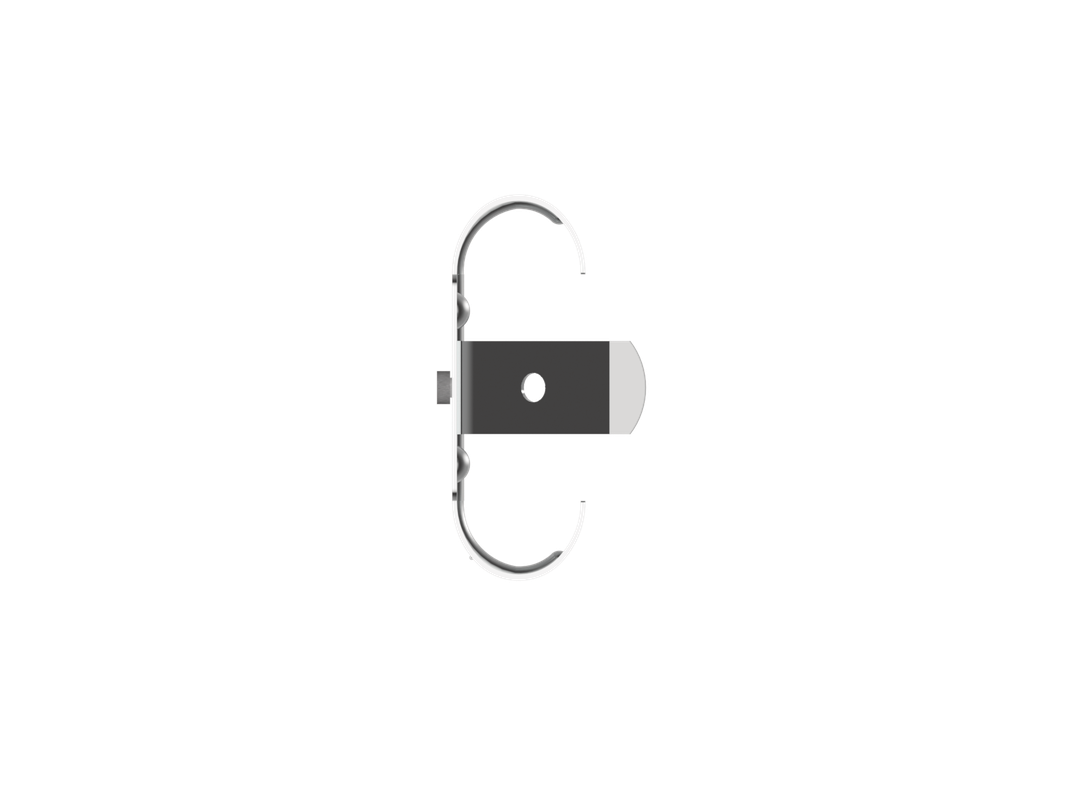

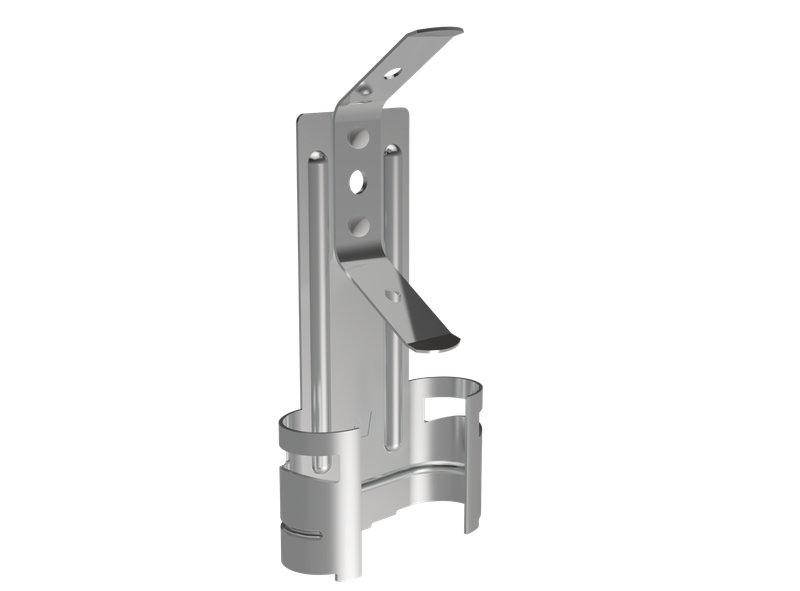

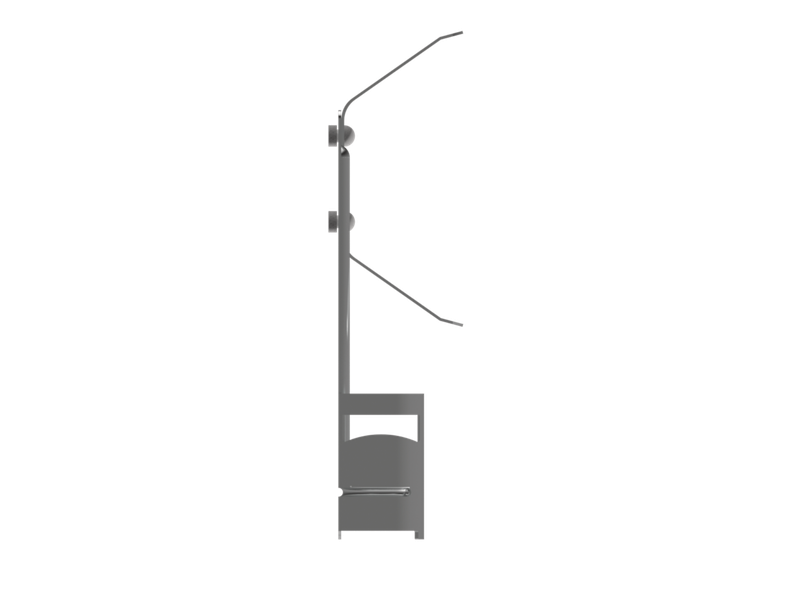

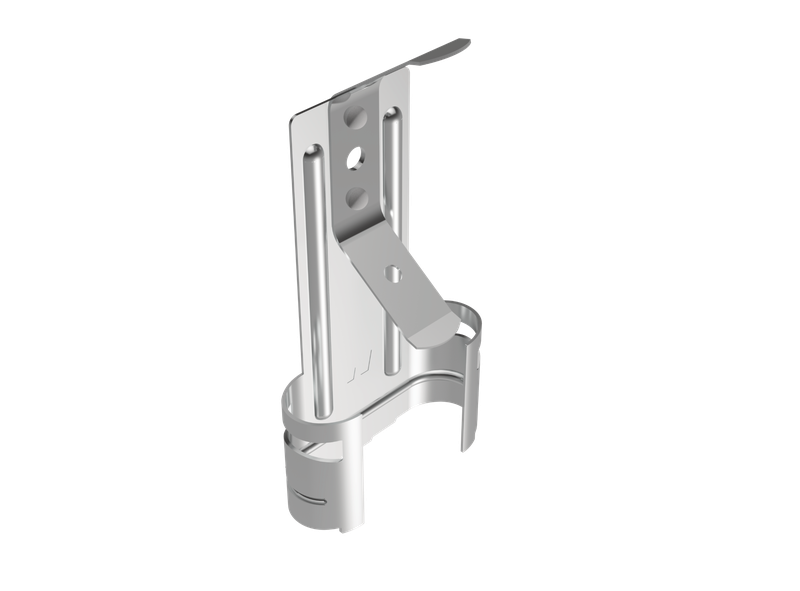

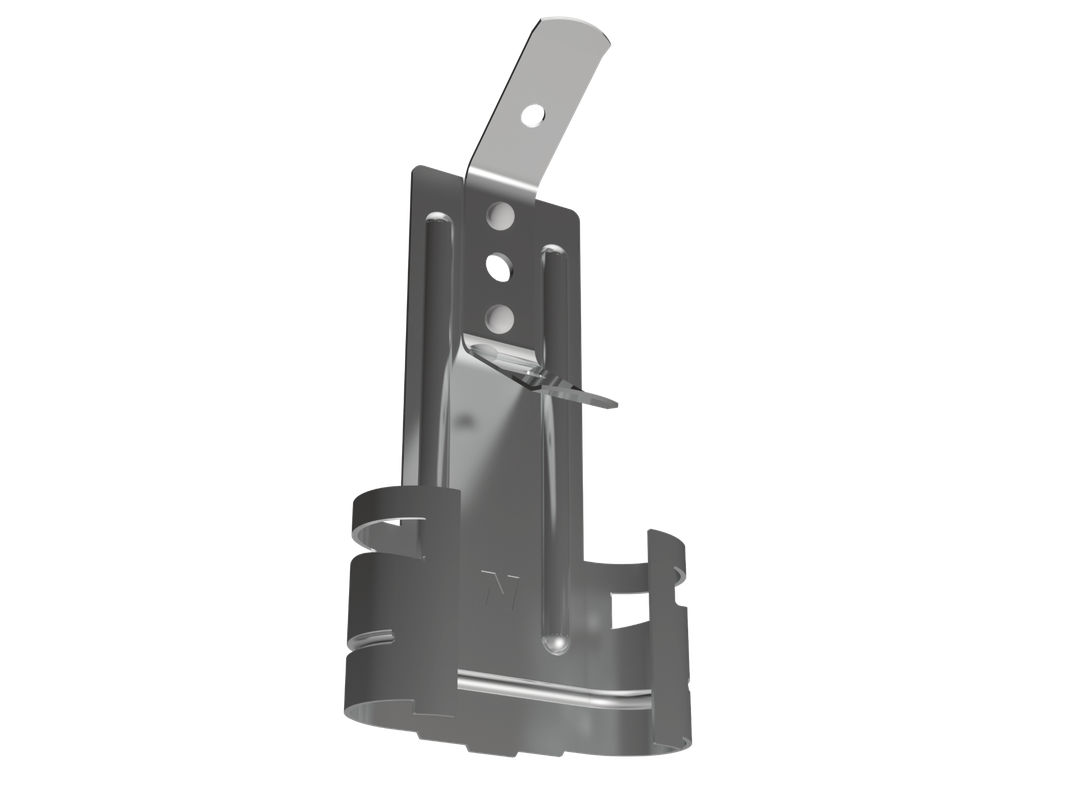

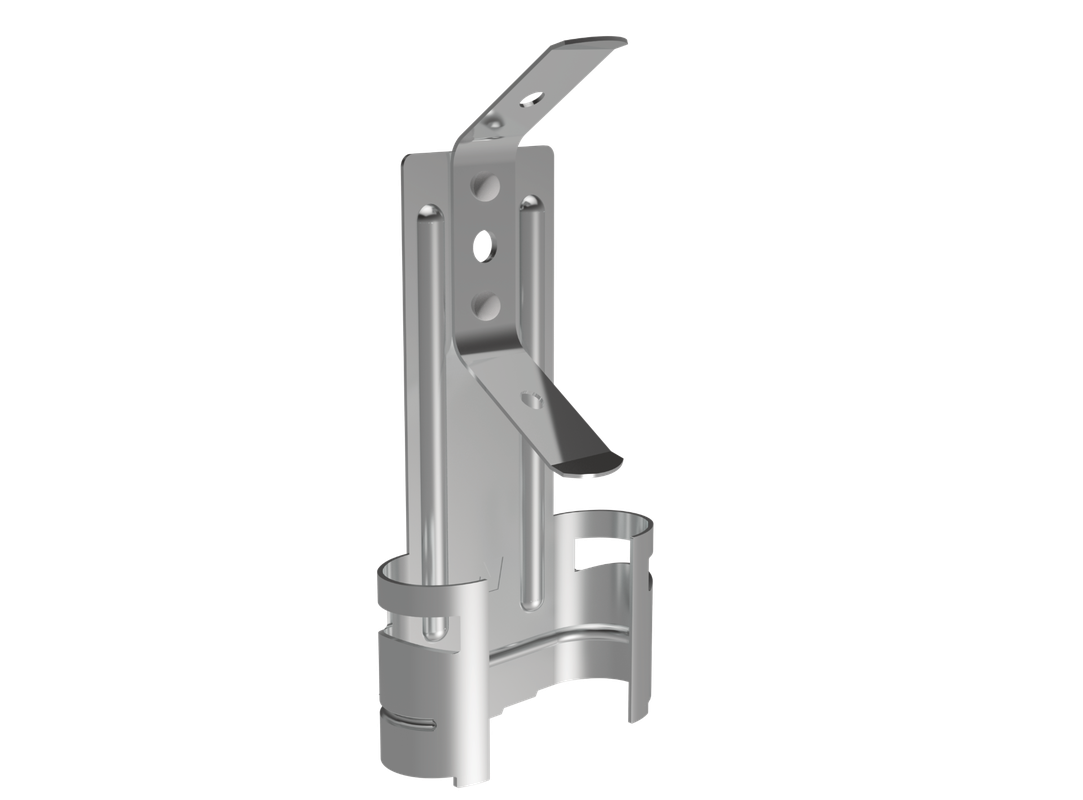

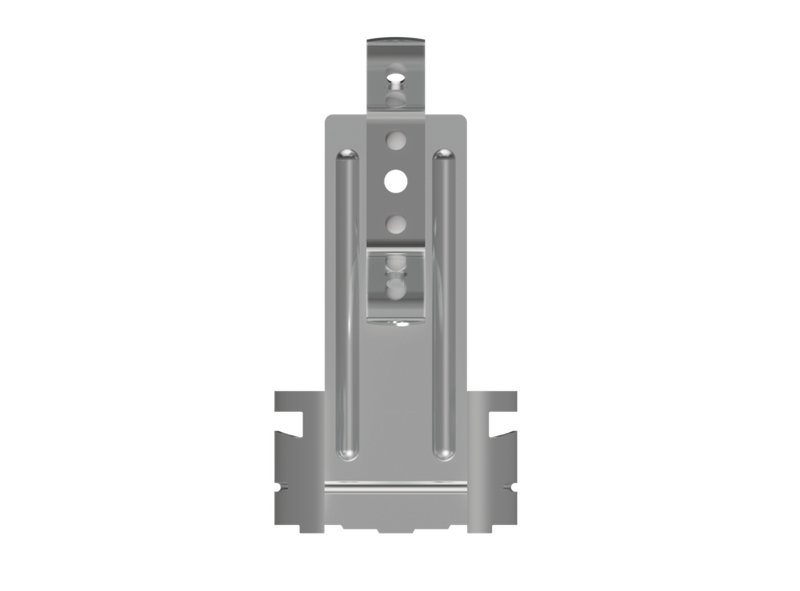

Rotary hanger with spring for mounting CD 60 profiles
Rotary hanger with a spring, made of zinc-coated 0.7 mm sheet metal. Modular product belonging to the accessories category.

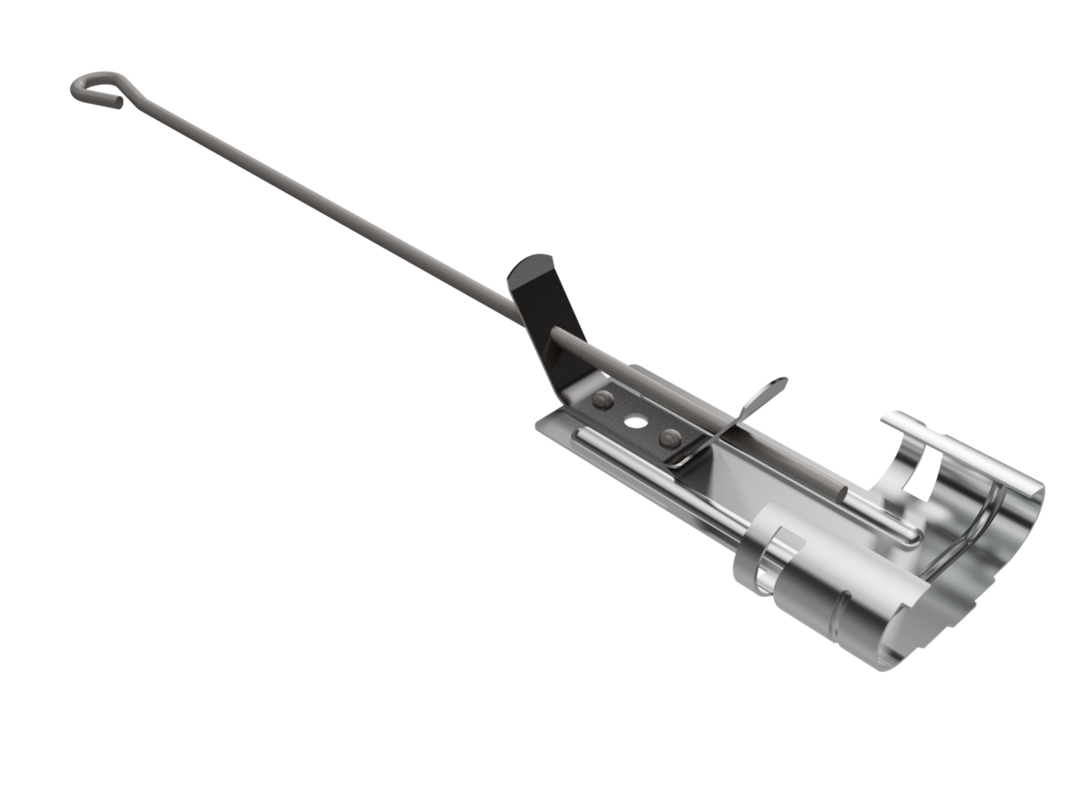

Along with the suspension wire, they make up a complete hanger for dropped ceilings. Metal framing component in accordance with PN-EN 13964:2014-05.
Designated for indoor use as an element of a plasterboard supporting structure. Rotary hanger with a spring designated for affixing CD 60 profiles (creating a gridwork of dropped ceilings) to horizontal elements, e.g. a slab undersurface, by means of suspension wires. The hanger is snap-on fixed to profiles. With the aid of a single hanger, the gridwork can be suspended at a distance of up to 150 mm in case of a single-level gridwork and 180 mm in case of a double-level gridwork.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Safety of use. Made of 0.7 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
0.7
Type of corrosion protection
Zinc-coated steel
Durability
Class B
Reaction-to-fire performance
A1
Allowable operational load [N]
326
Failure load [N]
853
NOTES FOR GUIDANCE
The hanger requires indoor storage.
Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s recommendations and design guidelines.
Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
