Description
Wall-mounted profile made of zinc-coated 0.6 mm sheet metal.
Available in 28 mm width.

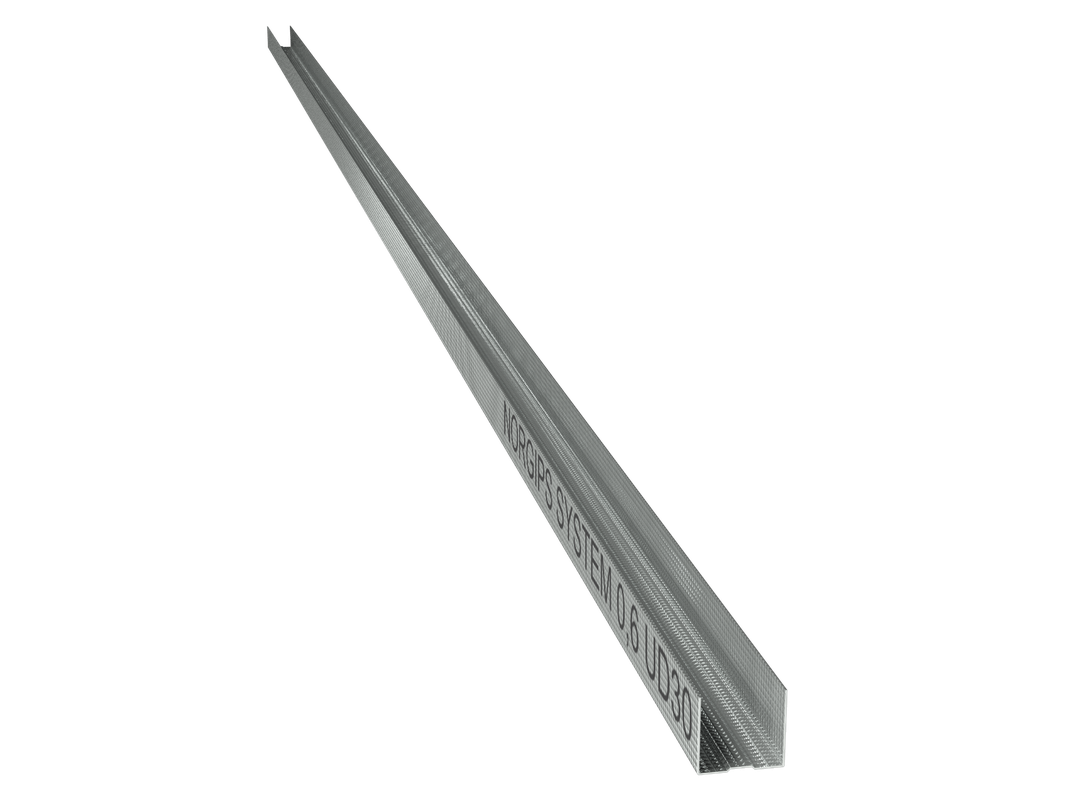

Wall-mounted profile
Wall-mounted profile made of zinc-coated 0.6 mm sheet metal.
Available in 28 mm width.
Intended for execution of suspended ceilings, attic linings and wall claddings. In combination with CD 60 ceiling profiles, it forms a structure for NORGIPS dry lining systems.
The profiles made of sheet metal with a thickness of 0.6 mm are designated for systems with a declared fire resistance rating up to REI 120. Designated for use with accessories providing great arrangement options for the executed linings.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Greater rigidity. Less risk of cracks - made of 0.6 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Sound insulation. Recommended for sound insulation systems.
Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [N/mm2]
285
Reaction-to-fire performance
A1
Purpose / intended use
For plasterboard lining / indoor use
Sheet metal type
DX51D
Sheet metal gauge [mm]
0,6
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult the design engineer.
ADDITIONAL INFORMATION
Applicable standards: PN-EN 13964:2014-05 Suspended ceilings – Requirements and test methods; PN-EN ISO 12944-2:2018-02 Paints and varnishes – Corrosion protection of steel structures by protective paint systems – Part 2: Classification of environments.
