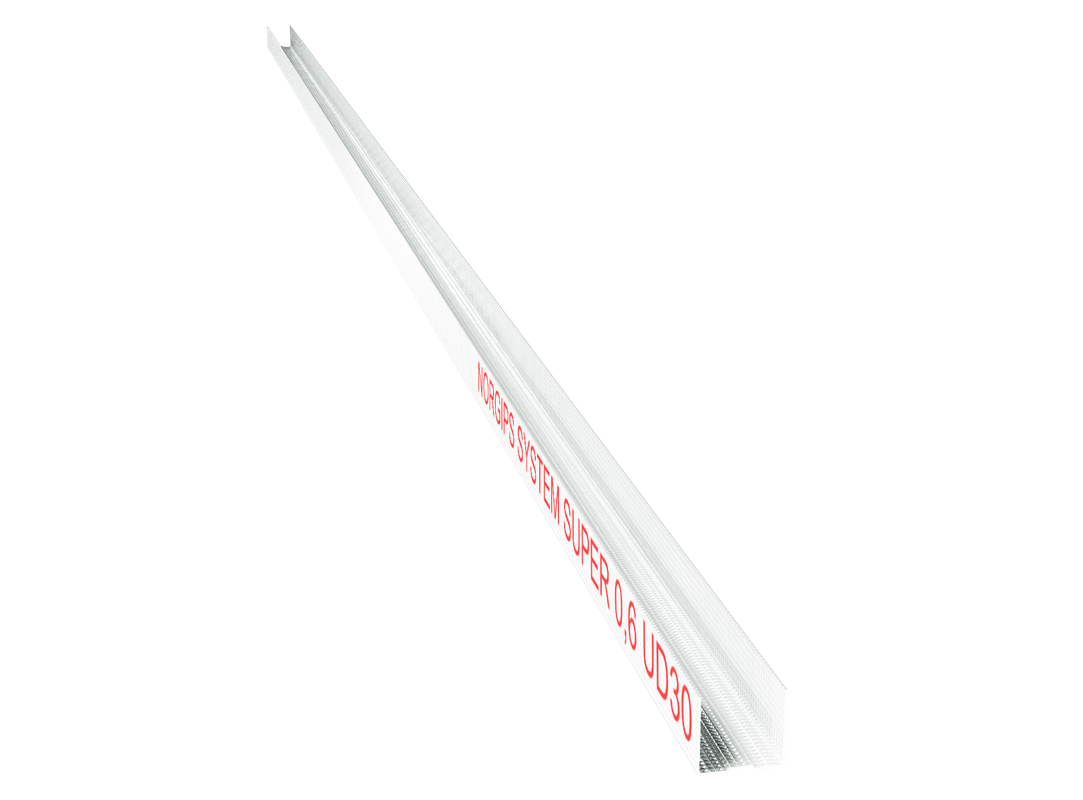

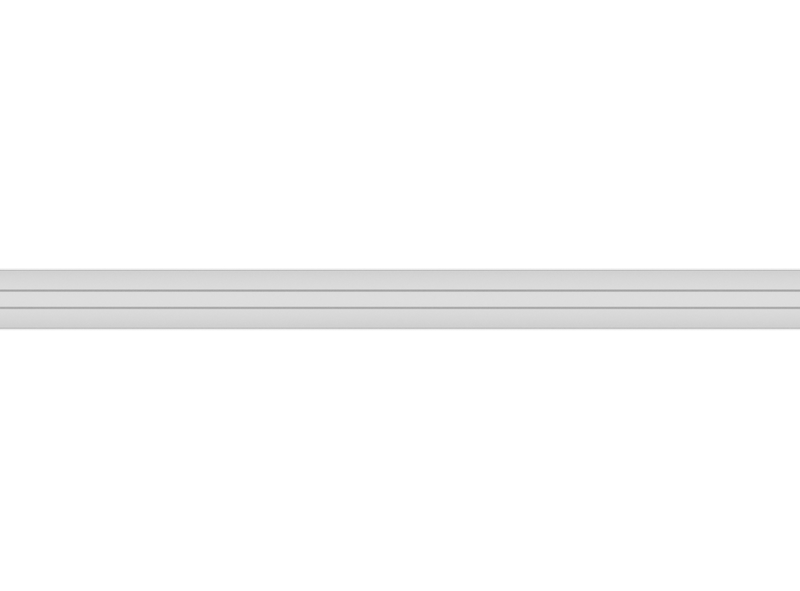

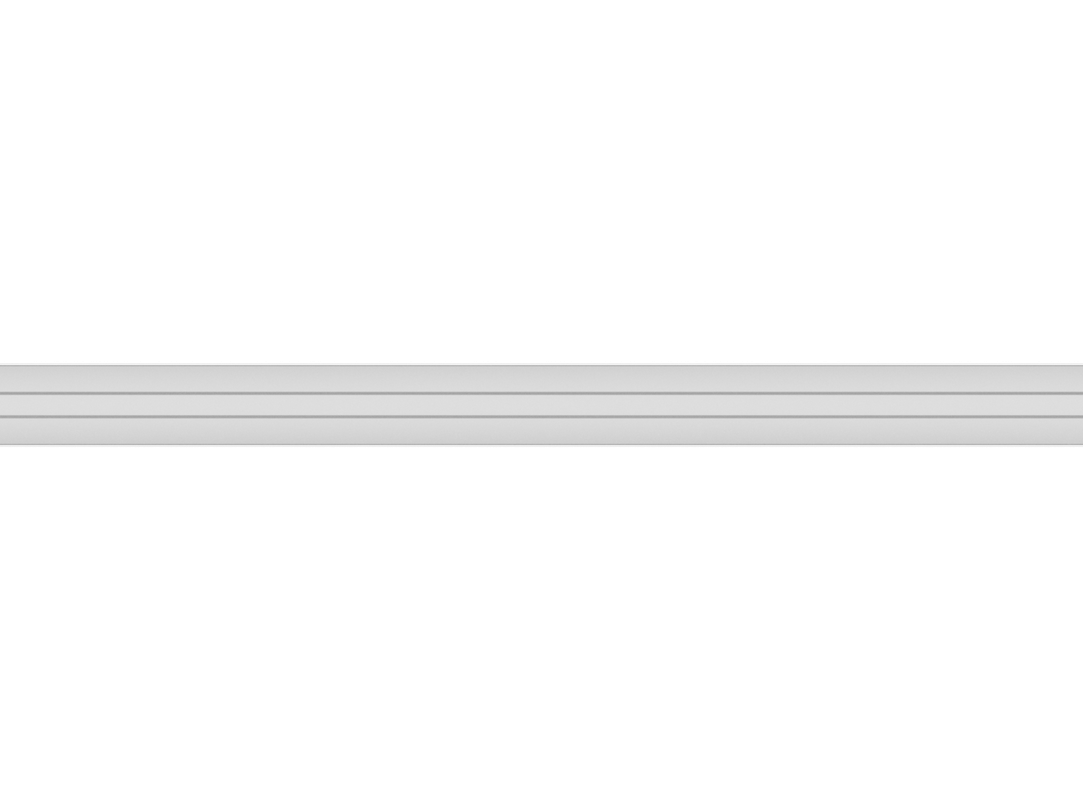

UD 30 SUPER PROFILE made of 0.6 mm sheet metal (C3)
SUPER profiles with 0.6 mm sheet thickness (C3)

UD 30 SUPER PROFILE made of 0.6 mm sheet metal (C3)

Wall-mounted profile

UD 30 SUPER PROFILE made of 0.6 mm sheet metal (C3)
UD 30 SUPER PROFILE made of 0.6 mm sheet metal (C3)
UD 30 SUPER PROFILE made of 0.6 mm sheet metal (C3)
Description

Wall-mounted profile made of zinc-coated 0.6 mm sheet metal and additionally coated with polyester paint ensuring improved protection against corrosion. Available in 60 mm width.

As a result of tests performed at the Institute of Construction Technology, the Norgips SUPER profiles were rated to corrosivity category C3. As a consequence, the profiles Norgips SUPER can be used in rooms with high air humidity, such as bathrooms, saunas,
pools, as well as in industrial buildings, such as food processing plants, laundries, breweries, dairies.

Application:

Intended for execution of suspended ceilings, attic linings and wall claddings. In combination with CD 60 ceiling profiles, it forms a structure for NORGIPS dry lining systems. Suitable for executing linings in rooms with increased humidity, such as bathrooms, saunas, pools, etc. The profiles made of sheet metal with a thickness of 0.6 mm are designated for systems with a declared fire resistance rating up to REI 120. Designated for use with accessories providing great arrangement options for the executed linings.

Advantages:
Advantage

Modularity. Tested as a part of NORGIPS plasterboard lining systems.

Advantage

Humidity resistance. Atmospheric corrosivity category C3 (rooms with increased humidity).

Advantage

Greater rigidity. Less risk of cracks - made of 0.6 mm sheet metal.

Advantage

Greater rigidity. Less risk of cracks - made of 0.6 mm sheet metal.

Advantage

Sound insulation. Recommended for sound insulation systems.

Advantage

Reliable fastening of screws on the profile. Fixing to 0.6 mm sheet metal.

Advantage

Profile designations. To facilitate the product identification, designations are placed directly on the profiles.

Technical parameters:

Tensile strength [N/mm2]

285

Reaction-to-fire performance

A1

Effective load of a single profile at mean deflection M=0.8 mm [N]

101

Durability

Class B

Resistance to neutral salt spray [500 h]

C3

Resistance to condensing water steam [1000 h]

C3

Resistant to distilled water, acids and bases

C3

Purpose / intended use

For linings constructed of plasterboard, gypsum board, gypsum fibreboard, cement board, OSB board, etc.

Sheet metal type

DX51D

Sheet metal gauge [mm]

0,6

Zinc-coating

Z275

Atmospheric corrosivity category / type of corrosion protection

C3 / SP25 organic coating

Dimensions and packaging:
Length [mm]
Large bundle [pcs.]
Small bundle [pcs.]
Unit weight [kg/m]
2600
200
20
0,326
3000
200
20
0,326
4000
200
20
0,326

NOTES FOR GUIDANCE

Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult the design engineer. The profiles are suitable for outdoor use, in environment category C3.

ADDITIONAL INFORMATION

Applicable standards: PN-EN 13964:2014-05 Suspended ceilings – Requirements and test methods; PN-EN ISO 9227:2017-06 Corrosion tests in artificial atmospheres – Salt spray tests; PN-EN ISO 6270-1:2002 Paints and varnishes. Determination of resistance to humidity condensation – Part 1: Condensation (single-sided
exposure); PN-EN ISO 2812-1: 2008-01 Paints and varnishes – Determination of resistance to liquids – Part 1: Immersion in liquids other than water.

Files downloadable

Download To file
Technical sheet KT - UD 30 SUPER PROFILE made of 0.6 mm sheet metal (C3)
