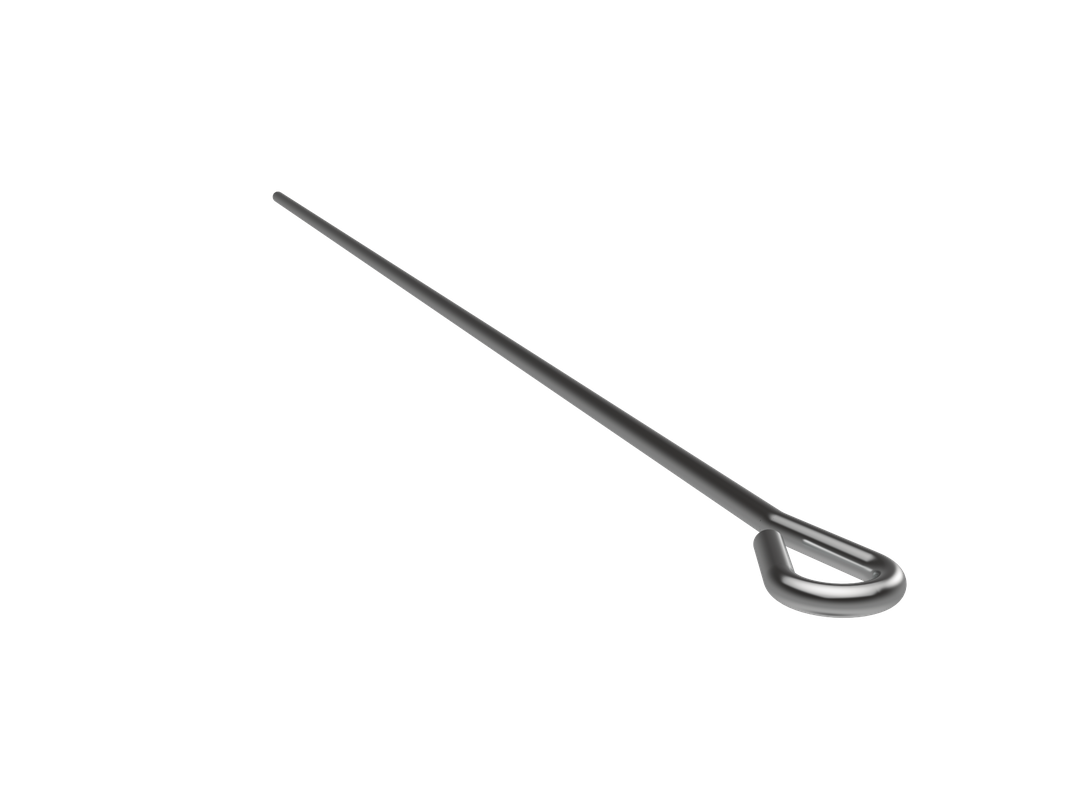

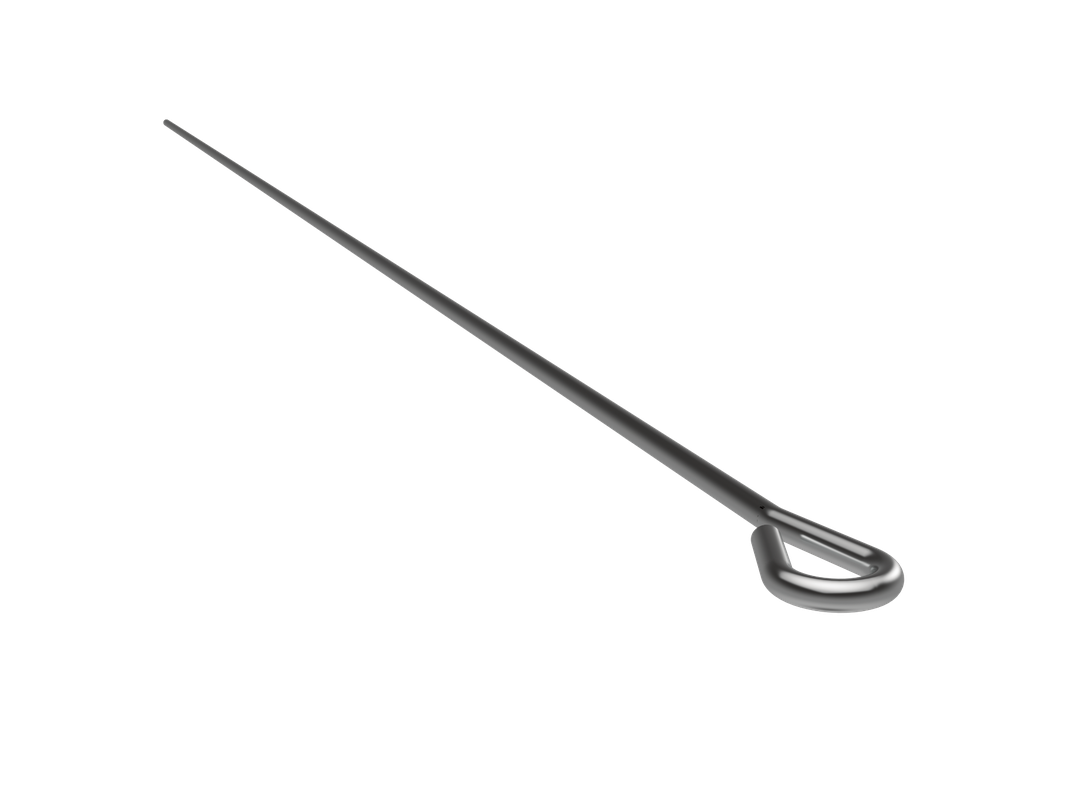

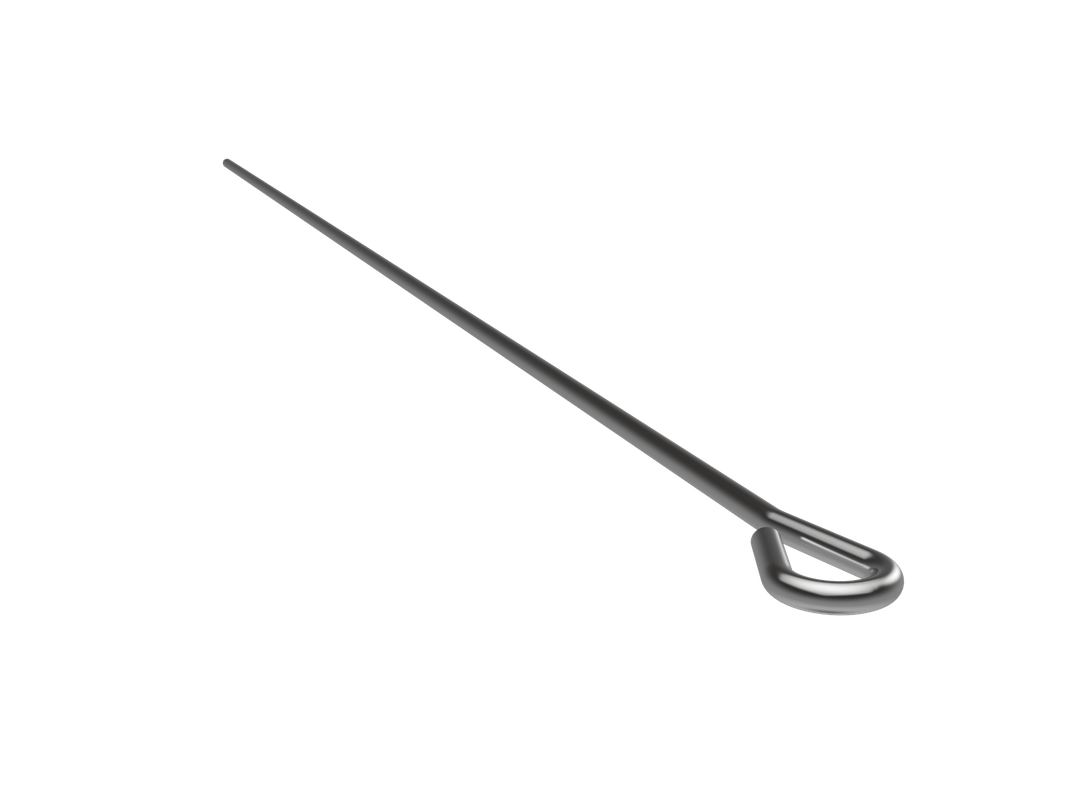

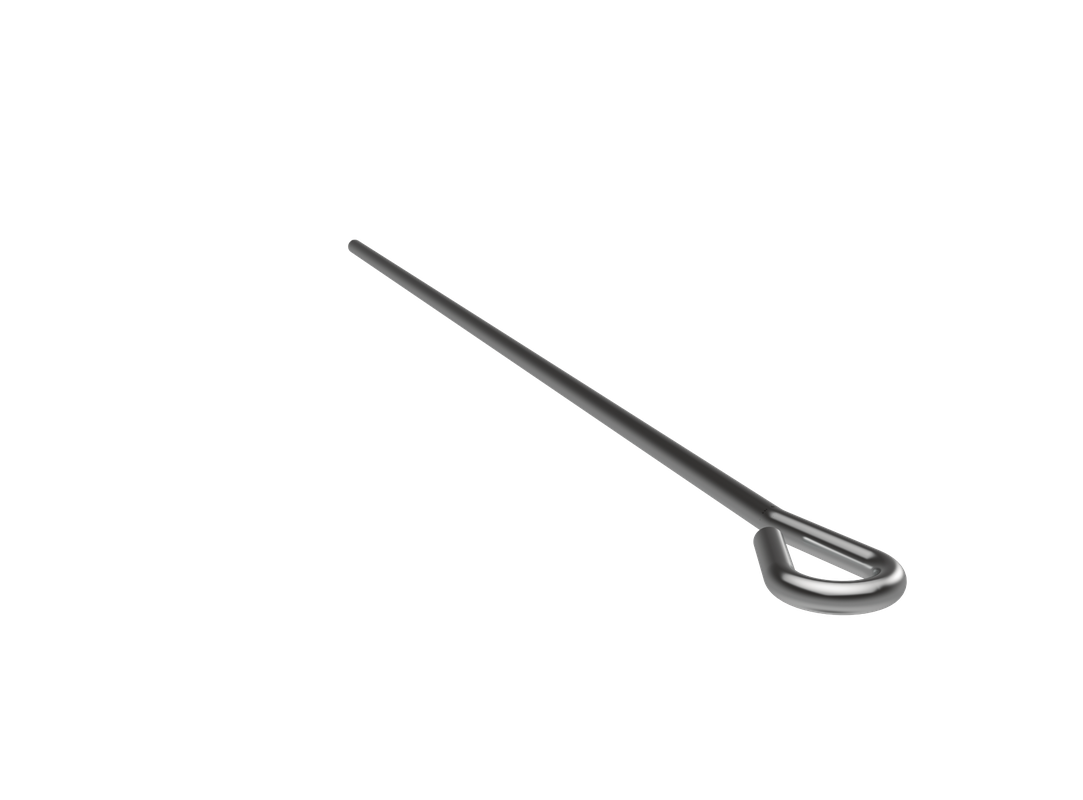

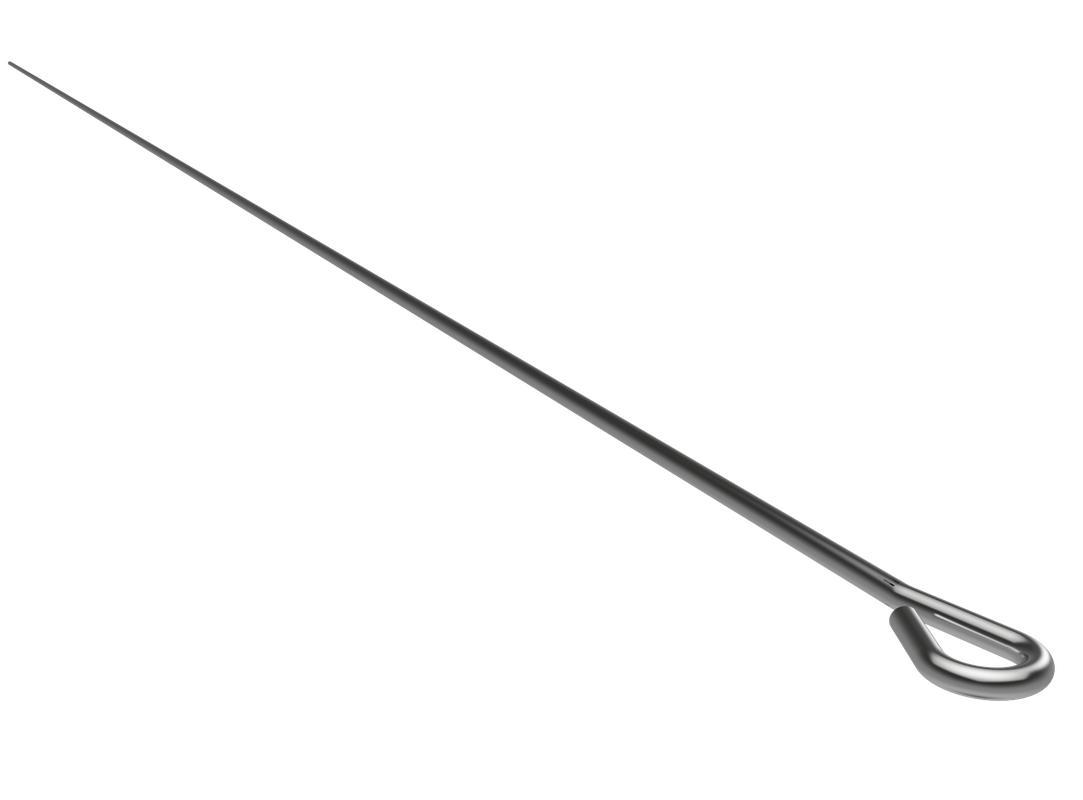

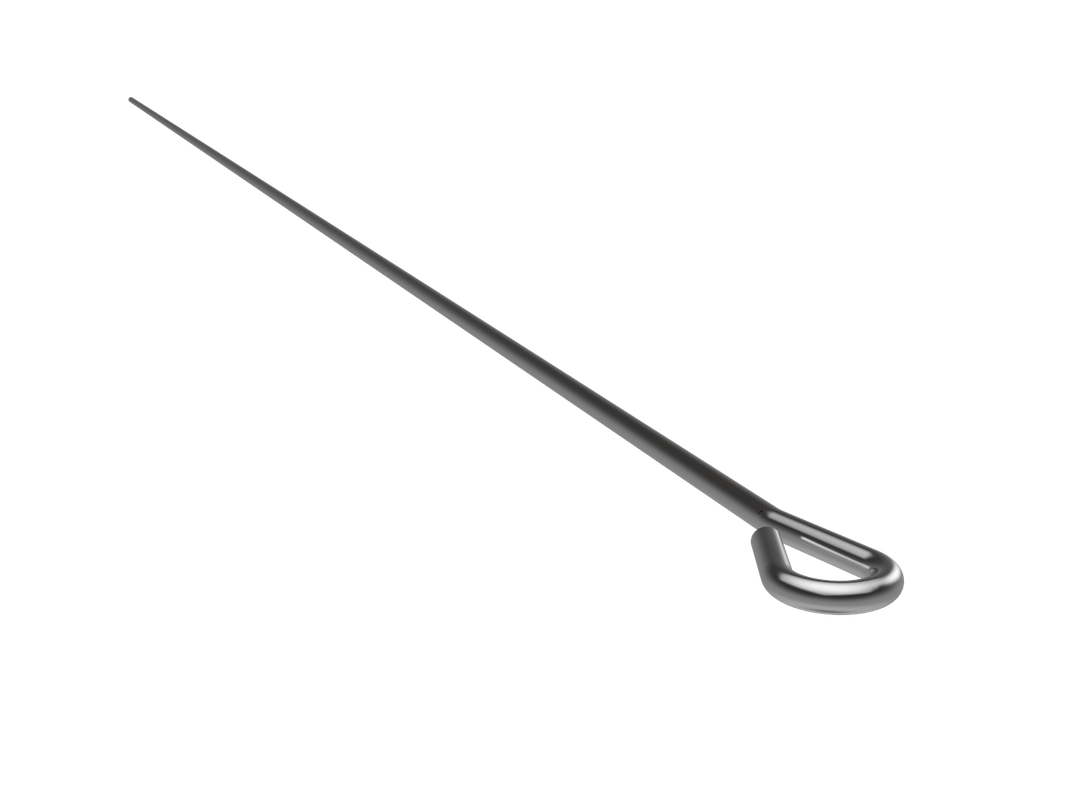

Suspension wire designated for dropped ceilings. Clamp-on mounted to rotary hangers with spring or anchor hangers.
The wire can be extended using a double-hook hanger or cut to length. Modular product belonging to the accessories category.
Metal framing component in accordance with PN-EN 13964:2014-05.

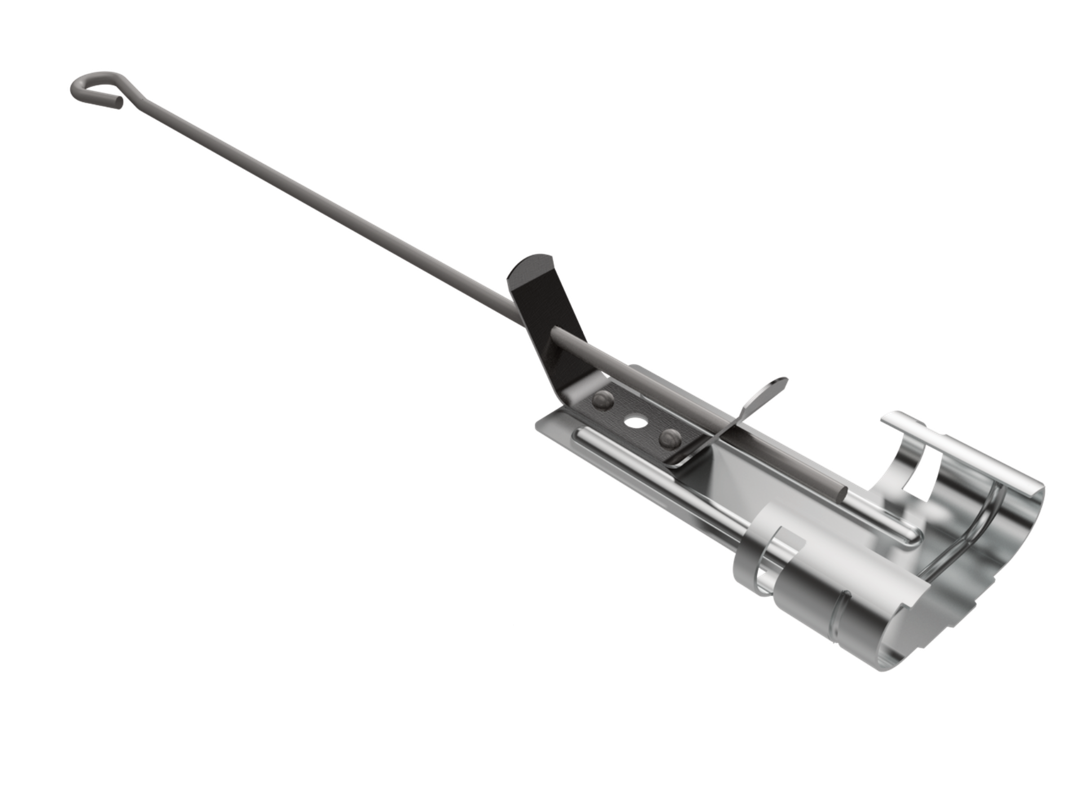

Designated for indoor use as an element of a plasterboard supporting structure. Along with the hanger with spring, they make up a complete hanger for dropped ceilings. The wire should be affixed to the ceiling with the use of appropriate mechanical fasteners adapted to the given substrate (slab).
In the case of systems with declared resistance, steel fasteners or fasteners with an appropriate certificate should be used.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Safety of use. Made of 0.7 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
Steel
Wire nominal diameter [mm]
4
Type of corrosion protection
Zinc-coated steel
Durability
Class B
Reaction-to-fire performance
A1
Tensile strength [N/mm2]
509
Breaking force [N]
6215
NOTES FOR GUIDANCE
The fastener require indoor storage. Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s recommendations and design guidelines.
Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
