Description

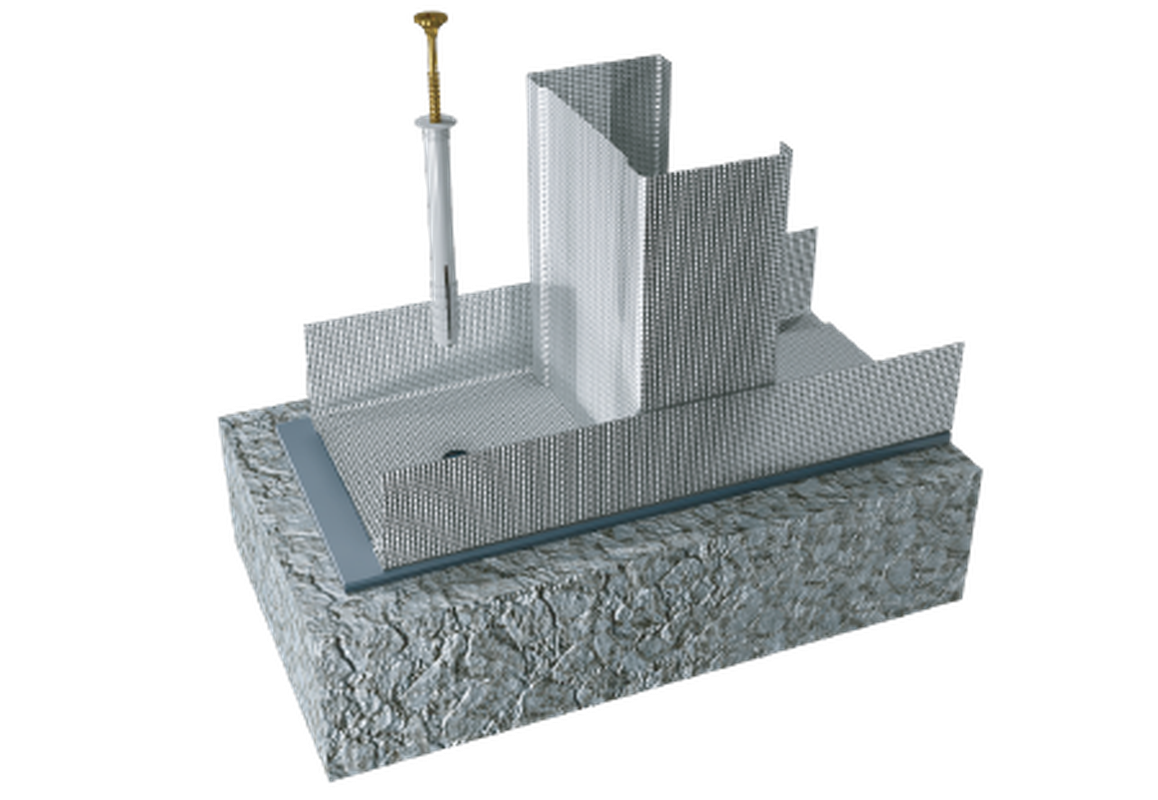

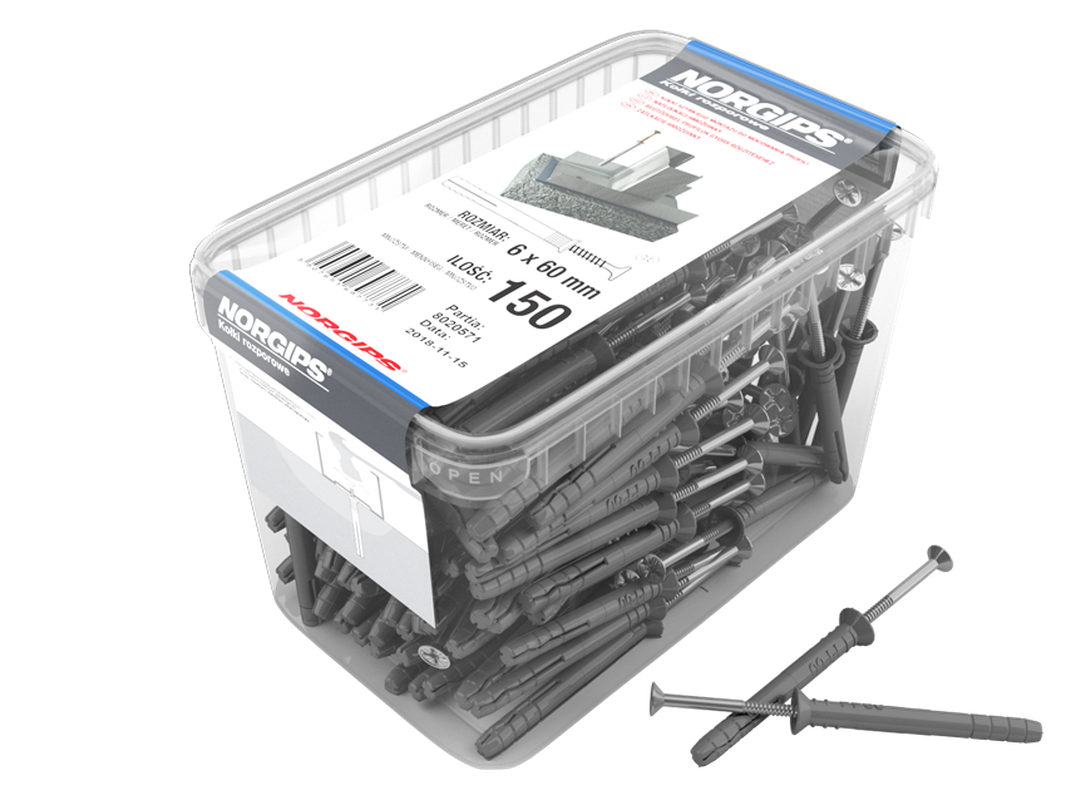

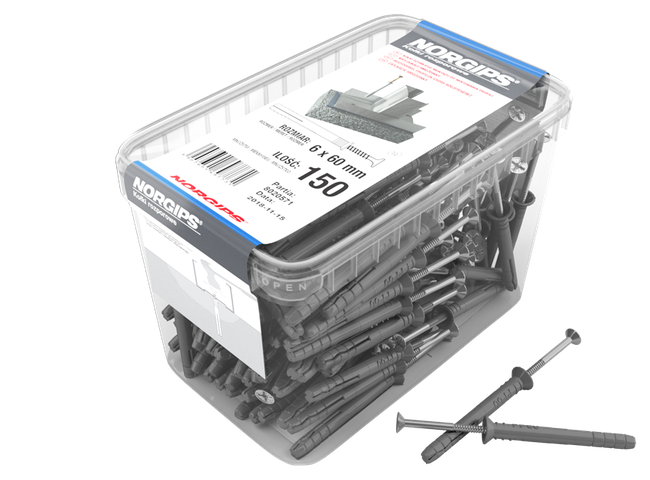

These quick to install rawlplugs are intended for affixing UW, CW and UD profiles to walls and ceilings made of solid materials such as concrete, ceramic or silicate bricks.
These quick to install rawlplugs are intended for affixing UW, CW and UD profiles to walls and ceilings made of solid materials such as concrete, ceramic or silicate bricks.
Designated for affixing structural elements of dry lining systems to the building structure, in indoor applications. Designated for partition walls, wall claddings, curtain walls, suspended ceilings, ceiling linings, attic linings and other lining systems.
Modularity. Tested as a part of NORGIPS dry lining systems.
Corrosion-protected. Phosphate-coated sheet metal screws.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Profile marking. To facilitate the product identification, designations are placed directly on the profiles.
Hole diameter [mm]
6
Fastener type
SMG
Screw
Carbon steel S235J RG2
Plug
Polypropylene
Effective anchorage length [mm]
30
Unfactored load-bearing capacity [kN]
0.1
National Technical Assessment
ITB-KOT-2017/0116
NOTES FOR GUIDANCE
Store the rawlplugs indoors. Do not expose directly to weathering effects. Use in accordance with manufacturer’s recommendations and design guidelines. Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
National Technical Assessment ITB-KOT-2017/0116
