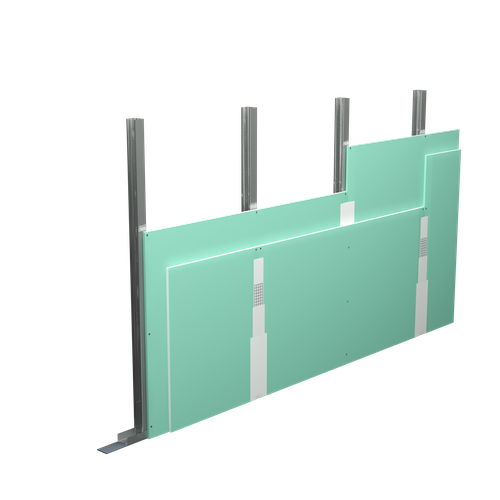

Covering wall

SO - 2x12,5 GKFI DFH2/CW 50 (W)

on a structure made of CW 50 and UW 50 profiles, double with DFH2-type GKFI boards, thickness: 12.5 mm, with optional mineral wool filling

Technical data

Fire resistance class

EI 30 (h_max=3.0 m) ¹⁾²⁾

Max height

3.0 m ¹⁾

Wall mass

22 kg/m² ³⁾

Acoustic insulation

ΔR_W=up to 12 dB ⁴⁾

The above-mentioned parameters apply to a partition made of sheet metal profiles with a thickness of 0.55 and 0.6 mm.

Standard

super

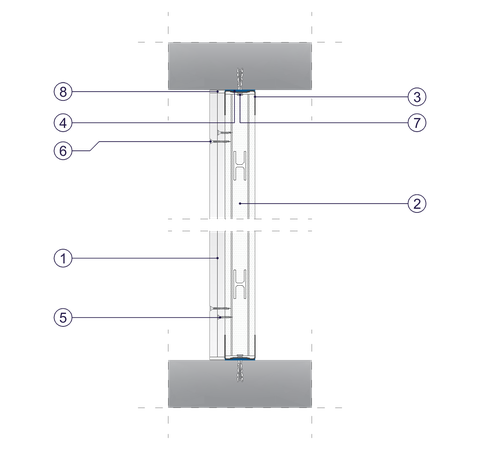

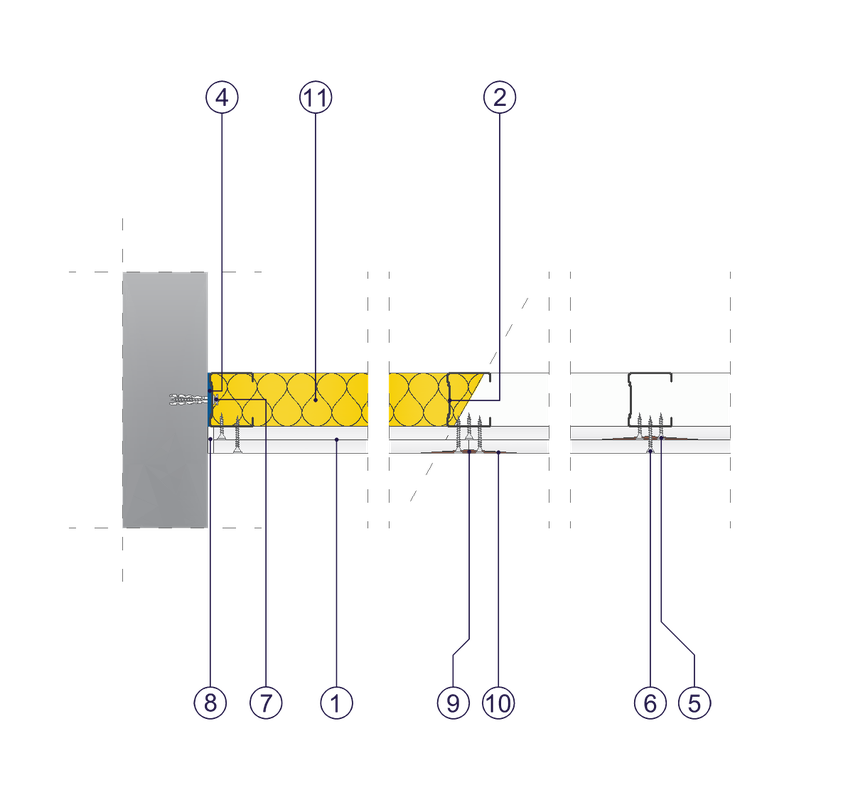

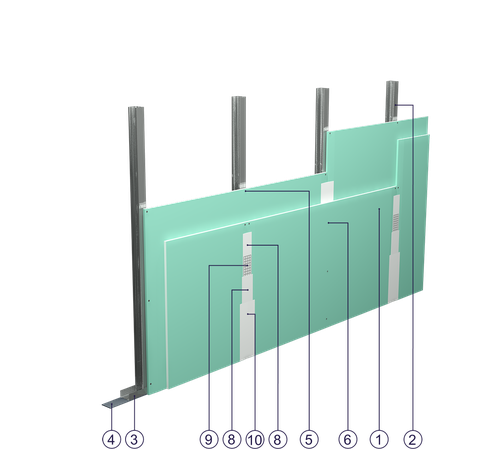

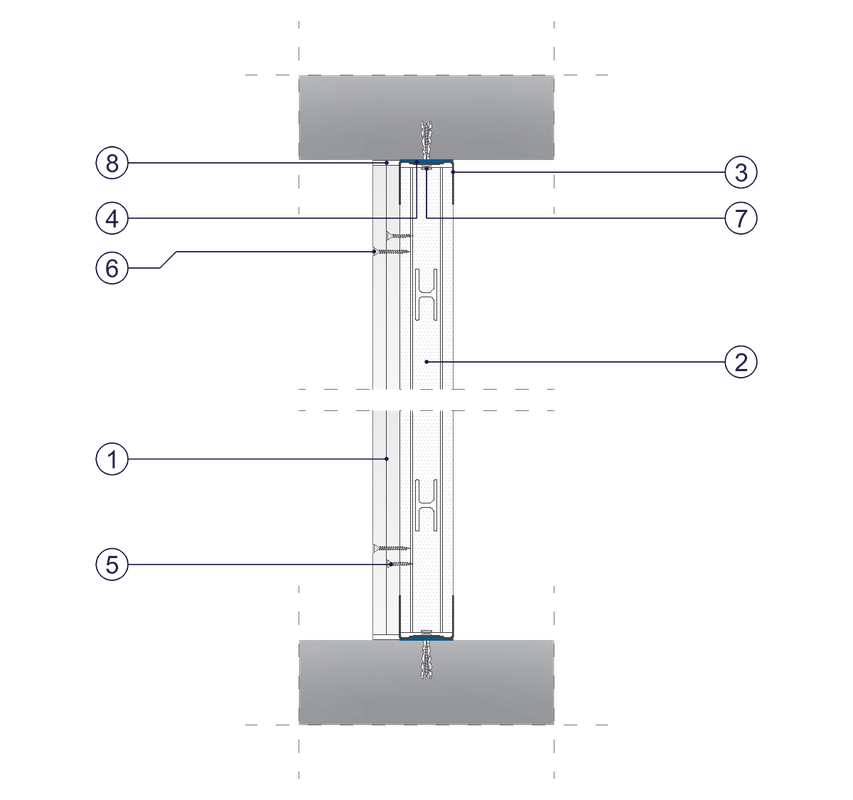

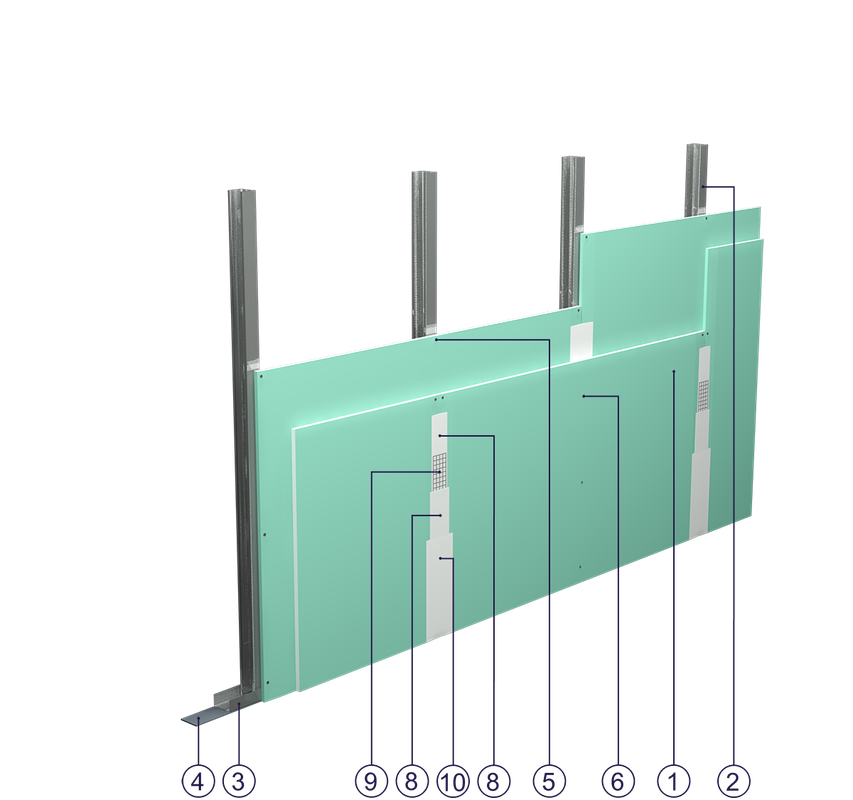

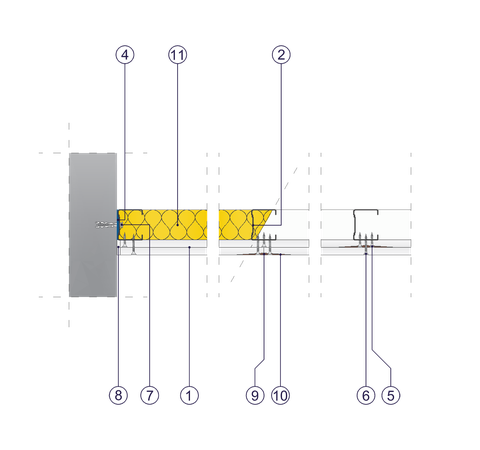

Covering wall elements

Norgips S GKFI type DFH2 gypsum plasterboard , thickness: 12.5 mm

Norgips CW 50 profiles, max. axial spacing every 60 cm

Norgips UW 50 profiles mounted on horizontal load-bearing elements

Norgips sealing tape, width 50 mm

Norgips 3.5 x 25 mm sheet metal screws, max. spacing every 75 cm

Norgips 3.5 x 35 mm sheet metal screws, max. spacing every 25 cm

Fastening pins, min. ∅ 6 x 40 mm, max. spacing every 80 cm

Norgips Start & Finish ready-made joint compound or Norgips Start gypsum joint compound

Norgips reinforcing tape

Ready-made joint compound Norgips Extra Finish, ready-made joint compound Norgips Start & Finish, gypsum joint compound Norgips Finish

Optional mineral wool

Download To file

System datasheet SO - 2x12,5 GKFI DFH2/CW 50 (W)

The stated heights apply to constructions with a profile spacing of 600 mm. When a structure with profiles spaced every 300 or 400 mm is used, the permissible wall height increases. Contact system provider representatives for details. The stated heights apply to rooms where only a few persons are present simultaneously (e.g. rooms in flats, hotels, hospitals). In rooms where a large number of persons are present simultaneously (e.g. conference rooms, classrooms, lecture halls), the permissible height is 2.5 m.

Based on classification no. LBO-069-KZ/20

The weight specified does not include the insulation material weight.

Estimated increase in acoustic insulation effectiveness on the basis of the DIN 4109 standard

Calculator of material usage

Lining surface area m²

Material

Unit

Consumption per 1 m²

Consumption
on {total} m²

Price
per unit*

Value

Value of materials per 1m2 of wall
:

{get_calculation_per_meter} PLN

Value of materials per 1m² of wall

: {get_calculation_per_meter} PLN

Total value of materials for the wall surface area

{get_total_calculation} PLN

Total value of materials for the wall surface area

: {get_total_calculation} PLN

The above material consumption standards are just estimates and do not include waste resulting from material installation. The calculation does not constitute a commercial offer within the meaning of Article 66 § 1 of the Civil Code.

^* In order to calculate the wall construction cost, enter material unit prices.

Q1 - Double filling of plasterboard joints and connections with a structural joint filler (Norgips Start & Finish or Norgips Star), sealing a reinforcing tape, covering visible fasteners with a joint filler

Q2 - Includes the Q1 scope plus filling plasterboard joints with a finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) until a smooth transition of a joint into a plasterboard surface is achieved

Q3 - Includes the Q2 scope plus filling the entire partition element (joints and cardboard) with an approx. 1 mm thick layer of finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) to level the surface, close all pores and consolidate absorptivity of filled surfaces

Project information:

Additional comments:

Save the prepared calculation:

Download To file

PDF calculator SO - 2x12,5 GKFI DFH2/CW 50 (W)

Download To file

XLS calculator SO - 2x12,5 GKFI DFH2/CW 50 (W)
