Description

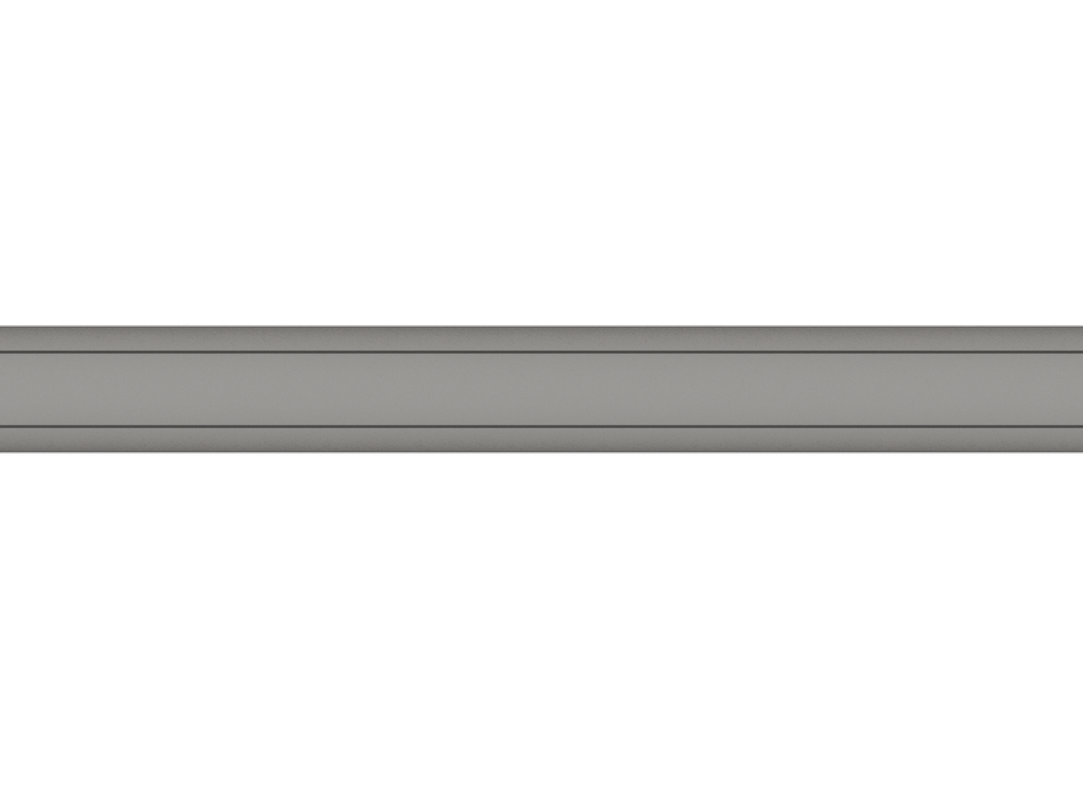

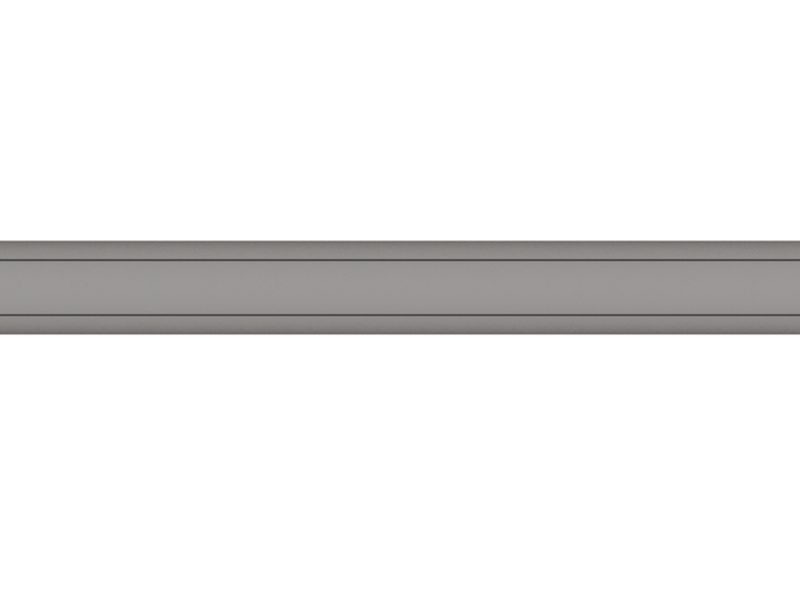

Horizontal profile made of zinc-coated 0.6 mm sheet metal.
Horizontal profile
Horizontal profile made of zinc-coated 0.6 mm sheet metal.
Designated for the construction of partition walls or curtain walls. In combination with CW vertical profiles, it forms a structure
for NORGIPS dry lining systems, i.e. partition walls, curtain walls.
The profiles made of sheet metal with a thickness of 0.6 mm are designated for use in systems with a declared fire resistance rating
up to REI 180 and increased sound insulation requirements, e.g. for room soundproofing.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Greater rigidity. Less risk of cracks – made of 0.6 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Sound insulation. Recommended for sound insulation systems.

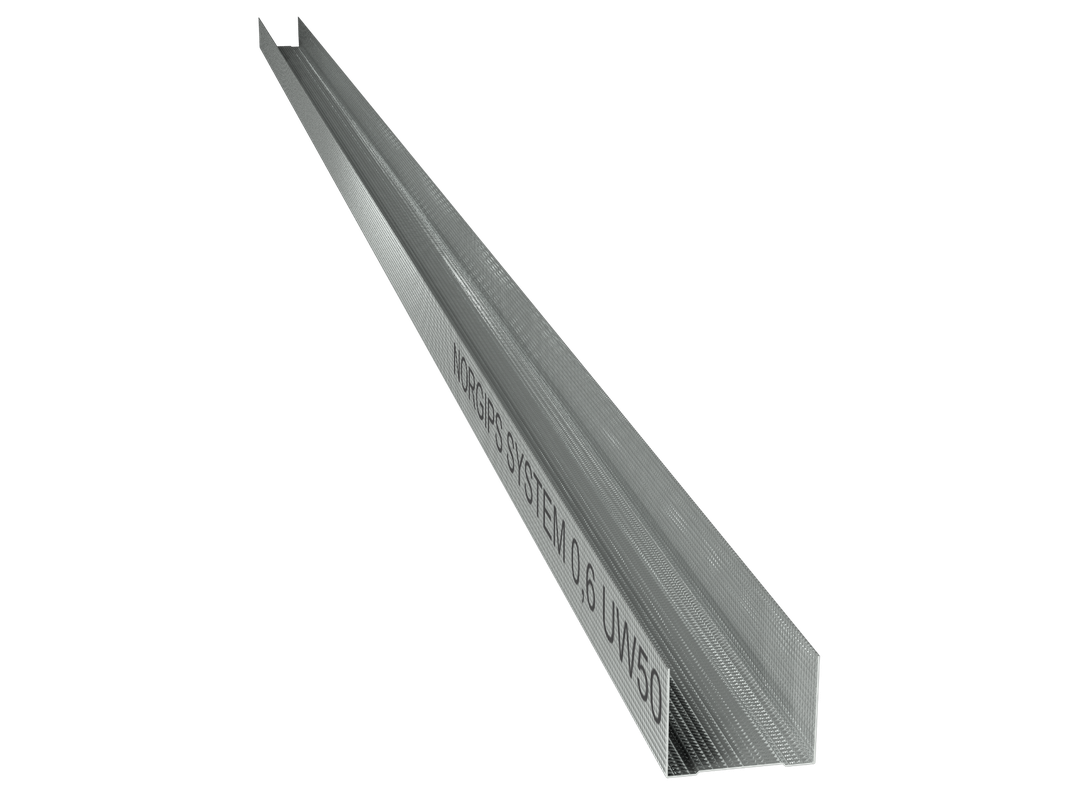

Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [N/mm2]
285
Reaction-to-fire performance
A1
Purpose / intended use
For plasterboard lining / indoor use
Sheet metal type
DX51D
Sheet metal gauge [mm]
0,6
Atmospheric corrosivity category
C1, C2
Zinc-coating
Z140
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult
the design engineer.
ADDITIONAL INFORMATION
Applicable standards: PN-EN 14195:2015 Metal framing components for gypsum board systems – Definitions, requirements and test methods; PN-EN ISO 12944-2:2018-02 Paints and varnishes – Corrosion protection of steel structures by protective paint systems – Part 2: Classification of environments Classification of environments.
