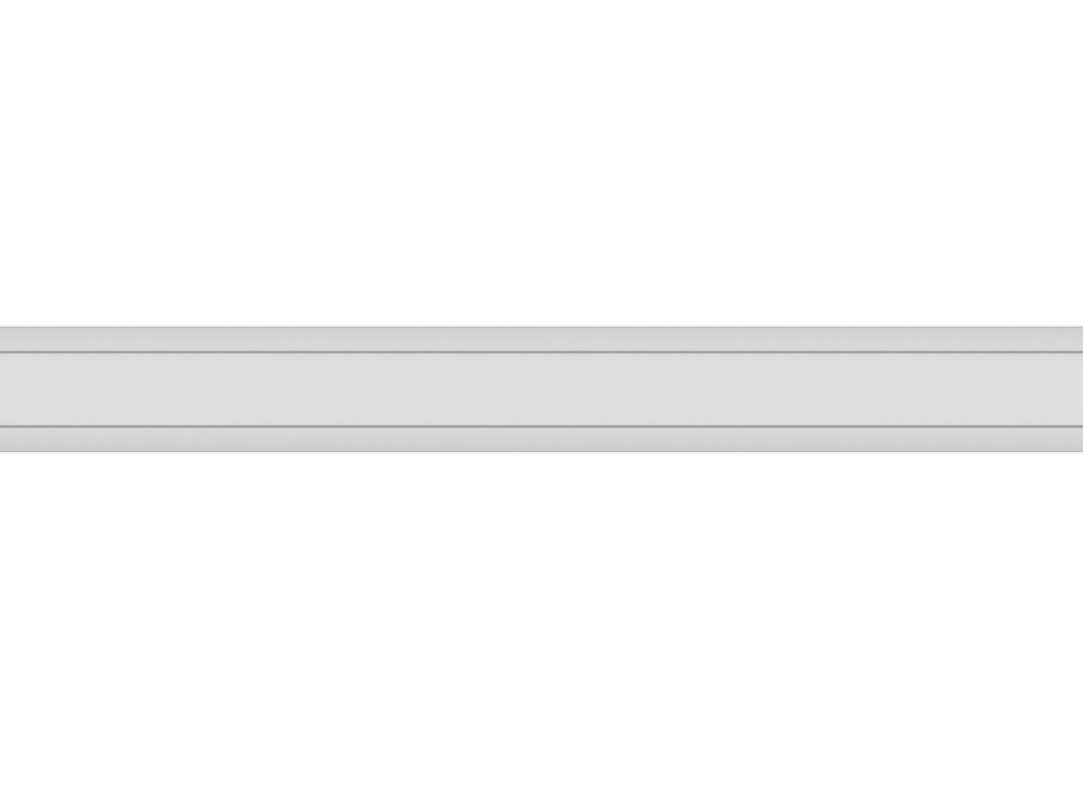

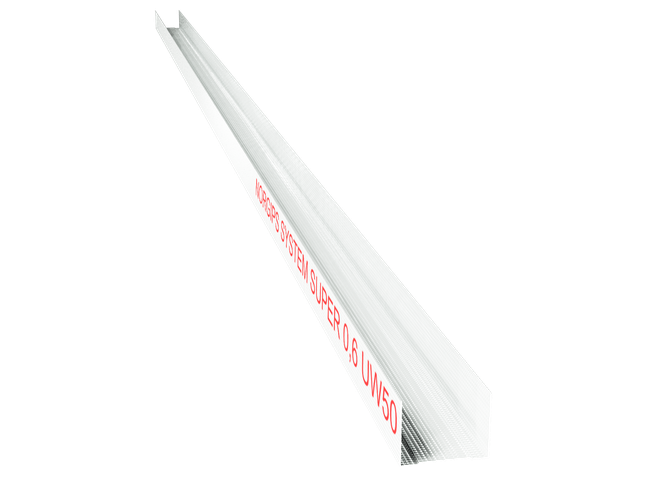

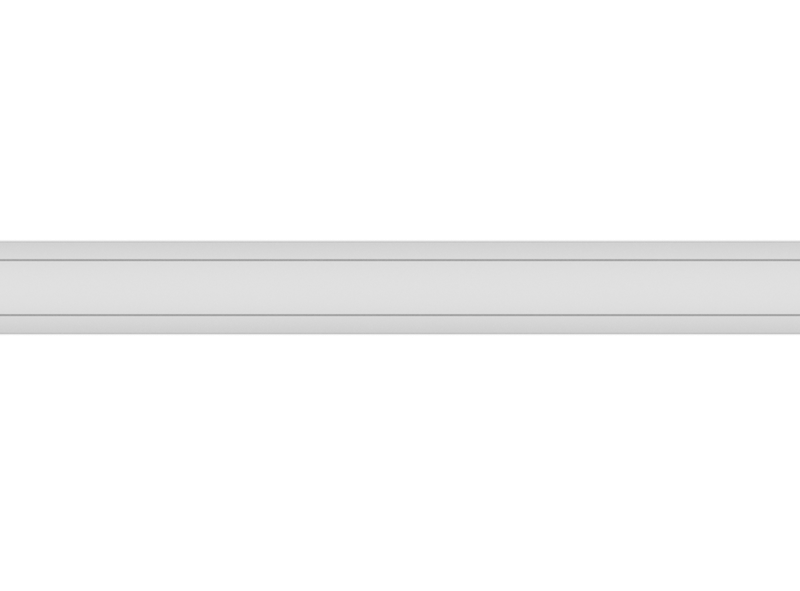

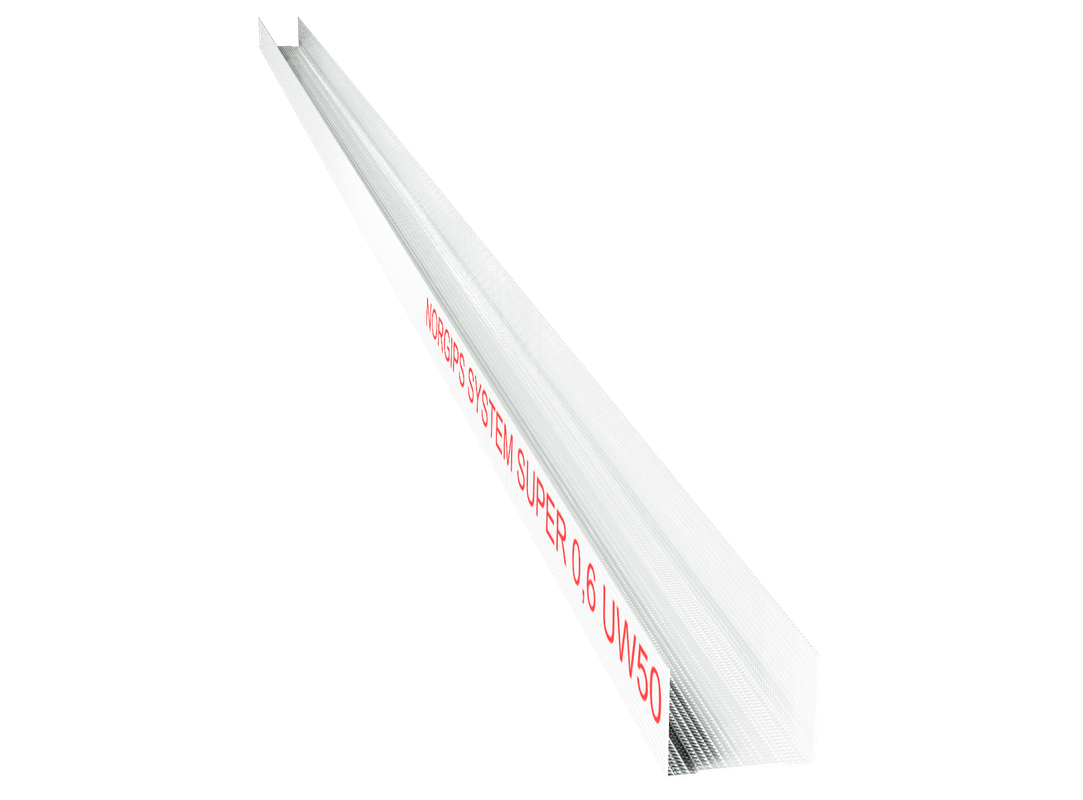

UW 50 SUPER PROFILE made of 0.6 mm sheet metal (C3)
SUPER profiles with 0.6 mm sheet thickness (C3)

UW 50 SUPER PROFILE made of 0.6 mm sheet metal (C3)

Horizontal profile

UW 50 SUPER PROFILE made of 0.6 mm sheet metal (C3)
UW 50 SUPER PROFILE made of 0.6 mm sheet metal (C3)
UW 50 SUPER PROFILE made of 0.6 mm sheet metal (C3)
Description

Horizontal (guiding) profile made of zinc-coated 0.6 mm sheet metal. Available in three width sizes: 50, 75 or 100 mm. In addition, it has a polyester paint coating ensuring an increased protection of the profiles against corrosion.

As a result of tests performed at the Institute of Construction Technology, the Norgips SUPER profiles were rated to corrosivity category C3. As a consequence, the profiles Norgips SUPER can be used in rooms with high air humidity, such as bathrooms, saunas, pools, as well as in industrial buildings, such as food processing plants, laundries, breweries, dairies.

Application:

Designated for the construction of partition walls or curtain walls. In combination with CW vertical profiles, it forms a structure for NORGIPS dry lining systems, i.e. partition walls, curtain walls. Suitable for executing linings in rooms with increased humidity, such as bathrooms, saunas, pools, etc.

The profiles made of sheet metal with a thickness of 0.6 mm are designated for use in systems with a declared fire resistance rating up to REI 180 and increased sound insulation requirements, e.g. for room soundproofing.

Advantages:
Advantage

Modularity. Tested as a part of NORGIPS plasterboard lining systems.

Advantage

Humidity resistance. Atmospheric corrosivity category C3 (rooms with increased humidity).

Advantage

Greater rigidity. Less risk of cracks – made of 0.6 mm sheet metal.

Advantage

Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.

Advantage

Sound insulation. Recommended for sound insulation systems.

Advantage

Profile designations. To facilitate the product identification, designations are placed directly on the profiles.

Technical parameters:

Tensile strength [N/mm2]

285

Reaction-to-fire performance

A1

Resistance to neutral salt spray [500 h]

C3

Resistance to condensing water steam [1000 h]

C3

Resistant to distilled water, acids and bases

C3

Purpose / intended use

For linings constructed of plasterboard, gypsum board, gypsum fibreboard, cement board, OSB board, etc.

Sheet metal type

DX51D

Sheet metal gauge [mm]

0,6

Zinc-coating

Z275

Atmospheric corrosivity category / type of corrosion protection

C3 / SP25 organic coating

Dimensions and packaging:
Length [mm]
Large bundle [pcs.]
Small bundle [pcs.]
Unit weight [kg/m]
3000
200
20
0,517
4000
200
20
0,517

NOTES FOR GUIDANCE

Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult the design engineer. The profiles are suitable for outdoor use, in environment category C3.

ADDITIONAL INFORMATION

Applicable standards: PN-EN 14195:2015 Metal framing components for gypsum board systems – Definitions, requirements and test methods; PN-EN ISO 9227:2017-06 Corrosion tests in artificial atmospheres – Salt spray tests; PN-EN ISO 6270-1:2002 Paints and varnishes. Determination of resistance to humidity condensation – Part 1: Condensation (single-sided exposure); PN-EN ISO 2812-1: 2008-01 Paints and varnishes – Determination of resistance to liquids – Part 1: Immersion in liquids other than water

Files downloadable

Download To file
Technical sheet KT - UW 50 SUPER PROFILE made of 0.6 mm sheet metal (C3)
