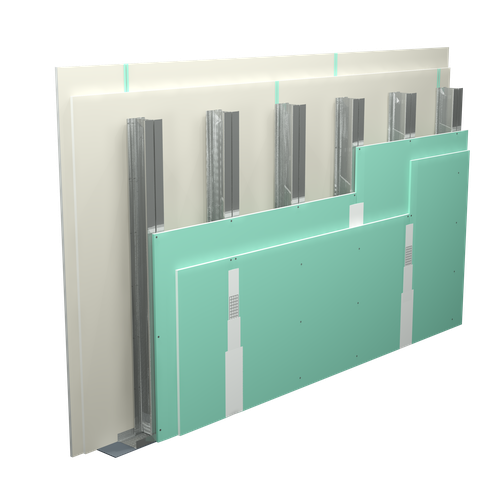

on a double structure made of CW 100 and UW 100 profiles with 400 mm spacing, double sheathing with DFH2-type GKFI boards, thickness: 12.5 mm, with optional mineral wool filling
The above-mentioned parameters apply to a partition made of sheet metal profiles with a thickness of 0.6 mm. Prior to constructing a partition, select a method of joining it with a ceiling, depending on the designed sag. Permissible variants are defined in the fire classification no. 06041/15/R24NP.
super
It provides a very stable building with the highest fire resistance, sound insulation and hardness. Increased moisture resistance.
Based on classification no. LBO-061-KZ/25E
Value of materials per 1m2 of wall
:Value of materials per 1m2 of wall
: {get_calculation_per_meter} PLNTotal value of materials for the wall surface area
:Total value of materials for the wall surface area
: {get_total_calculation} PLNThe above material consumption standards are just estimates and do not include waste resulting from material installation. The calculation does not constitute a commercial offer within the meaning of Article 66 § 1 of the Civil Code.
* In order to calculate the wall construction cost, enter material unit prices.
Q1 - Double filling of plasterboard joints and connections with a structural joint filler (Norgips Start & Finish or Norgips Star), sealing a reinforcing tape, covering visible fasteners with a joint filler
Q2 - Includes the Q1 scope plus filling plasterboard joints with a finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) until a smooth transition of a joint into a plasterboard surface is achieved
Q3 - Includes the Q2 scope plus filling the entire partition element (joints and cardboard) with an approx. 1 mm thick layer of finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) to level the surface, close all pores and consolidate absorptivity of filled surfaces
