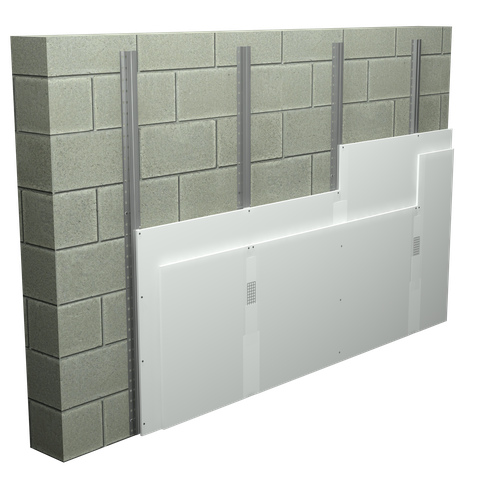

Wall cladding

OS - 2x12,5 GKB A/KAP/0,50

on top hat profile structure 0.5 mm with double sheathing with GKB type A boards , thickness: 12.5 mm without mineral wool filling

Technical data

Max height

4.0 m

Wall mass

16 kg/m²

Cladding mass

17 kg/m²

The above-mentioned parameters apply to a partition made of sheet metal profiles with a thickness of 0.5 mm.

Standard

smart

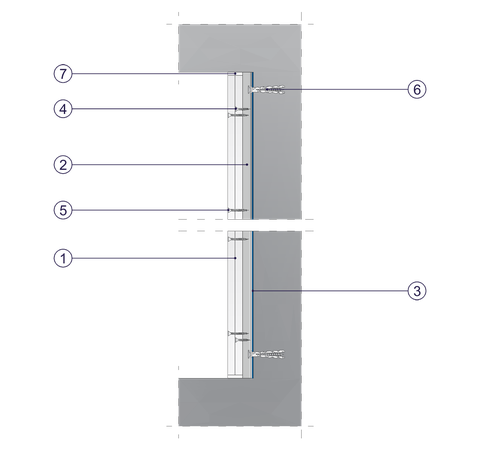

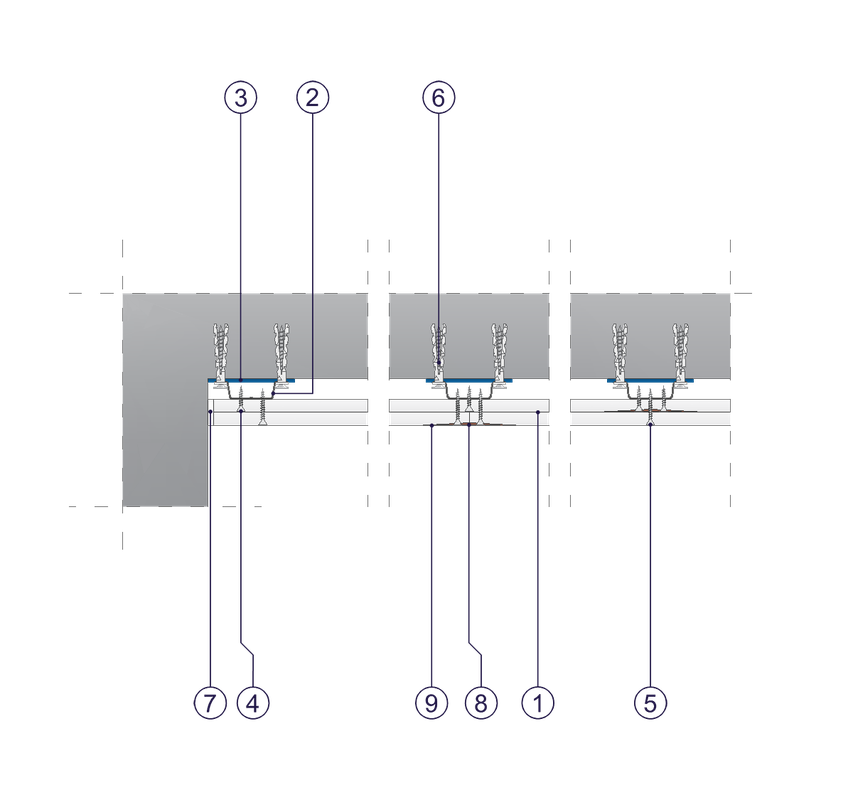

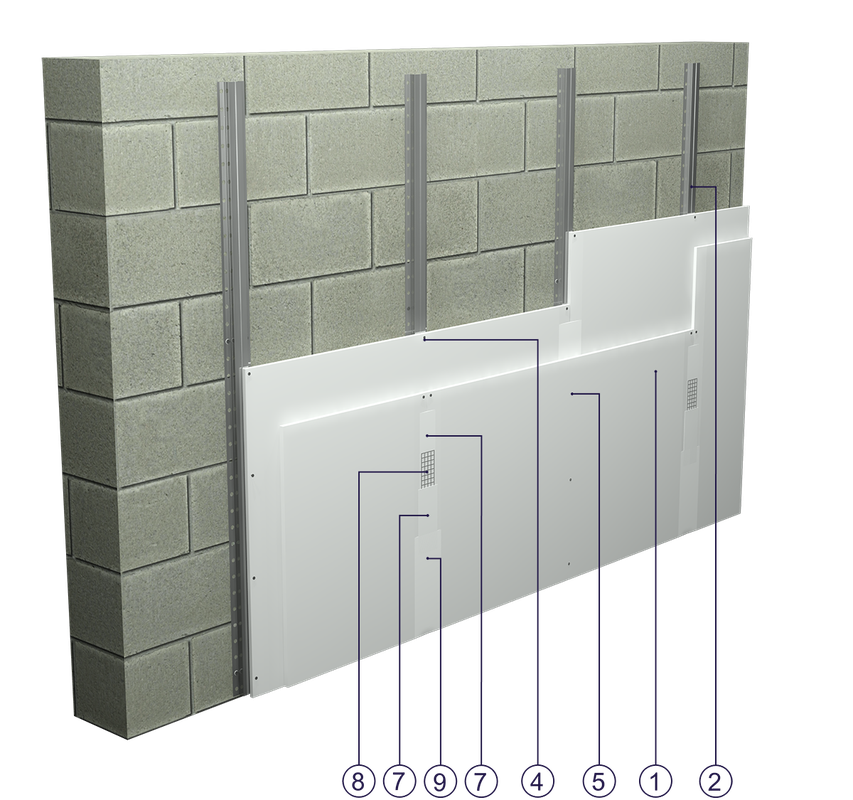

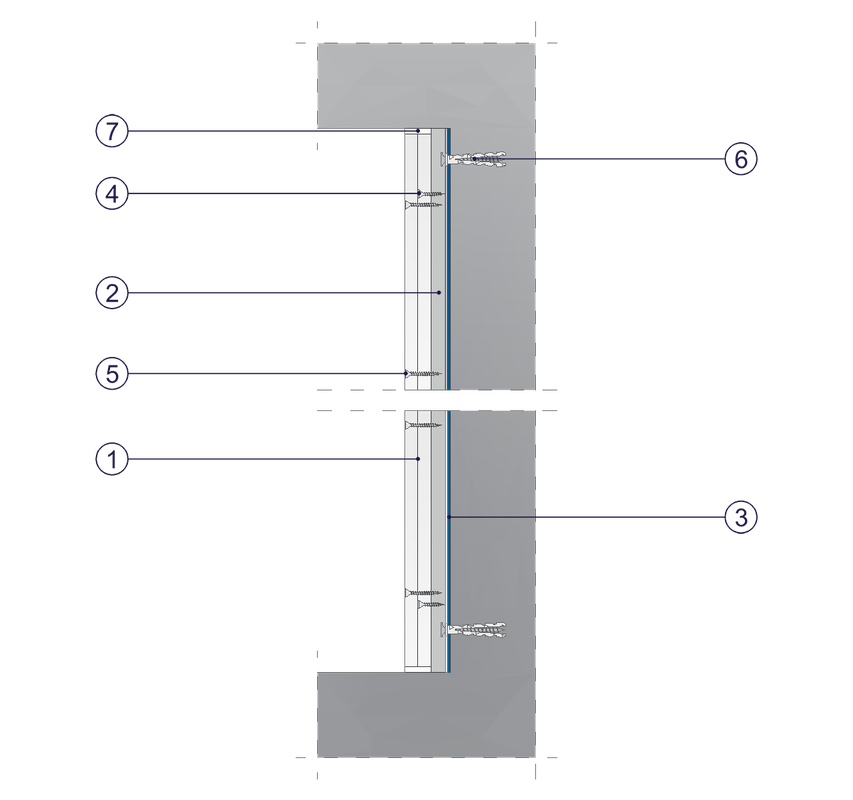

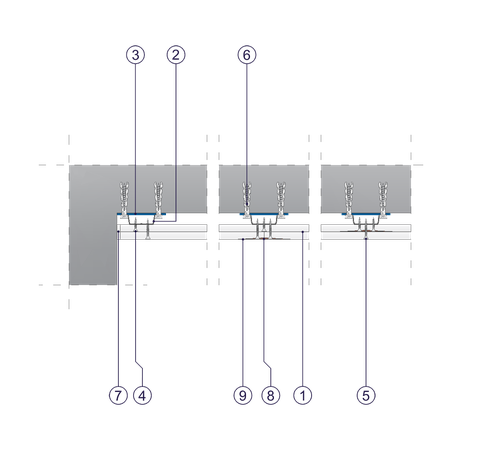

Wall cladding elements

Norgips S GKB type A plasterboards of 12.5 mm thickness 12.5 mm

Norgips top hat profiles, max. axial spacing every 60 cm ¹⁾

Optional Norgips sealing tape, width 75 mm

Norgips 3.5 x 25 mm sheet metal screws, max. spacing every 75 cm

Norgips 3.5 x 35 mm sheet metal screws, max. spacing every 25 cm

Steel dowels, min. ∅ 6 x 40 mm in two rows every 100 cm

Norgips Start & Finish ready-made joint compound or Norgips Start gypsum joint compound

Norgips reinforcing tape

Ready-made joint compound Norgips Extra Finish, ready-made joint compound Norgips Start & Finish, gypsum joint compound Norgips Finish

Download To file

System datasheet OS - 2x12,5 GKB A/KAP/0,50

If profiles are used in the horizontal orientation, their maximum profile axial spacing must be decreased to 500 mm. Moreover, the material consumption must be corrected using the calculator.

Calculator of material usage

Lining surface area m²

Material

Unit

Consumption per 1 m²

Consumption
on {total} m²

Price
per unit*

Value

Value of materials per 1 m2 of wall cladding
:

{get_calculation_per_meter} PLN

Value of materials per 1 m² of wall cladding

: {get_calculation_per_meter} PLN

Total value of materials for the wall cladding surface area

{get_total_calculation} PLN

Total value of materials for the wall cladding surface area

: {get_total_calculation} PLN

The above material consumption standards are just estimates and do not include waste resulting from material installation. The calculation does not constitute a commercial offer within the meaning of Article 66 § 1 of the Civil Code.

^* In order to calculate the wall construction cost, enter material unit prices.

Q1 - Double filling of plasterboard joints and connections with a structural joint filler (Norgips Start & Finish or Norgips Star), sealing a reinforcing tape, covering visible fasteners with a joint filler

Q2 - Includes the Q1 scope plus filling plasterboard joints with a finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) until a smooth transition of a joint into a plasterboard surface is achieved

Q3 - Includes the Q2 scope plus filling the entire partition element (joints and cardboard) with an approx. 1 mm thick layer of finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) to level the surface, close all pores and consolidate absorptivity of filled surfaces
