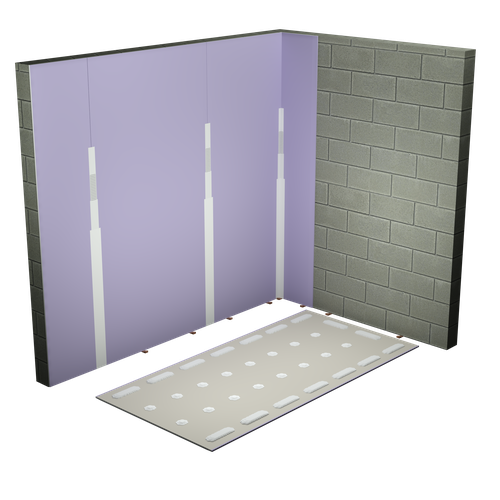

Drywall lining

ST - 1x12,5 DFH2IRE

made from type DFH2IR boards with a thickness of 12.5 mm fixed to a surface using a gypsum adhesive

ST - 1x12,5 DFH2IRE

Technical data

Max height
Max height
3.0 m 1)
Drywall weight
Drywall weight
17 kg/m2

Standard

super impregnowany super

Ensures higher stability of the development. Increased moisture resistance.

super impregnowany

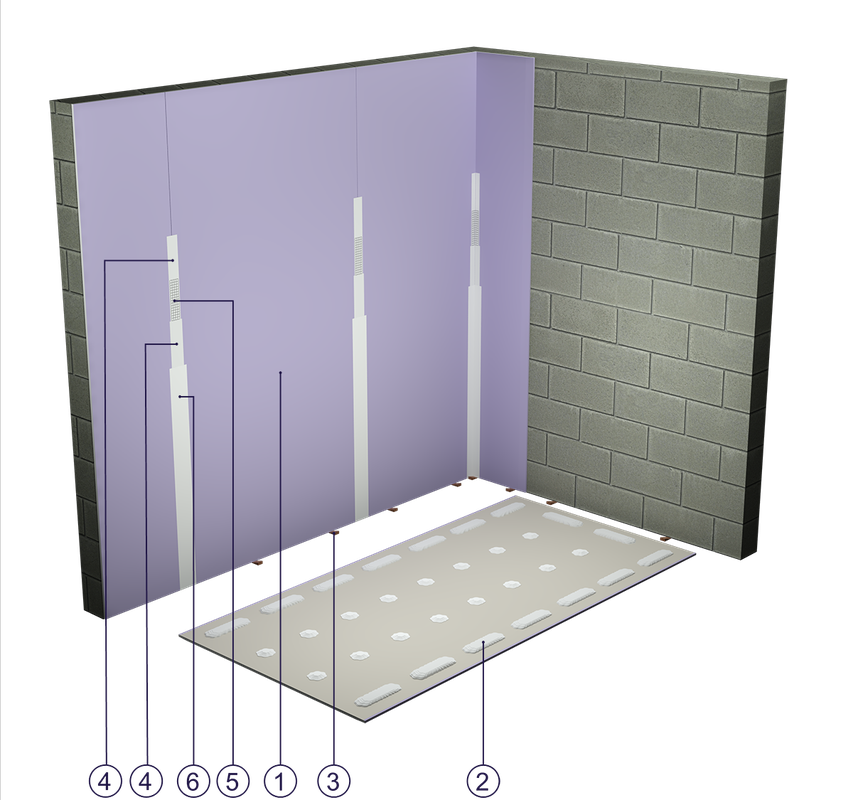

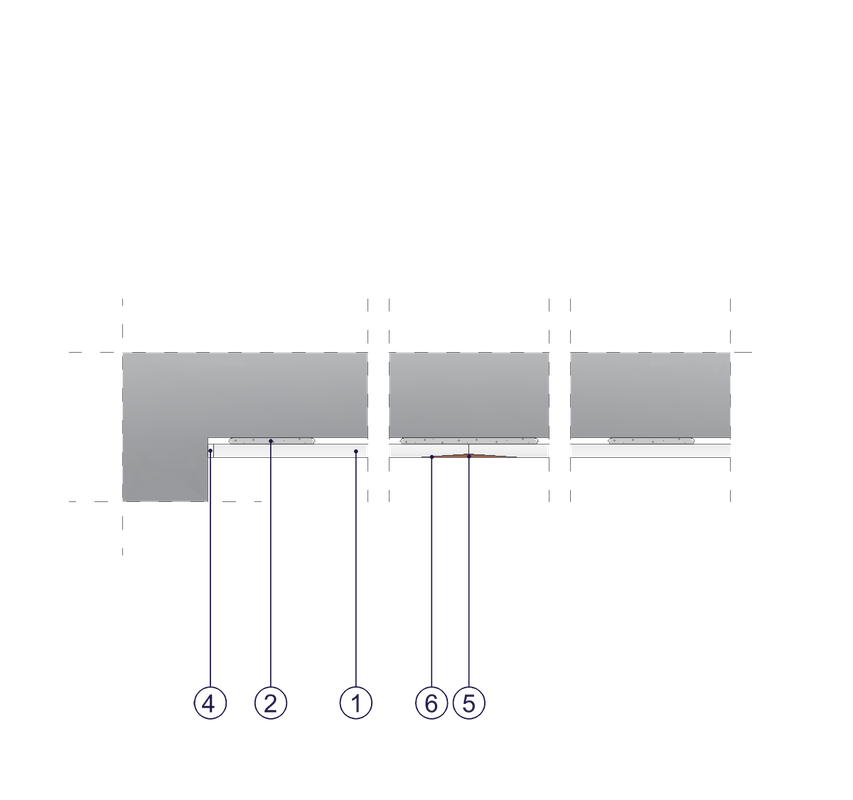

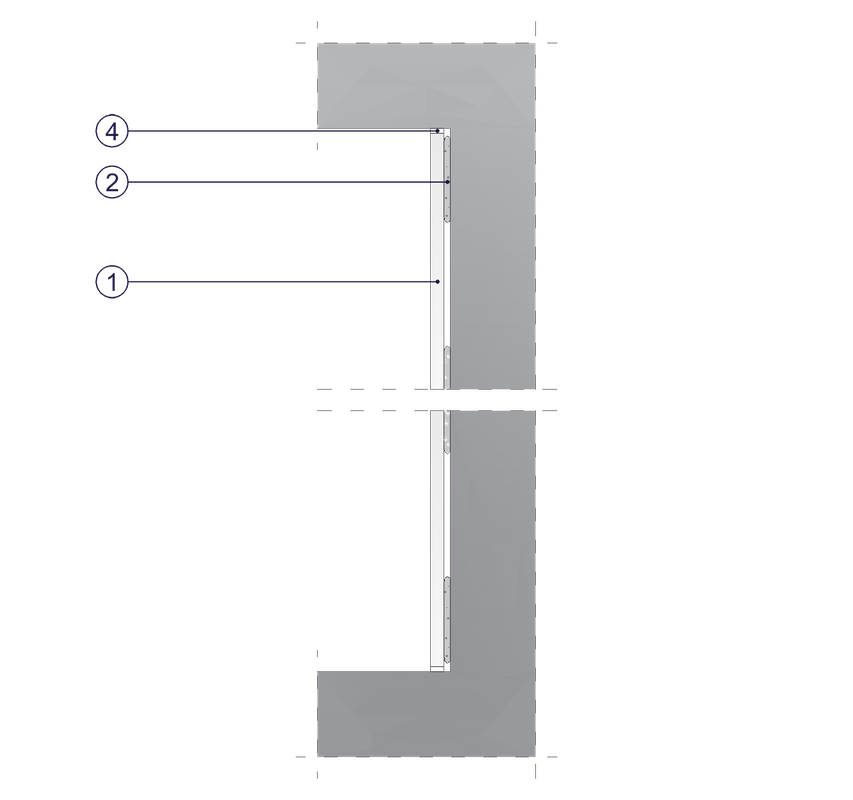

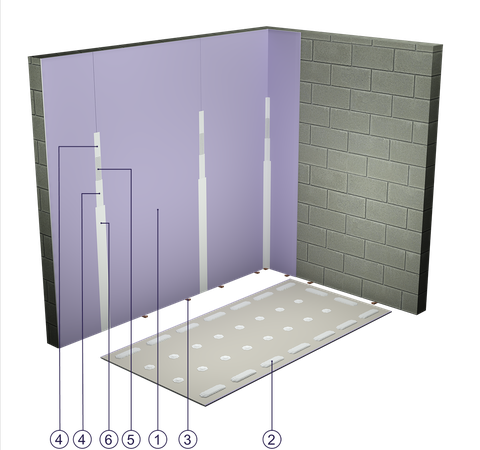

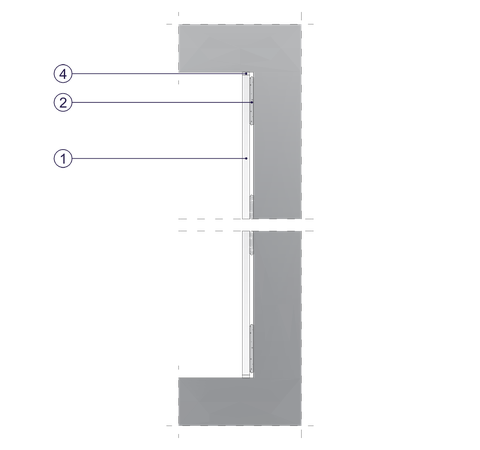

Drywall elements

1
Norgips S plasterboard type DFH2IR , thickness: 12.5 mm
2
Norgips Bonding Fix T gypsum adhesive
3
Plasterboard pads
4
Norgips Start & Finish ready-made joint compound or Norgips Start gypsum joint compound
5
Norgips reinforcing tape
6
Ready-made joint compound Norgips Extra Finish, ready-made joint compound Norgips Start & Finish, gypsum joint compound Norgips Finish
Download To file
System datasheet ST - 1x12,5 DFH2IRE
1)
The permissible height equals the thickness of one board. For higher structures, it is advisable to use wall claddings on top hat or CD 60 profiles.
Lining surface area m2
Swpie
Material
Unit
Consumption per 1 m2
Consumption
on {total} m2
Price
per unit*
Value

Value of materials per 1 m2 of dry plaster

:
{get_calculation_per_meter} PLN

Value of materials per 1 m2 of dry plaster

: {get_calculation_per_meter} PLN

Total value of materials for the dry plaster surface area

:
{get_total_calculation} PLN

Total value of materials for the dry plaster surface area

: {get_total_calculation} PLN

The above material consumption standards are just estimates and do not include waste resulting from material installation. The calculation does not constitute a commercial offer within the meaning of Article 66 § 1 of the Civil Code.

* In order to calculate the wall construction cost, enter material unit prices.

Q1 - Double filling of plasterboard joints and connections with a structural joint filler (Norgips Start & Finish or Norgips Star), sealing a reinforcing tape, covering visible fasteners with a joint filler

Q2 - Includes the Q1 scope plus filling plasterboard joints with a finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) until a smooth transition of a joint into a plasterboard surface is achieved

Q3 - Includes the Q2 scope plus filling the entire partition element (joints and cardboard) with an approx. 1 mm thick layer of finish joint filler (Norgips Extra Finish, Norgips Start & Finish or Norgips Finish) to level the surface, close all pores and consolidate absorptivity of filled surfaces

Project information:
Additional comments:
Save the prepared calculation:
PDF calculator ST - 1x12,5 DFH2IRE
XLS calculator ST - 1x12,5 DFH2IRE

Download To file
Declaration of Performance Declaration of Performance No. Acoustic Super 12,5/N/2025 date: 13 Aug 2025 – DFH2IRE 12,5 - EN 520

Download To file
Technical sheet KT - NORGIPS Start & Finish
Download To file
Technical sheet KT - Paper tape 50 mm
Download To file
Technical sheet KT - NORGIPS Extra Finish
Download To file
Technical sheet KT - NORGIPS Finish MEGA
Download To file
Technical sheet KT - Fleece tape 50 mm
Download To file
Technical sheet KT - NORGIPS Finish
Download To file
Technical sheet KT - NORGIPS Start
Download To file
Technical sheet KT - NORGIPS Bonding Fix T
Download To file
Technical sheet KT - NORGIPS S ACOUSTIC SUPER 12.5 mm type DFH2IRE
Fleece tape 50 mm
Fleece tape for reinforcing plasterboard joints
Paper tape 50 mm
Paper tape for reinforcing plasterboard joints
NORGIPS Finish MEGA New
Ready-mixed finishing compound for smooth pointing and skimming of indoor mineral substra…
NORGIPS Start & Finish
Ready-mixed dual-purpose filler and finishing compound for grouting plasterboard joints a…
NORGIPS Extra Finish
Ready-mixed finishing compound for grouting plasterboard joints and thin-layer levelling …
NORGIPS Start
Gypsum filler for grouting plasterboard joints
NORGIPS Finish
Gypsum filler for grouting plasterboard joints and thin-layer levelling of mineral substr…
NORGIPS Bonding Fix T
Gypsum adhesive for plasterboard and insulation materials
