Description

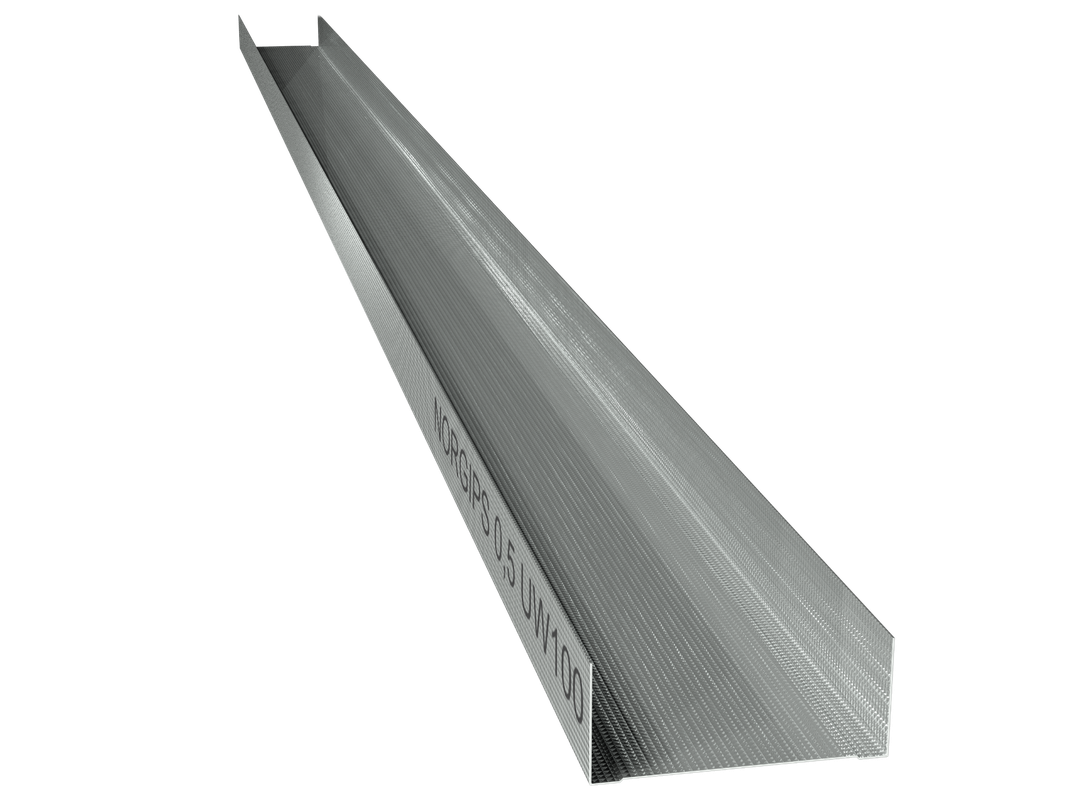

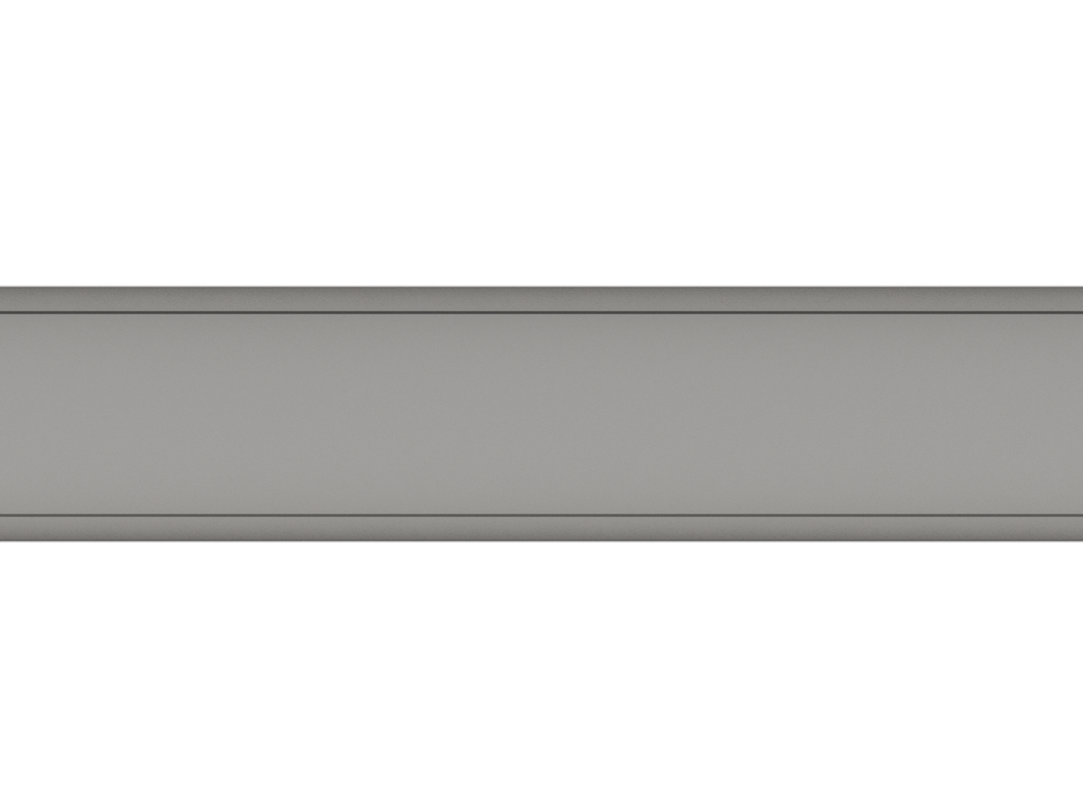

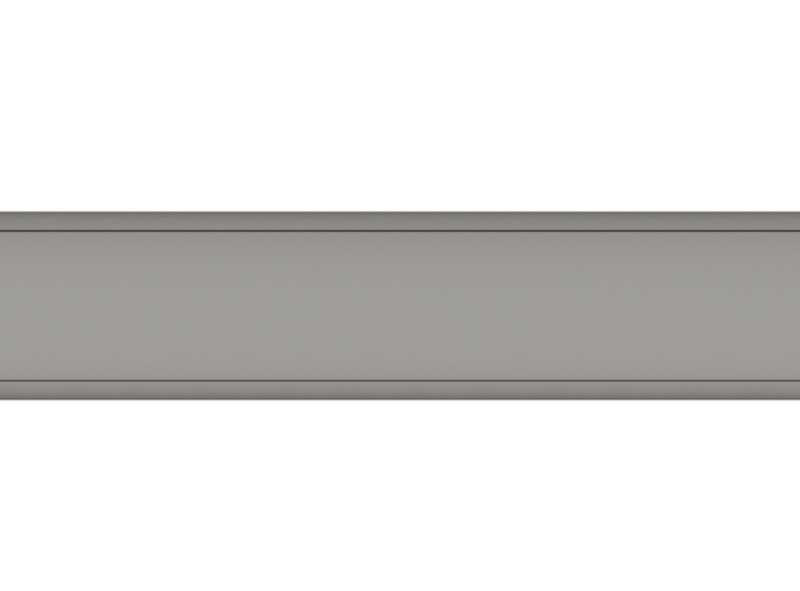

Horizontal profile made of zinc-coated 0.5 mm sheet metal.
Horizontal profile
Horizontal profile made of zinc-coated 0.5 mm sheet metal.
It is intended for decorative buildings, partition walls and curtain walls. In combination with CW vertical profiles (studs), it forms a structure for NORGIPS dry lining systems, i.e. partition walls, curtain walls.
The fire rating indicated in the NORGIPS documentation do not apply to this type of partition walls.
Small weight. Lightweight for transportation.
Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [N/mm2]
285
Reaction-to-fire performance
A1
Purpose / intended use
For plasterboard lining / indoor use
Sheet metal type
DX51D
Sheet metal gauge [mm]
0,5
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult
the design engineer.
ADDITIONAL INFORMATION
Applicable standards: PN-EN 14195:2015 Metal framing components for gypsum board systems – Definitions, requirements and test methods; PN-EN ISO 12944-2:2018-02 Paints and varnishes – Corrosion protection of steel structures by protective paint systems – Part 2: Classification of environments Classification of environments.
