Description
Wall-mounted profile made of zinc-coated 0.5 mm sheet metal.
Available in 28 mm width.

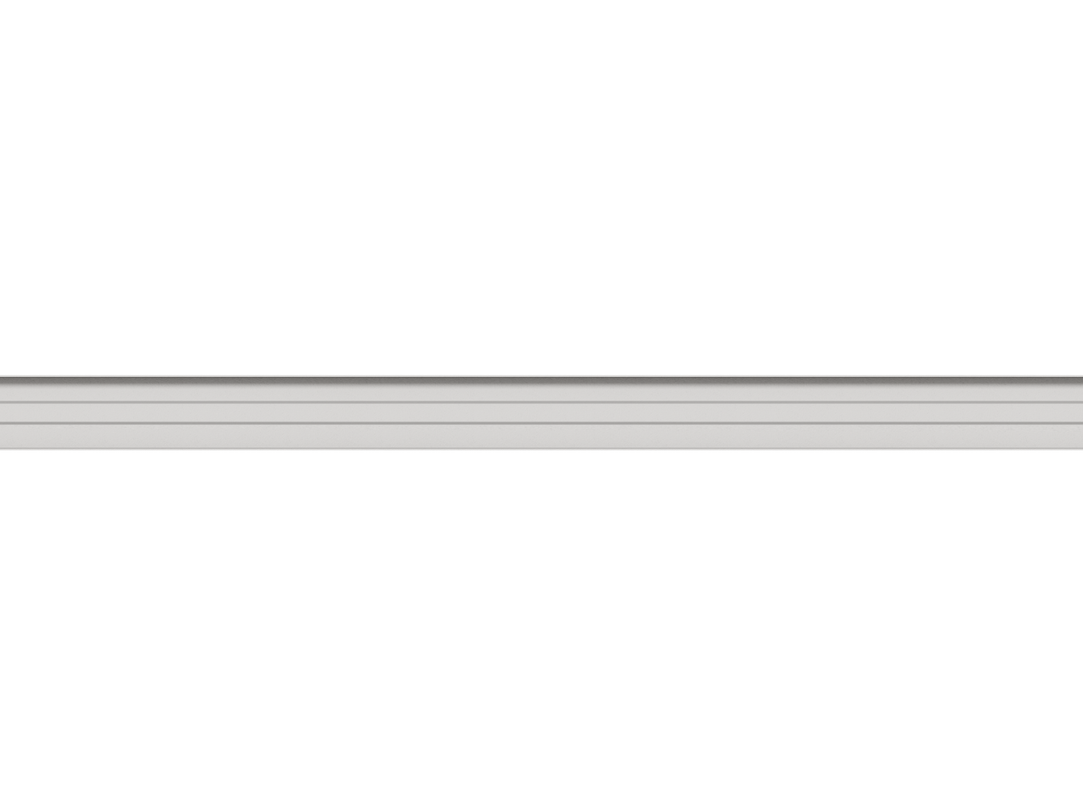

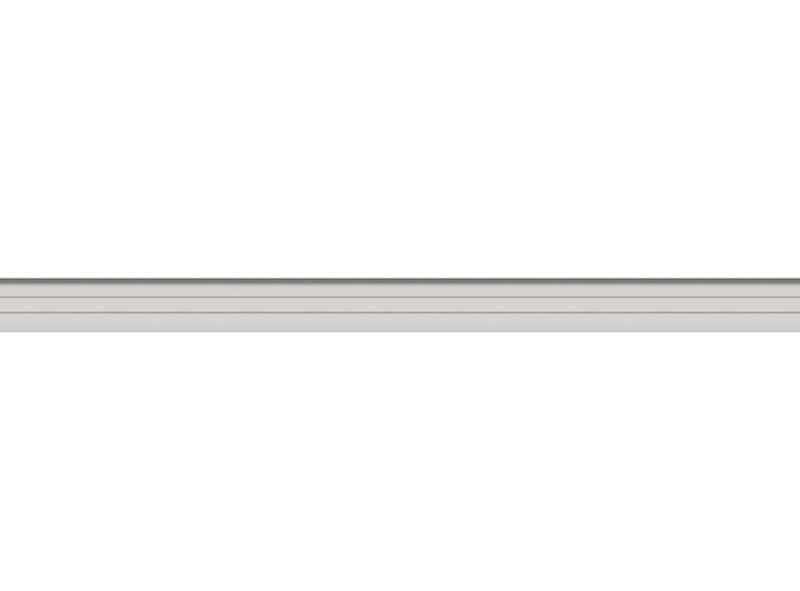

Wall-mounted profile
Wall-mounted profile made of zinc-coated 0.5 mm sheet metal.
Available in 28 mm width.
Intended for execution of decorative elements, suspended ceilings, attic linings and wall claddings. In combination with CD60 ceiling profiles, it forms a structure for NORGIPS dry lining systems.
Designated for use with accessories providing great arrangement options for the executed linings. Profile not belonging to the system. In specific cases, the use of profiles made of sheet metal with a thickness of 0.5 mm is permitted, provided that the spacing between profiles and hangers is reduced by 20%.
Small weight. Lightweight for transportation.

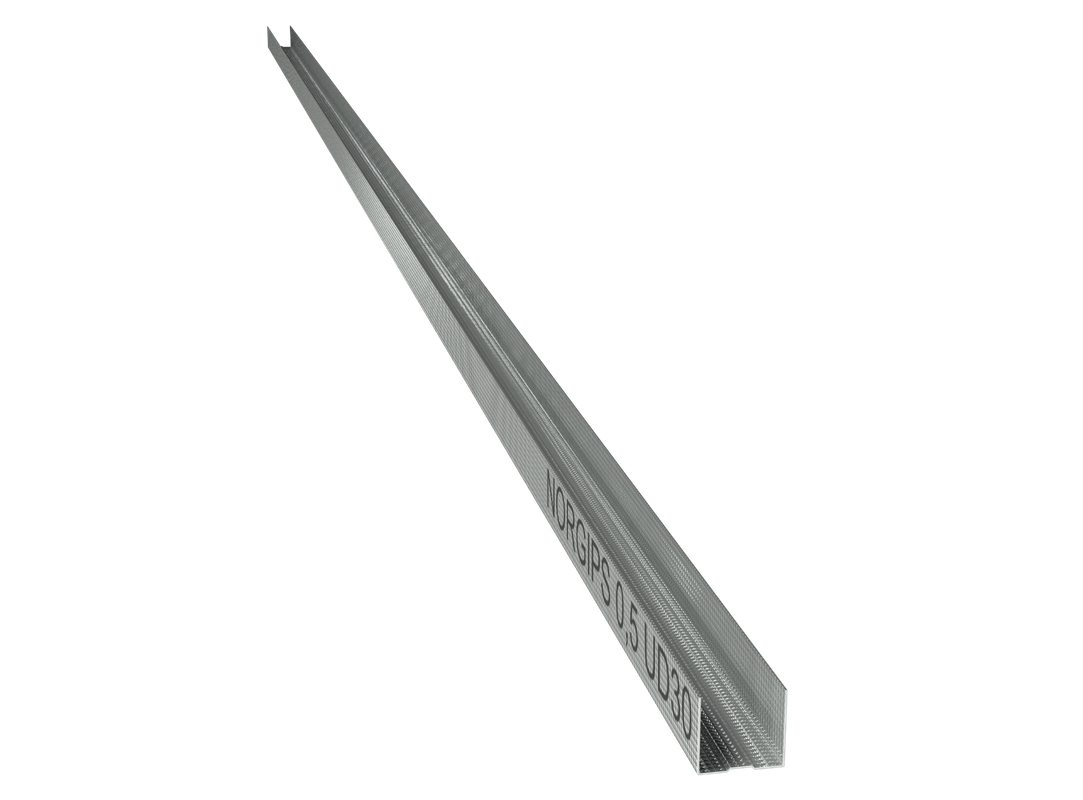

Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [N/mm2]
285
Reaction-to-fire performance
A1
Purpose / intended use
For plasterboard lining / indoor use
Sheet metal type
DX51D
Sheet metal gauge [mm]
0,5
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult
the design engineer.
ADDITIONAL INFORMATION
Applicable standards: PN-EN 13964:2014-05 Suspended ceilings – Requirements and test methods;
PN-EN ISO 12944-2:2018-02 Paints and varnishes – Corrosion protection of steel structures by protective paint systems – Part 2: Classification of environments.
