Description

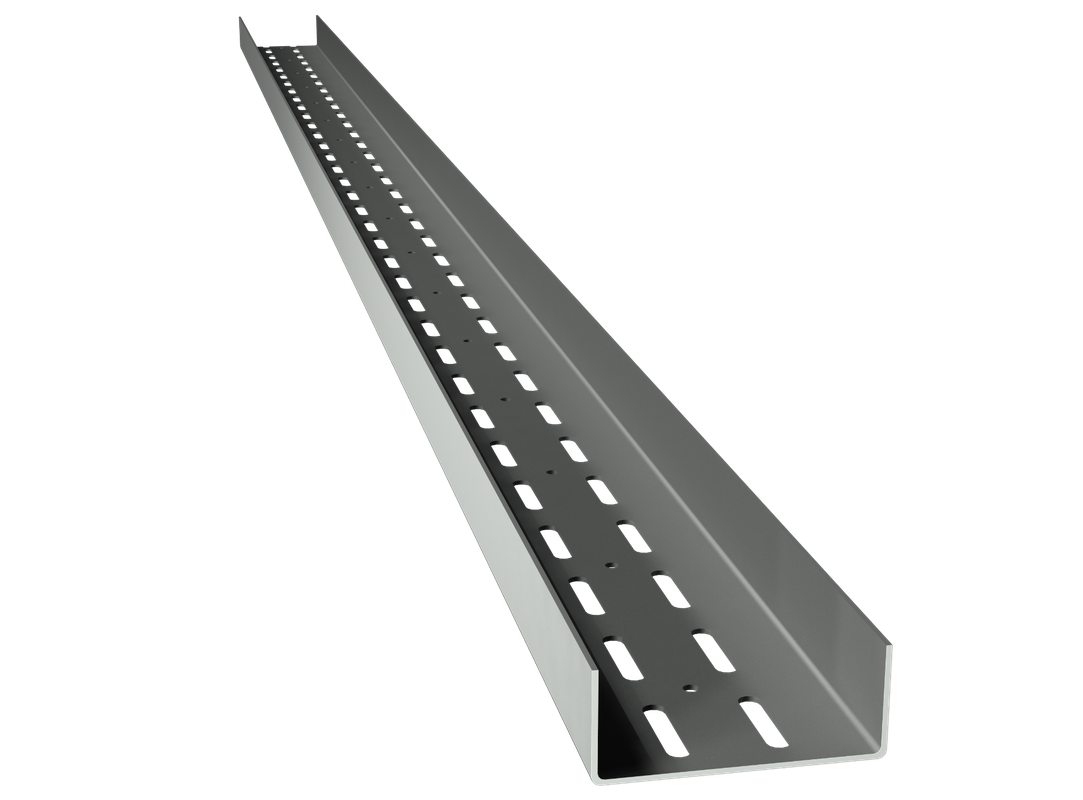

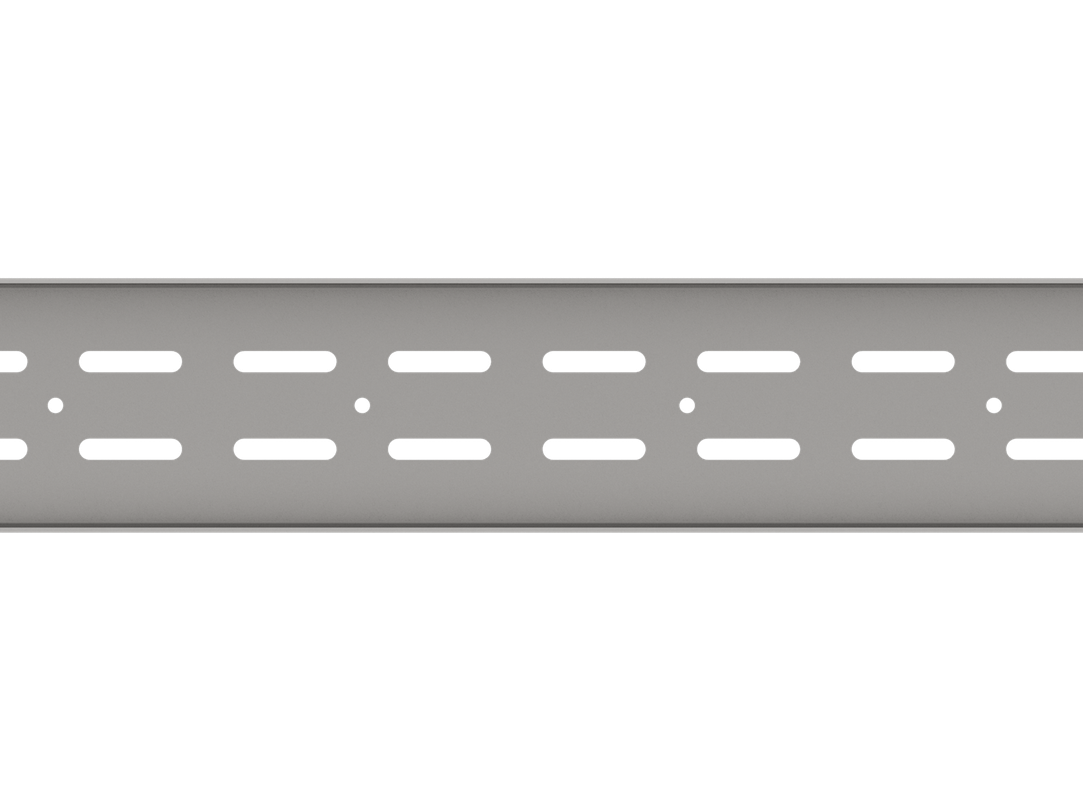

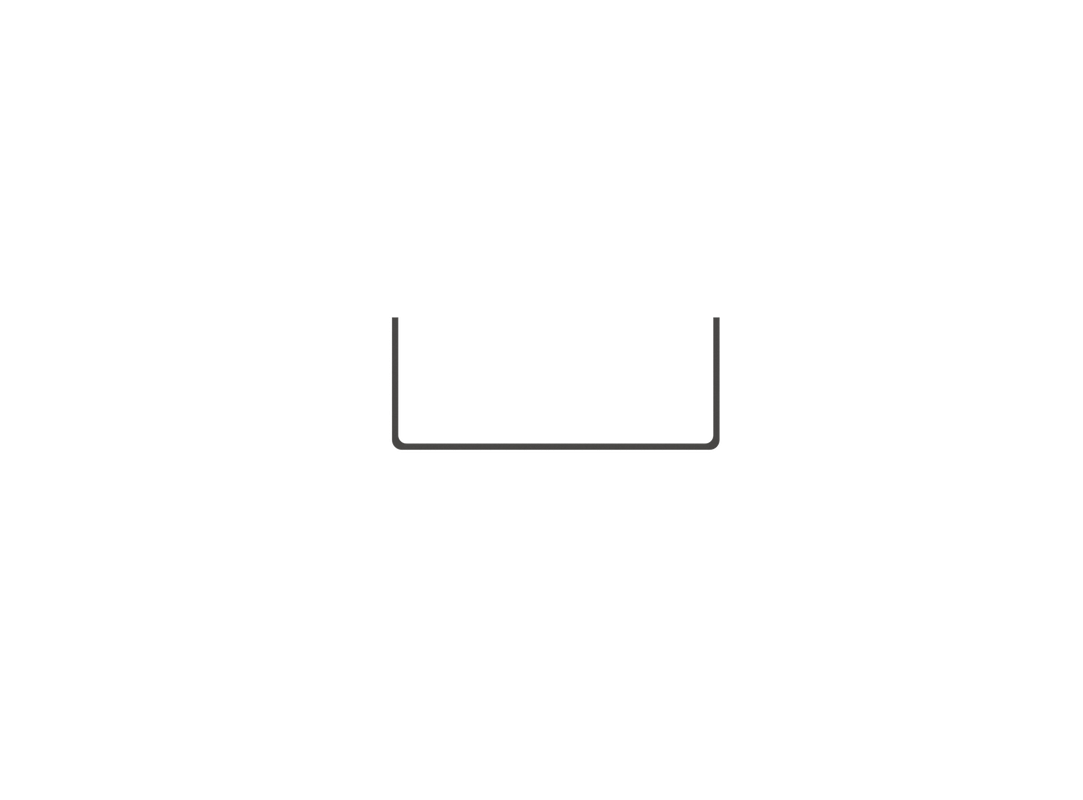

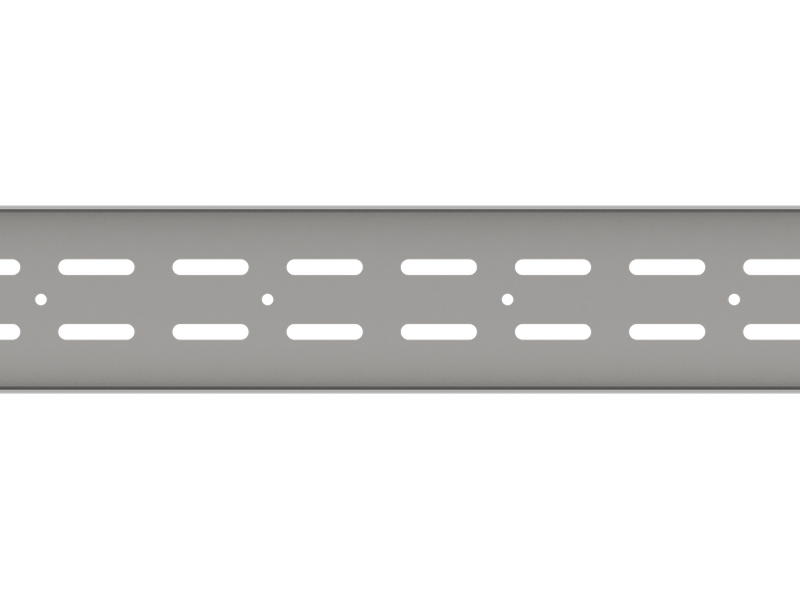

Vertical profile (stud) made of zinc-coated 2 mm sheet metal and width size 100 mm.
Door frame profile
Vertical profile (stud) made of zinc-coated 2 mm sheet metal and width size 100 mm.
Designated for the execution of doorways in partition or curtain walls. Intended for use as a doorway structure or a frame structure, e.g. for a washbasin. The profile mounting is carried out with help of UA angles and M8 bolts. In combination with UW horizontal profiles, it forms a structure for NORGIPS dry lining systems, i.e. partition walls, curtain walls. Suitable for indoor linings.
Modularity. Tested as a part of NORGIPS dry lining systems.
Greater rigidity. Made of 2 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [N/mm2]
270 to 500
Reaction-to-fire performance
A1
Humidity resistance
C1, C2
Purpose / intended use
Designated for executing doorways, gridwork structures or other reinforcements in dry lining systems.
Sheet metal type
DX51D
Sheet metal gauge [mm]
2,0
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult the design engineer.
NOTES FOR GUIDANCE
Applicable standards: PN-EN 14195:2015 Metal framing components for gypsum board systems – Definitions, requirements and test methods; PN-EN ISO 12944-2:2018-02 Paints and varnishes – Corrosion protection of steel structures by protective paint systems – Part 2: Classification of environments Classification of environments.
