Description

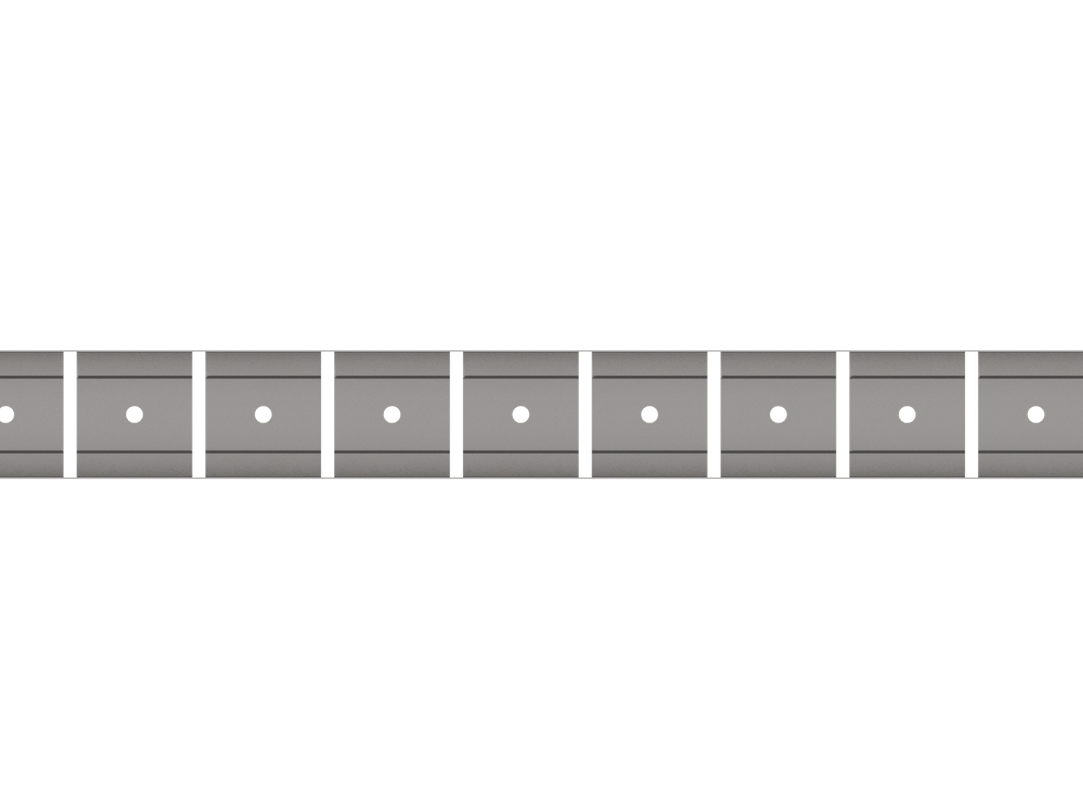

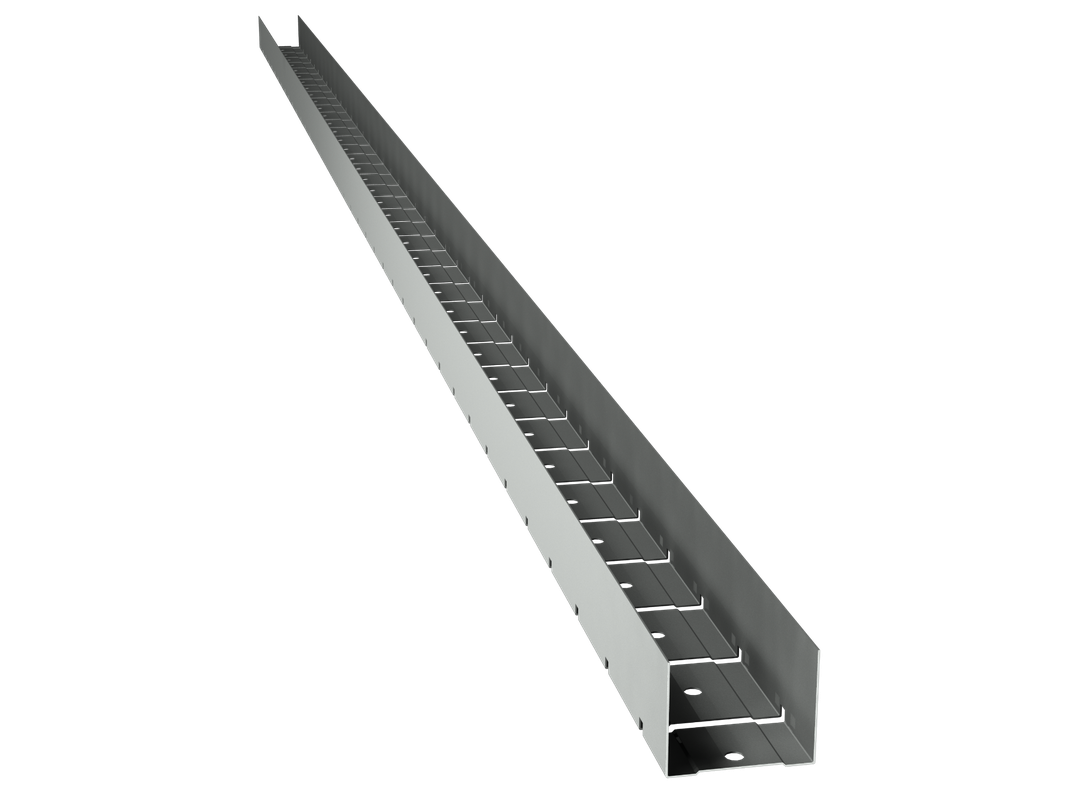

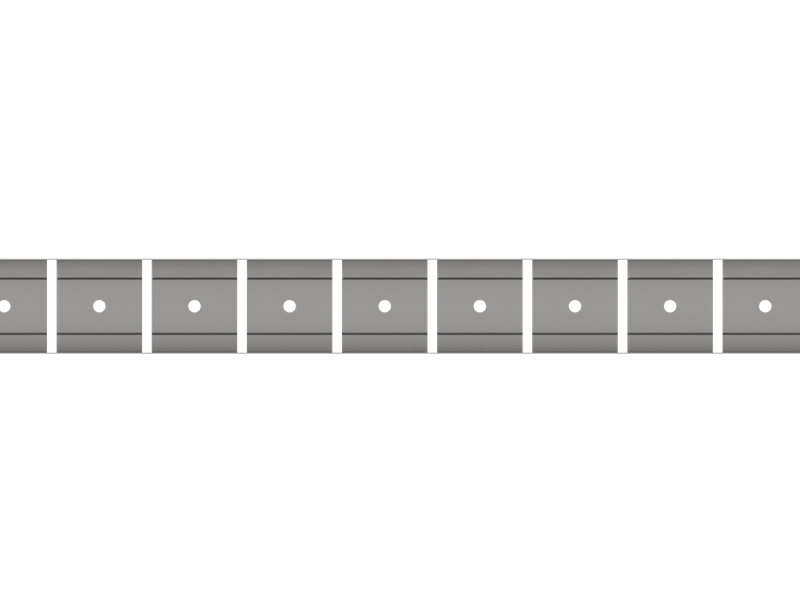

Horizontal profile made of zinc-coated 0.5 mm sheet metal. Available in two width sizes: 50 or 75 mm. The incised web of this profile facilitates affixing it to a curved surface.
Horizontal profile made of zinc-coated 0.5 mm sheet metal. Available in two width sizes: 50 or 75 mm. The incised web of this profile facilitates affixing it to a curved surface.
Designated for the construction of curve-shaped partition or curtain walls. In combination with CW vertical profiles (studs), it forms a structure for NORGIPS dry lining systems.
Small weight. Lightweight for transportation.
Incised. Easier profile bending.
Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [N/mm2]
270 to 500
Reaction-to-fire performance
A1
Purpose / intended use
For plasterboard lining: curve-shaped partition or curtain walls
Sheet metal type
DX51D
Sheet metal gauge [mm]
0,5
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult
the design engineer.
ADDITIONAL INFORMATION
Applicable standards: PN-EN 14195:2015 Metal framing components for gypsum board systems – Definitions, requirements and test methods; PN-EN ISO 12944-2:2018-02 Paints and varnishes – Corrosion protection of steel structures by protective paint systems – Part 2: Classification of environments Classification of environments.
