Description
Mechanical fasteners designated for affixing plasterboards to steel profiles made of sheet metal thicker than 0.6 mm. Phosphate-coated sheet metal screws with self-drilling bits.

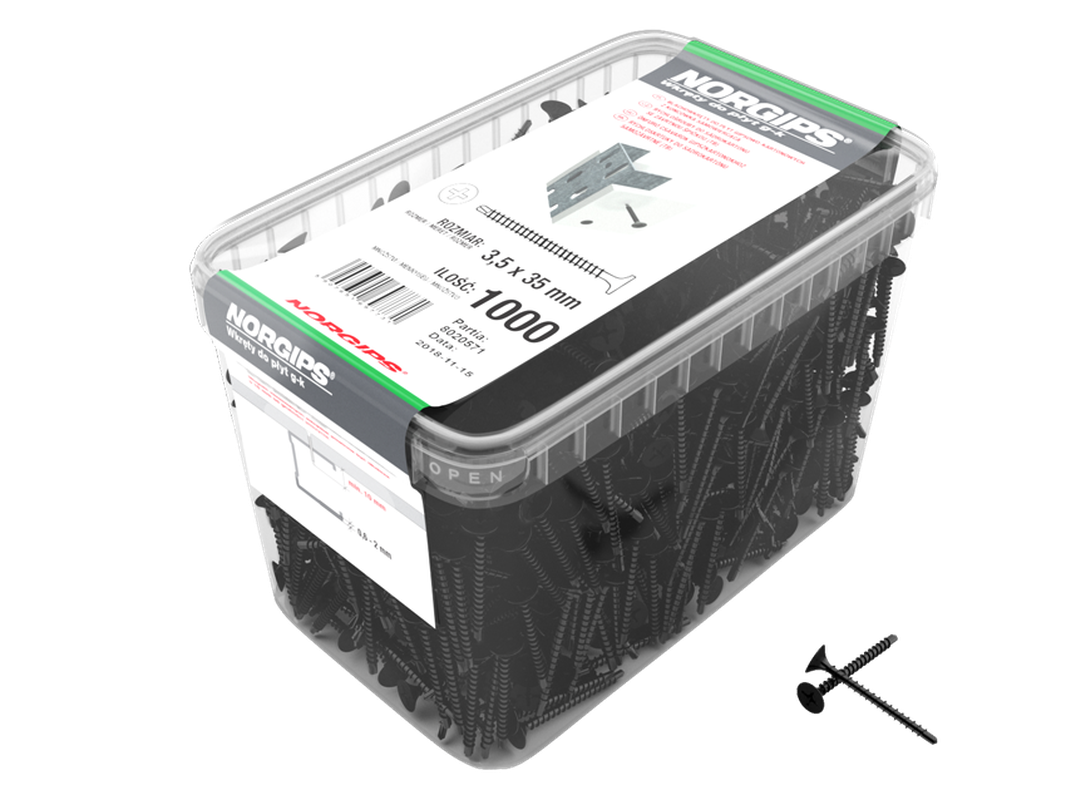

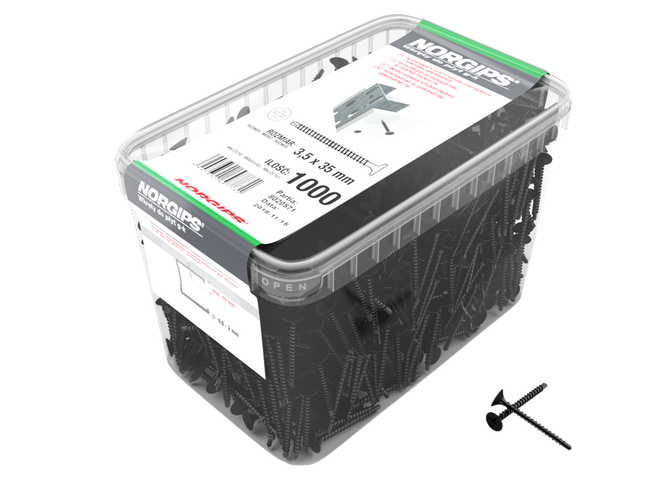

Phosphate-coated sheet metal screws with self-drilling bits
Mechanical fasteners designated for affixing plasterboards to steel profiles made of sheet metal thicker than 0.6 mm. Phosphate-coated sheet metal screws with self-drilling bits.
Designated for affixing plasterboards to the structure of dry lining systems constructed of steel door frame profiles, in indoor applications. Designated for partition walls, wall claddings, curtain walls and other lining systems. The screw length should exceed the sheathing thickness by at least 10 mm.
Modularity. Tested as a part of NORGIPS dry lining systems.
Corrosion-protected. Phosphate-coated sheet metal screws.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Profile marking. To facilitate the product identification, designations are placed directly on the profiles.
Corrosion resistance
Class 24
Type of corrosion protection
Phosphate coating
Screw type
PSD
Reaction-to-fire performance
A1
Pull-out resistance [N]
≤450
Flexural strength
Met
Harmonised standard
EN 14566+A1:2012
NOTES FOR GUIDANCE
c
ADDITIONAL INFORMATION
Applicable standard: PN-EN 14566+A1:2012 Mechanical fasteners for gypsum plasterboard systems. Definitions, requirements and test methods.
