Description

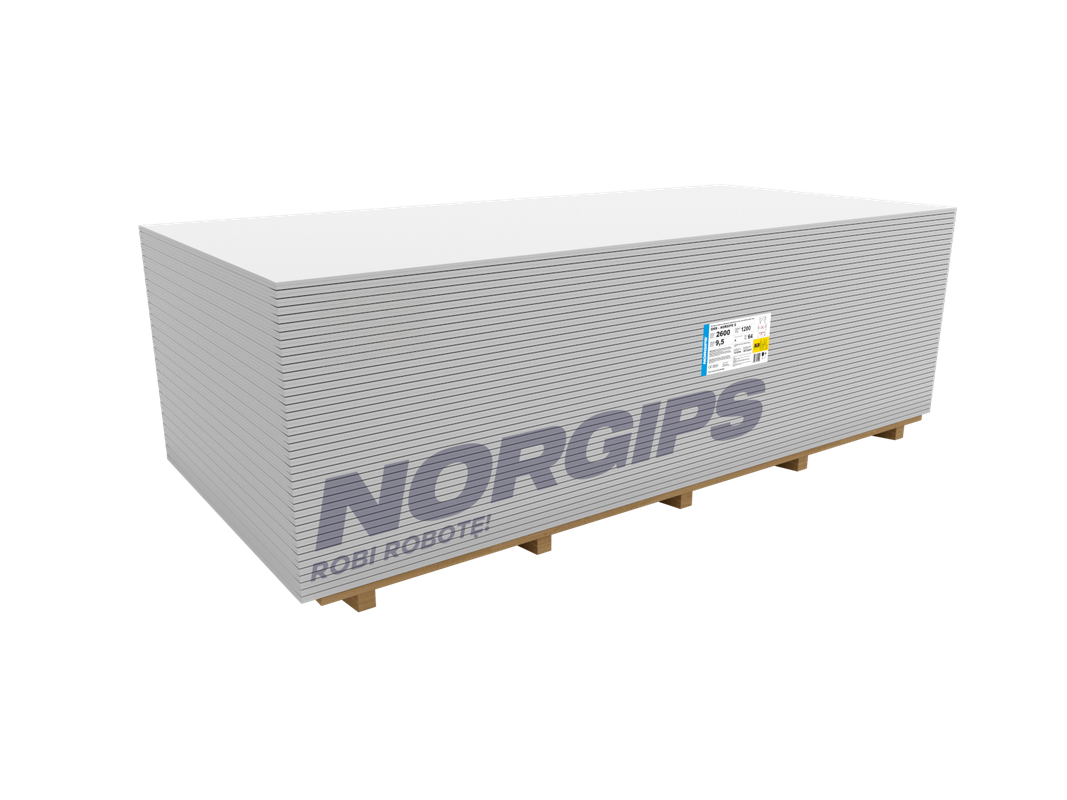

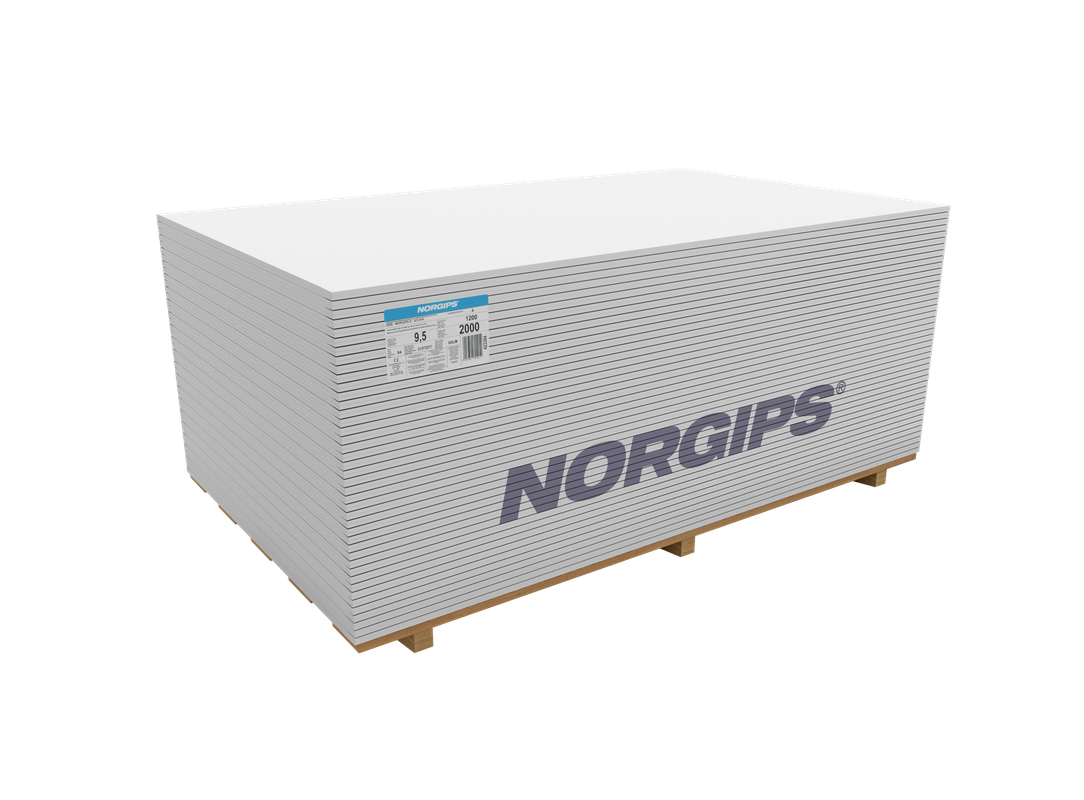

This standard plasterboard features tapered, cardboard-laminated longitudinal edges and square transverse edges.
Colour – ivory-coloured cardboard with designations in blue.
This standard plasterboard features tapered, cardboard-laminated longitudinal edges and square transverse edges.
Colour – ivory-coloured cardboard with designations in blue.
Plasterboard for indoor construction purposes. Designated for interior lining of any kind and for use as a part of dry lining systems applied in rooms with a relative humidity not exceeding 70%.
The maximum application temperature is 50°C. The plasterboard designation includes the panelling of suspended ceilings and the cladding of walls in the form of a dry lining.
Lightweight. Easy and simple plasterboard transportation at mounting work.

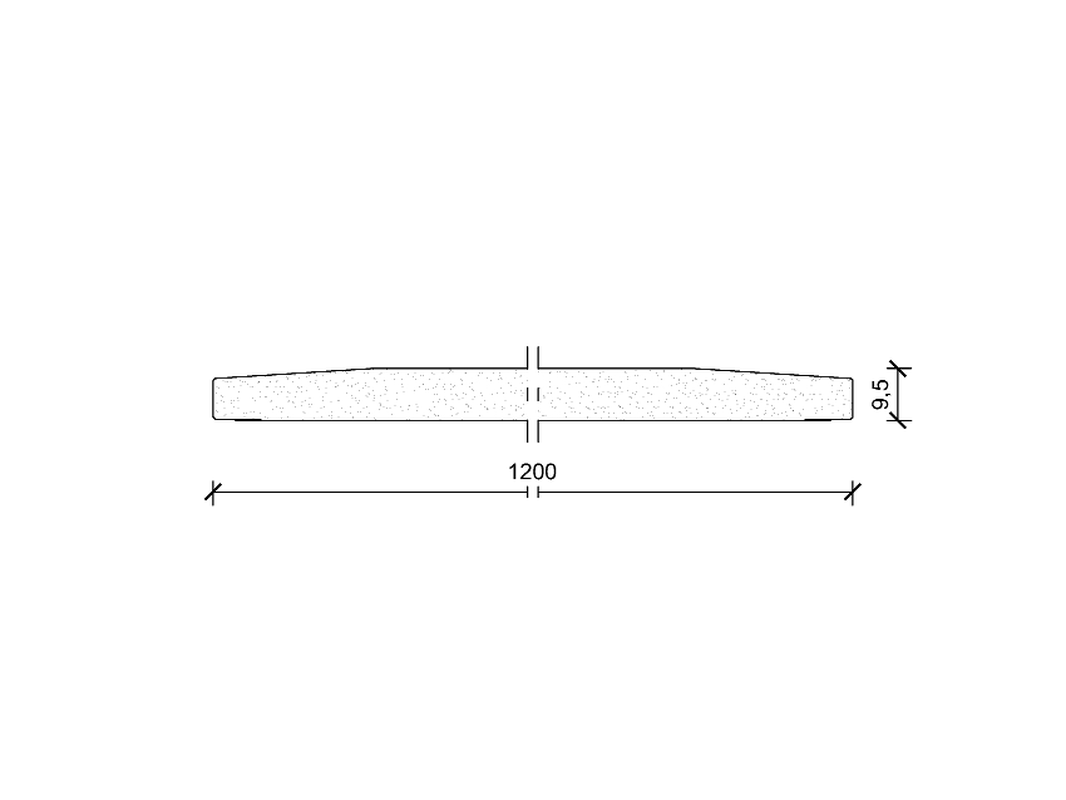

Edge S. Tapered longitudinal edges make finishing of the panel joints easier. Due to an appropriate moulding and the
use of joint compounds belonging to the Norgips system as well as joint tapes for joint finishing, a joint with a maximum strength can be obtained.
Type of edge
NORGIPS S (KS)
Reaction-to-fire performance
A2-s1, d0
Flexural strength [N]:
longitudinal direction
cross direction
≥400
≥160
Water vapour diffusion resistance factor [µ]
10
Thermal conductivity coefficient [λ]
0,25 W/(m*K)
NOTES FOR GUIDANCE
Use the NORGIPS plasterboards in accordance with the NORGIPS system recommendations. Storage: store the boards on a flat surface, preferably on a pallet. Keep dry. Plasterboard transport on the construction site: keep the butt edge in vertical position when carrying.
ADDITIONAL INFORMATION
Applicable standard: PN-EN 520+A1:2012 Gypsum plasterboards. Definitions, requirements and test methods.
