This sound-insulating plasterboard features tapered, cardboard-laminated longitudinal edges and square transverse edges. The gypsum core of the plasterboard features an increased density and, due to its modification, a higher elasticity, which allows for obtaining partitions characterised by increased sound insulating capacity.
Colour – ivory-coloured cardboard with designations in blue.
Plasterboard for indoor construction purposes. Designated for interior lining of any kind and for use as a part of dry lining systems applied in rooms with a relative humidity not exceeding 70%.
The maximum application temperature is 50°C. Developed for sound insulation systems with a high level of sound-insulating requirements. Designated for soundproofing of rooms. The plasterboard is intended for sheathing of partition or curtain walls, wall linings, panelling of suspended ceilings and lining of attics.
Sound insulation. Due to its increased weight and special additives, the product features better parameters improving the sound insulation properties of the partition wall.

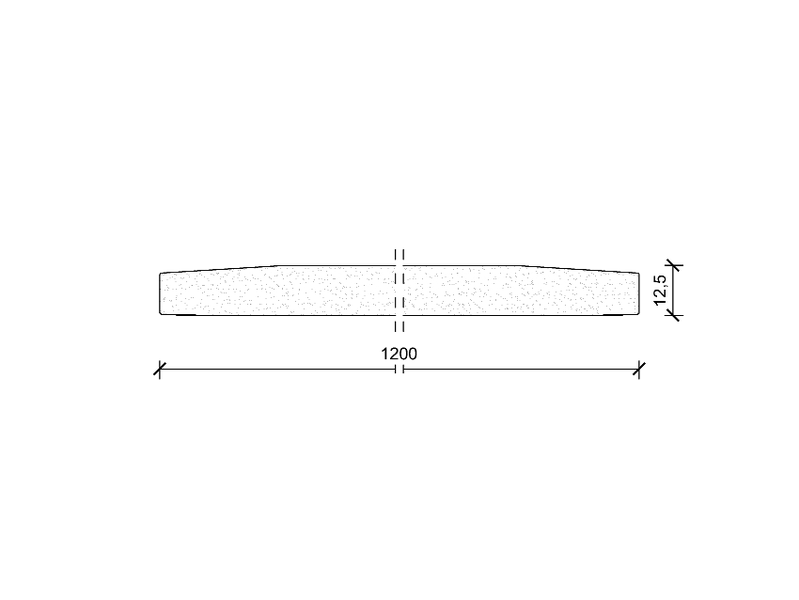

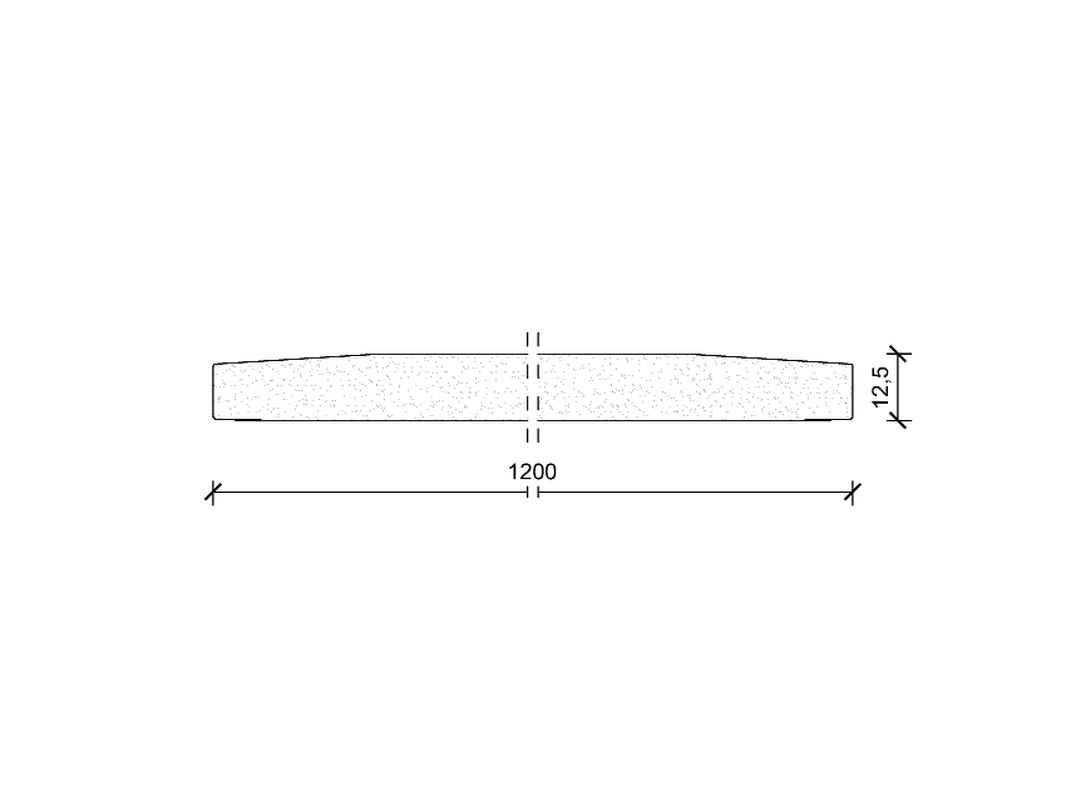

Edge S. The flattened longitudinal edge makes finishing the panel joints easier. Due to an appropriate moulding and the use of joint compounds belonging to the Norgips system as well as joint tapes for joint finishing, a joint with a maximum strength can be obtained.
Type of edge
NORGIPS S (KS)
Reaction-to-fire performance
A2-s1, d0
Flexural strength [N]:
longitudinal direction
cross direction
≥550
≥210
Water vapour diffusion resistance factor [µ]
10
Thermal conductivity coefficient [λ]
0,25 W/(m*K)
NOTES FOR GUIDANCE
Use the NORGIPS plasterboards in accordance with the NORGIPS system recommendations. Storage: store the boards on a flat surface, preferably on a pallet. Keep dry. Plasterboard transport on the construction site: keep the butt edge in vertical position when carrying.
ADDITIONAL INFORMATION
Applicable standard: PN-EN 520+A1:2012 Gypsum plasterboards. Definitions, requirements and test methods.
