Description

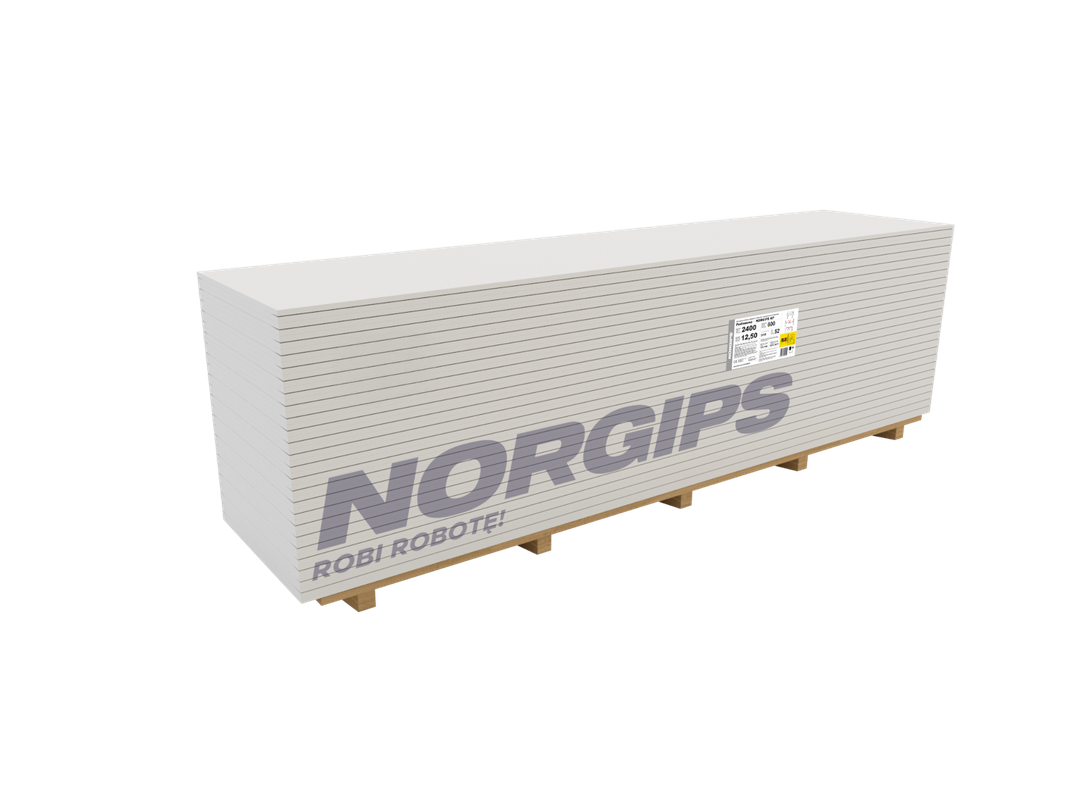

The flooring plasterboard comprises a glass fibre-reinforced gypsum core located between two layers of highly durable cardboard. The plasterboard edge is square, not tapered.
Colour – grey-coloured cardboard with designations in red.
The flooring plasterboard comprises a glass fibre-reinforced gypsum core located between two layers of highly durable cardboard. The plasterboard edge is square, not tapered.
Colour – grey-coloured cardboard with designations in red.
The plasterboard is designated for rooms with relative humidity not exceeding 70%. The maximum application temperature is 50°C. When insulated e.g., with a liquid waterproofing membrane, it can also be used in rooms with increased humidity. The plasterboard is designated for use as flooring underlayment, i.e. so-called dry screed flooring.
By applying two plasterboard layers, a partition with fire resistance rating REI 60 can be achieved.
Non-standard dimension. Easy and simple plasterboard transportation at mounting work.
Fire-resistant. The gypsum core contains a glass fibrereinforcement that increases its cohesiveness properties when
exposed to high temperatures.
Increased strength. The plasterboard is designed for special applications where greater strength and increased surface hardness are required.
Edge KP. Square edge.
Type of edge
NORGIPS KP
Reaction-to-fire performance
A2-s1, d0
Flexural strength [N]:
longitudinal direction
cross direction
≥725
≥300
Indentation hardness – ball impression diameter [mm]
>15
Gypsum core density [kg/m3]
≥1000
Water vapour diffusion resistance factor [µ]
10
Thermal conductivity coefficient [λ]
0,25 W/(m*K)
NOTES FOR GUIDANCE
Use the NORGIPS plasterboards in accordance with the NORGIPS system recommendations. Storage: store the boards on a flat surface, preferably on a pallet. Keep dry. Plasterboard transport on the construction site: keep the butt edge in vertical position when carrying.
ADDITIONAL INFORMATION
Applicable standard: PN-EN 520+A1:2012 Gypsum plasterboards. Definitions, requirements and test methods.
