Description

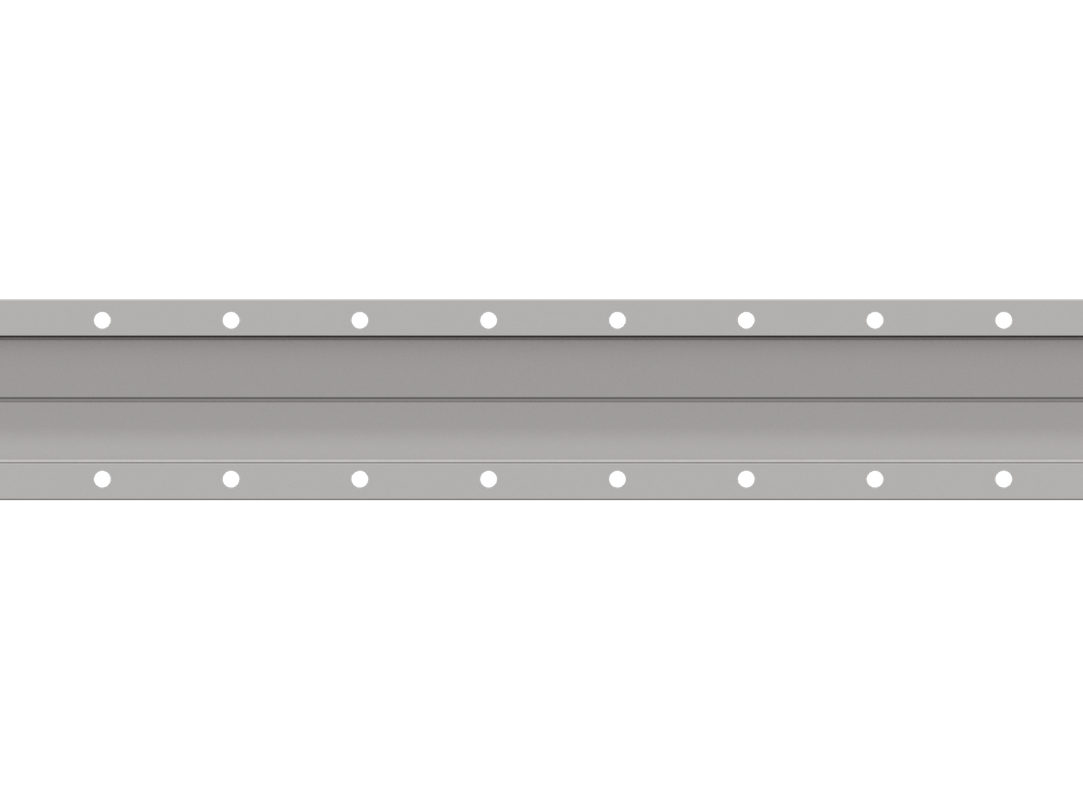

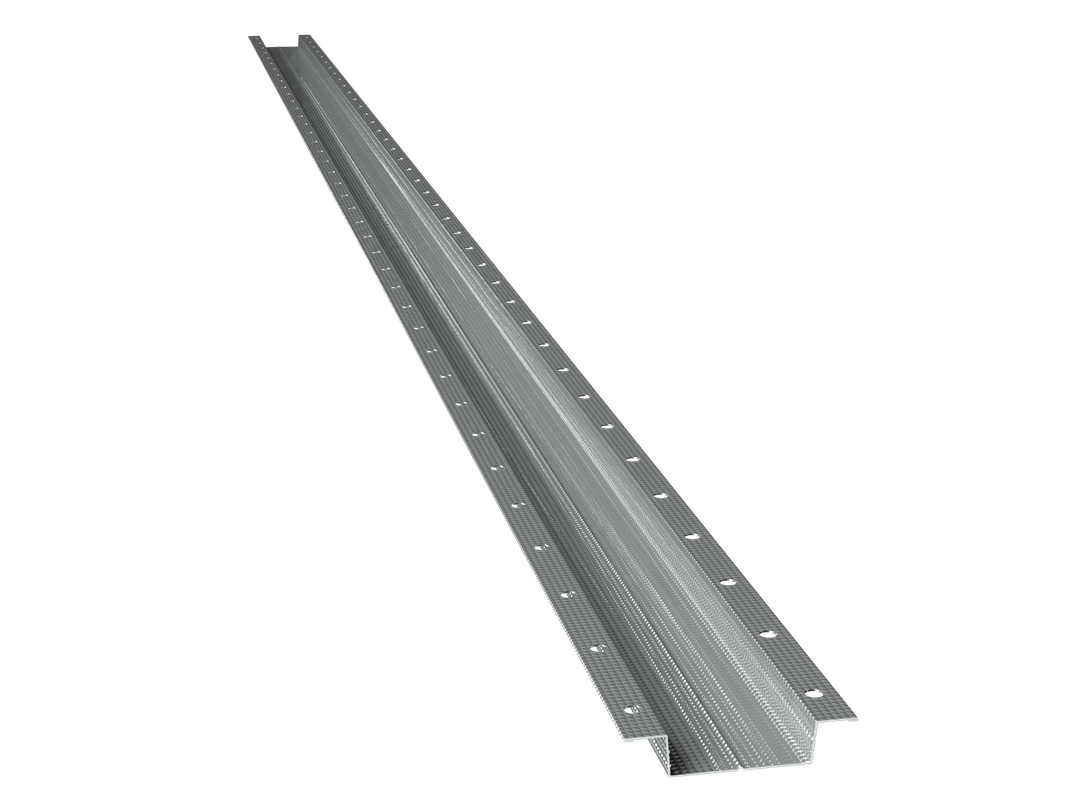

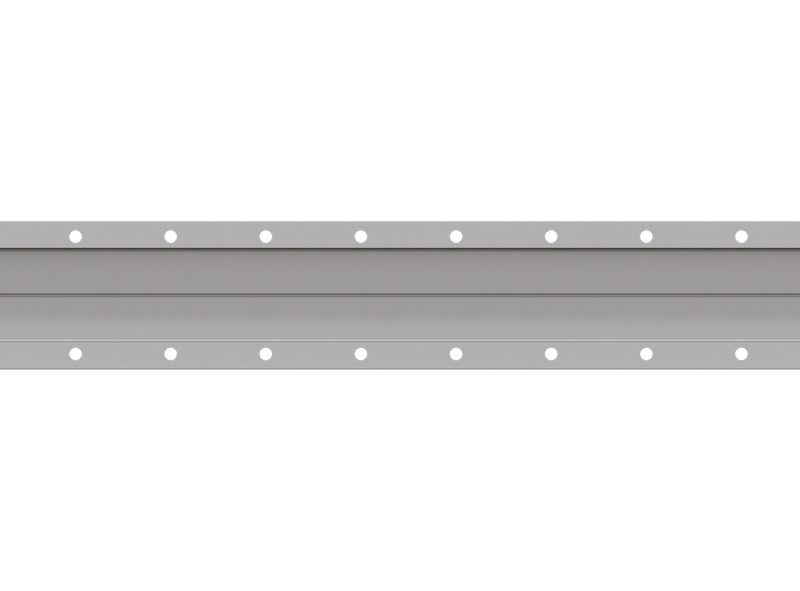

Hat profile made of zinc-coated 0.6 mm sheet metal. Available in 78 mm width.
Hat profile made of zinc-coated 0.6 mm sheet metal. Available in 78 mm width.
Profile belonging to the system, designated for the execution of decorative elements, suspended ceilings, attic linings and wall claddings. Directly affixed to the building structure, it forms a structure of NORGIPS dry lining systems. It allows for the execution of linings with a minimum thickness of approx. 30 mm.
Small weight. Lightweight for transportation.
Minimum lining thickness. Profile height 15 mm.
Profile designations. To facilitate the product identification, designations are placed directly on the profiles.
Tensile strength [MPa]
270
Reaction-to-fire performance
A1
Purpose / intended use
For plasterboard lining / indoor use
Sheet metal type
DX51D
Sheet metal gauge [mm]
0,6
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
NOTES FOR GUIDANCE
Use the profiles in accordance with manufacturer’s recommendations and design guidelines. For all other uses, consult the design engineer.
ADDITIONAL INFORMATION
Applicable standard: PN-EN 14195:2015 Metal framing components for gypsum board systems - Definitions, requirements and test methods.
