Description

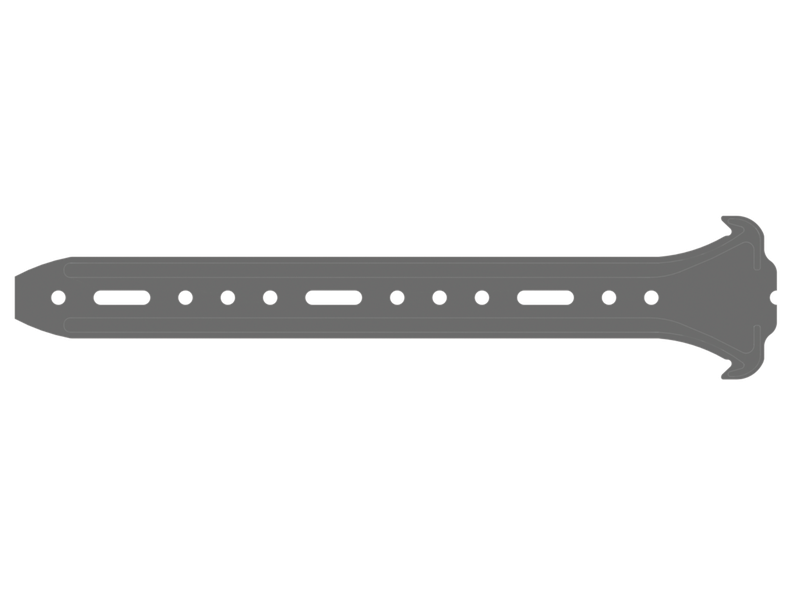

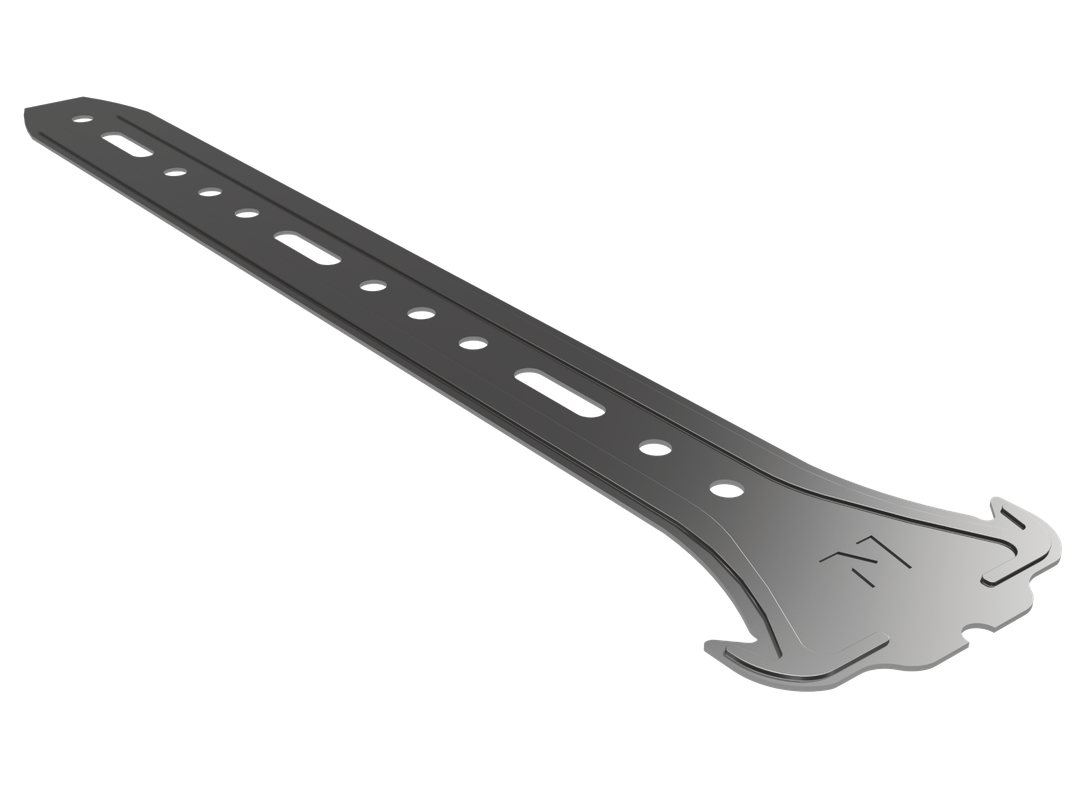

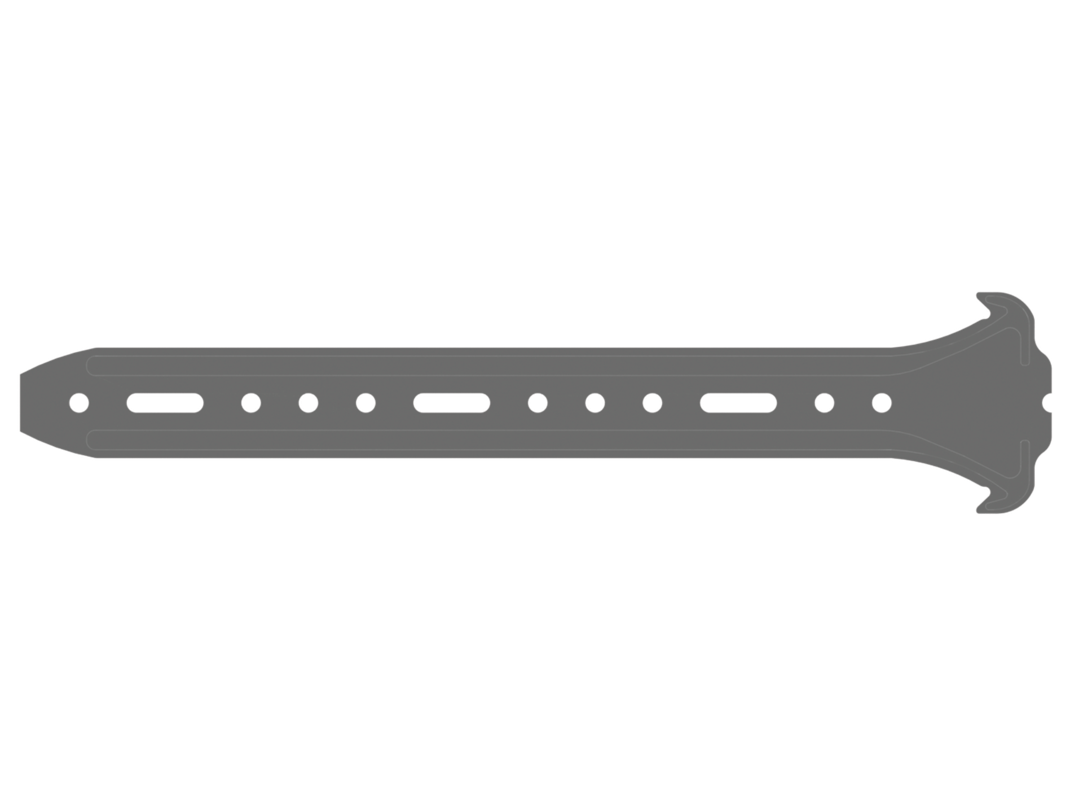

Hanger for attics, 270 mm long, made of zinc-coated 0.8 mm sheet metal. Metal framing component in accordance with PN-EN 13964:2014-05.
Hanger for attics, 270 mm long, made of zinc-coated 0.8 mm sheet metal. Metal framing component in accordance with PN-EN 13964:2014-05.
Attic lining. Flat hanger designated for affixing CD 60 profiles to wooden structures (e.g. roof truss systems). Designated for attic
linings, ceiling claddings and dropped ceilings. In the case of the L 270 hanger, it is possible to lower the lining structure by 200 mm. The hanger is affixed to the structure with two screws and snap-on fixed to CD 60 profiles. Suitable for horizontal and inclined surfaces.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Stiffness. The hanger is made of 0.7 mm sheet metal and has a stiffening ribbing providing the structure with stability.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
0.8
Type of corrosion protection
Zinc-coated steel
Durability
Class B
Reaction-to-fire performance
A1
Allowable load [N]
297
Failure load [N]
744
NOTES FOR GUIDANCE
The hanger requires indoor storage.
Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s recommendations and design guidelines.
Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
