Description

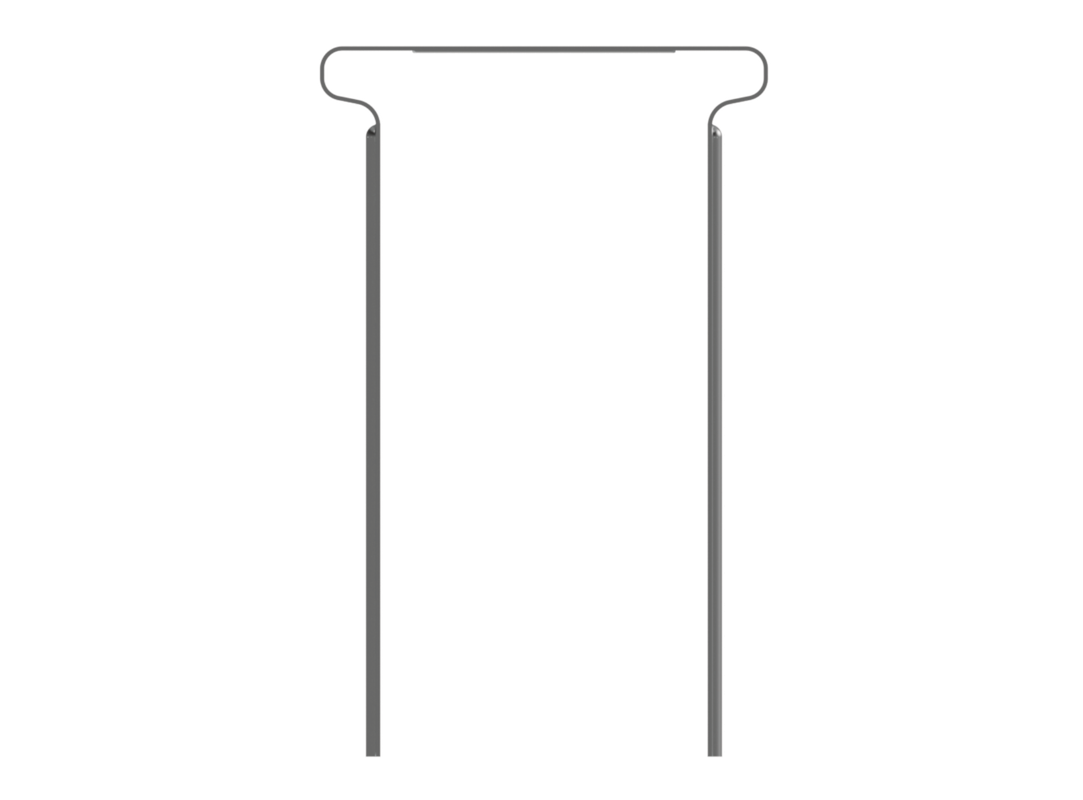

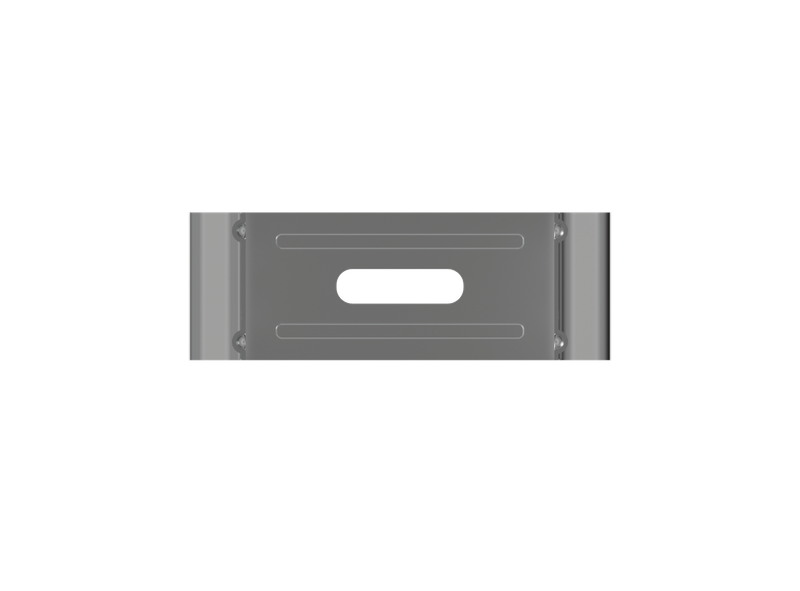

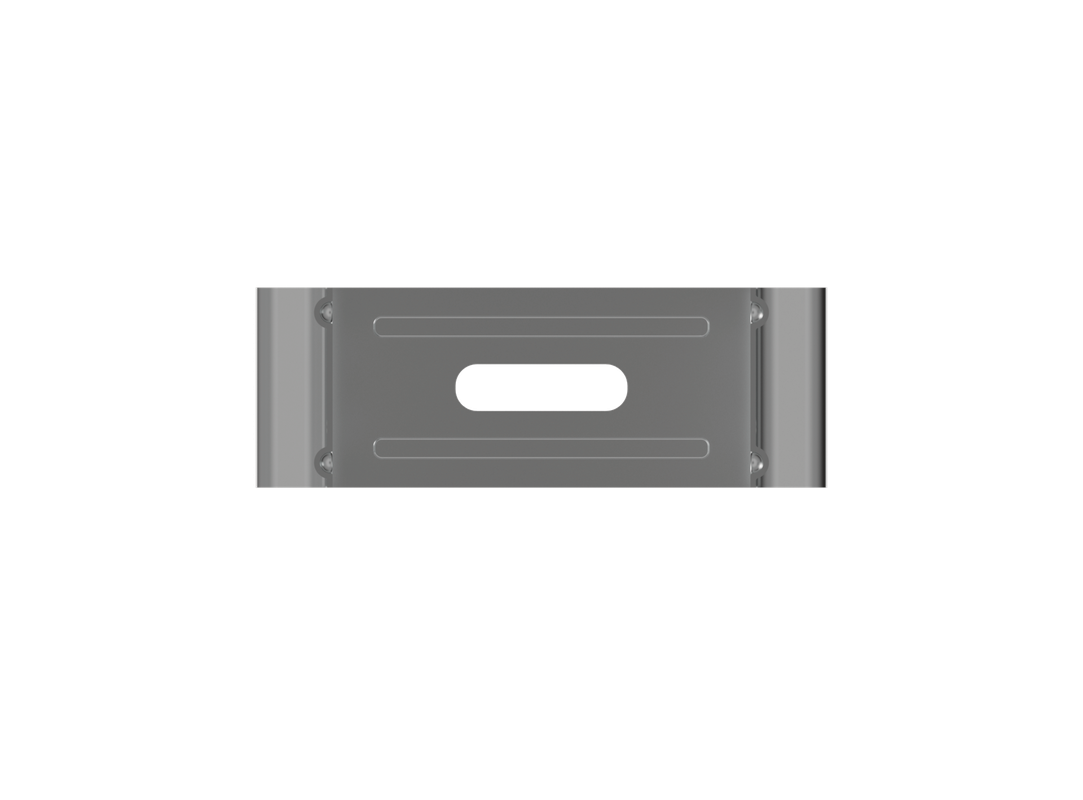

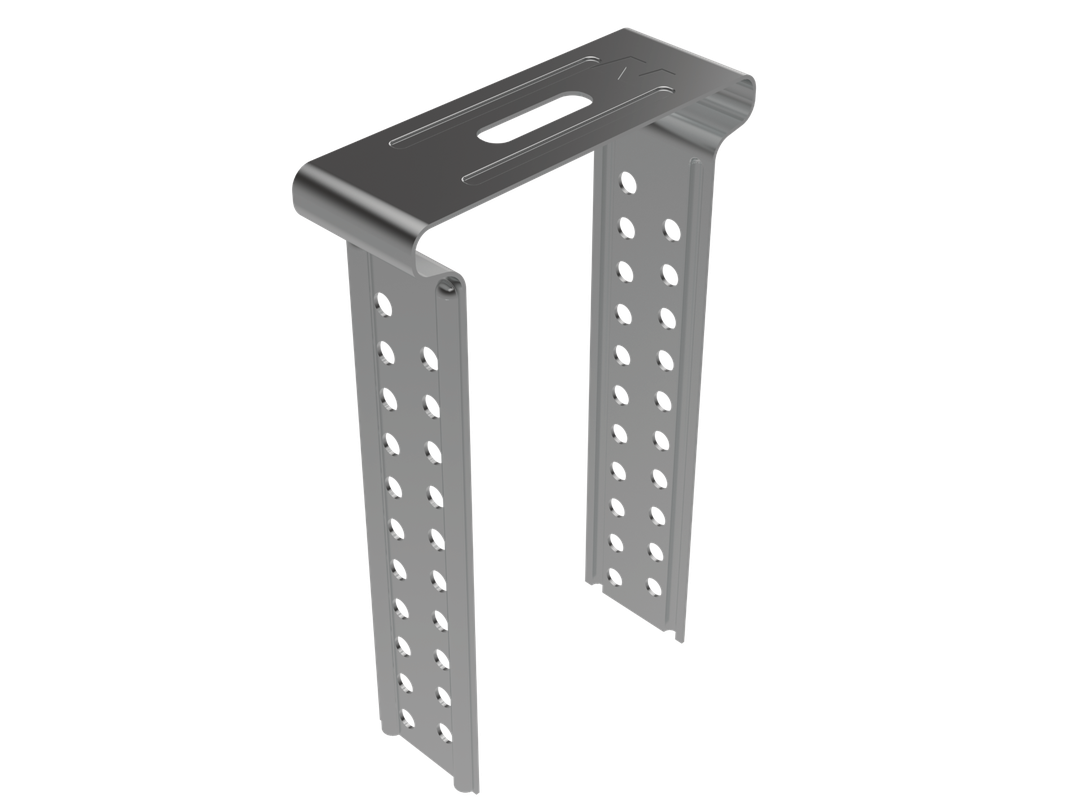

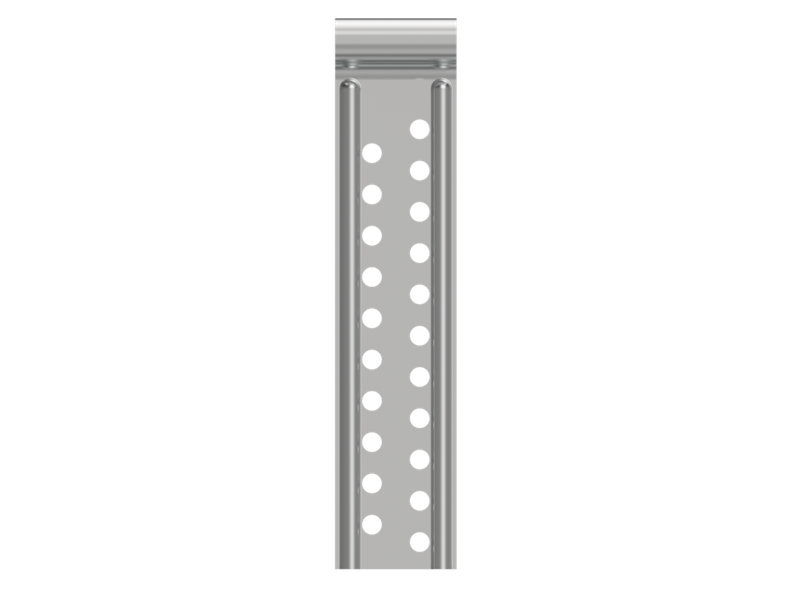

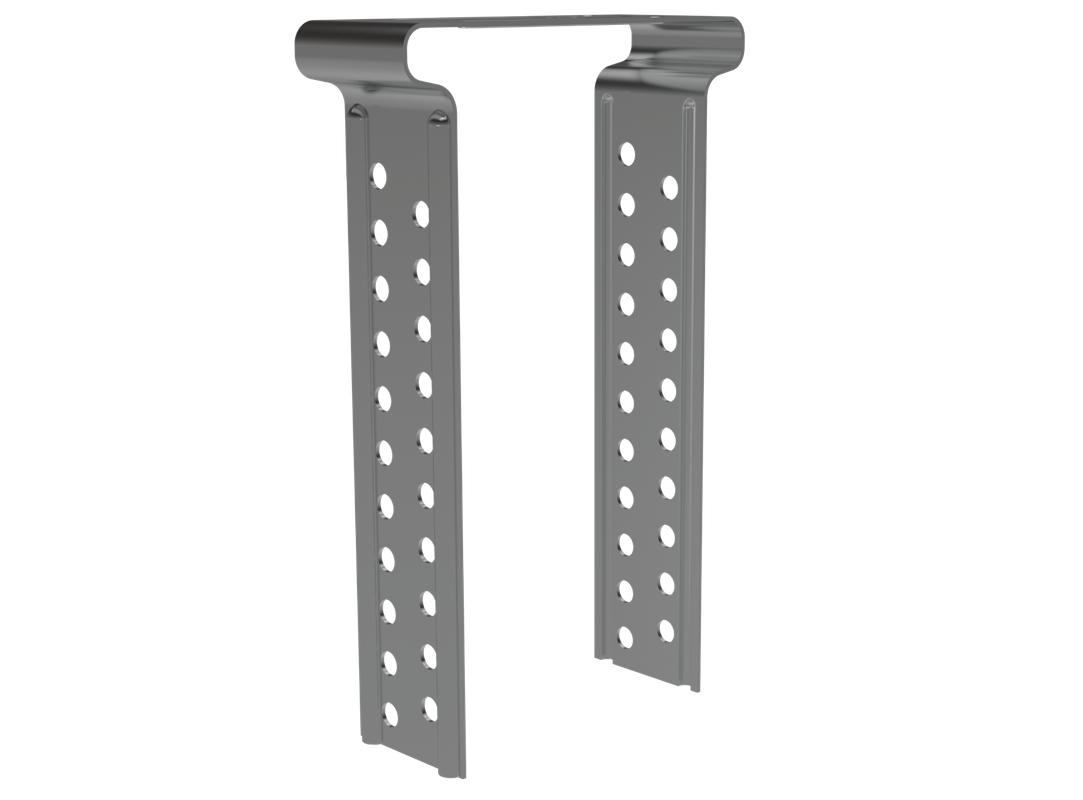

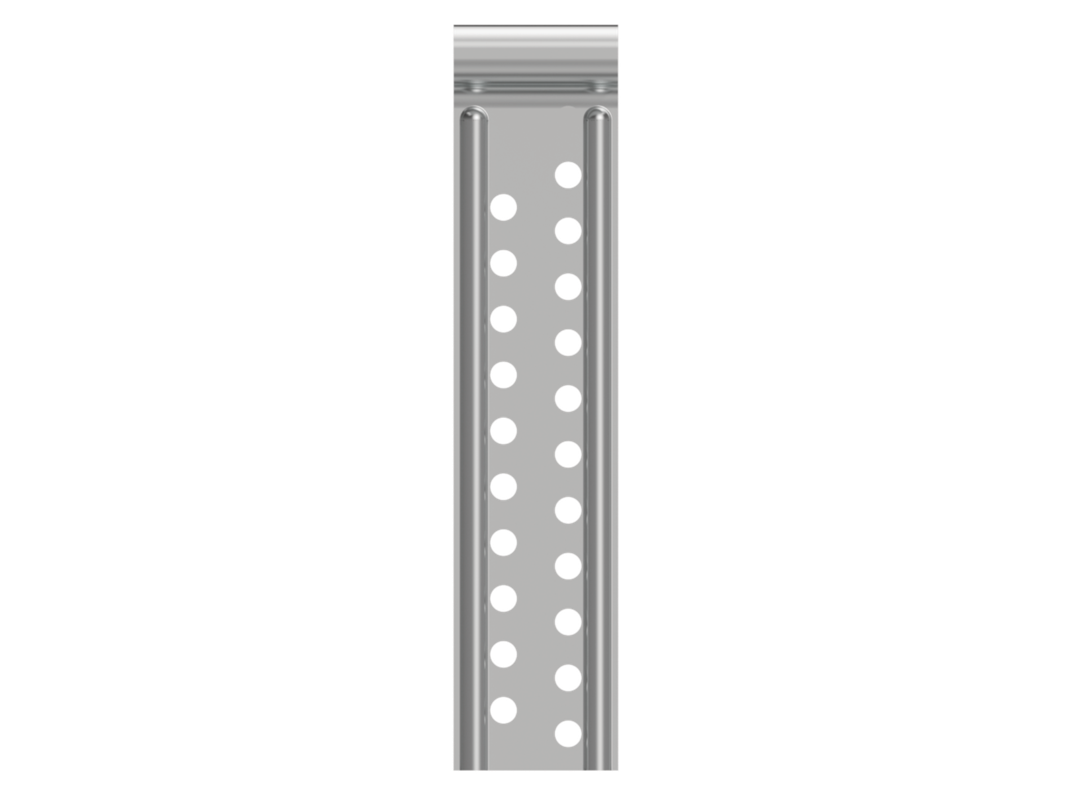

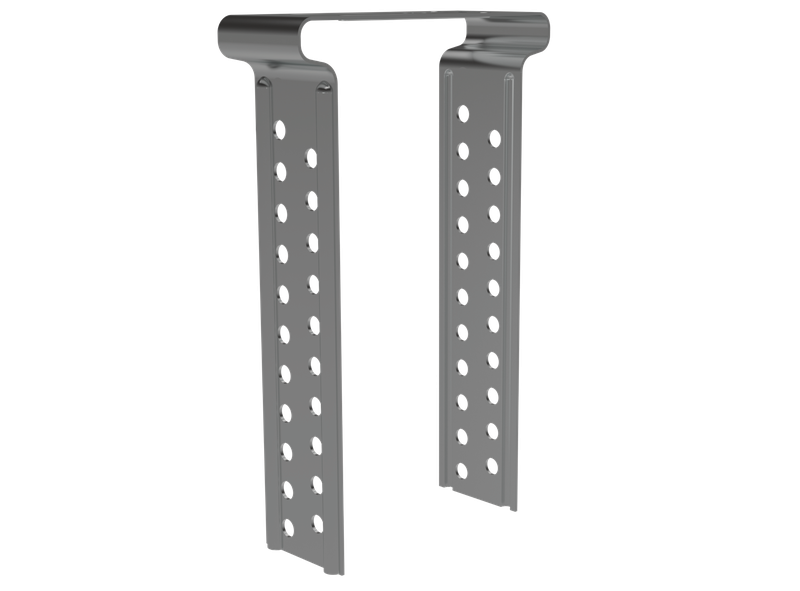

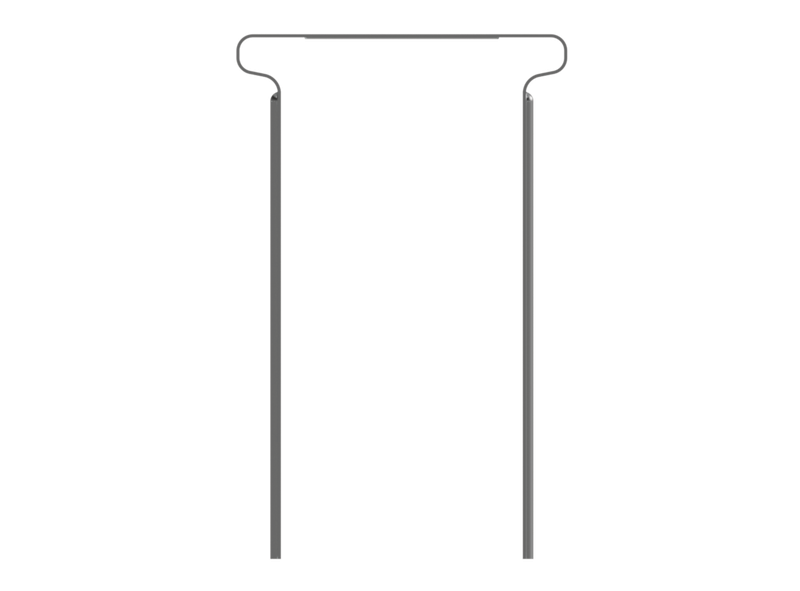

The hanger is made of 0.8 mm zinc-coated sheet metal. Modular product belonging to the accessories category. Metal framing component in accordance with PN-EN 13964:2014-05.
The hanger is made of 0.8 mm zinc-coated sheet metal. Modular product belonging to the accessories category. Metal framing component in accordance with PN-EN 13964:2014-05.
Designated for indoor use as an element of a plasterboard supporting structure. Flexible hanger with increased strength, for affixing CD 60 profiles. Designated for wall claddings, ceiling claddings, dropped ceilings and attic linings. For making a joint with
a CD 60 profile, four Norgips 3.5 x 9.5 mm sheet metal screws with self-tapping bits are to be used.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Safety of use. Made of 0.8 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
0,8
Type of corrosion protection
Zinc-coating Z140
Durability
Class B
Reaction-to-fire performance
A1
Allowable operational load [N]
849
Failure load [N]
2238
NOTES FOR GUIDANCE
The hanger requires indoor storage.
Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s ecommendations and design guidelines. Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
