Description

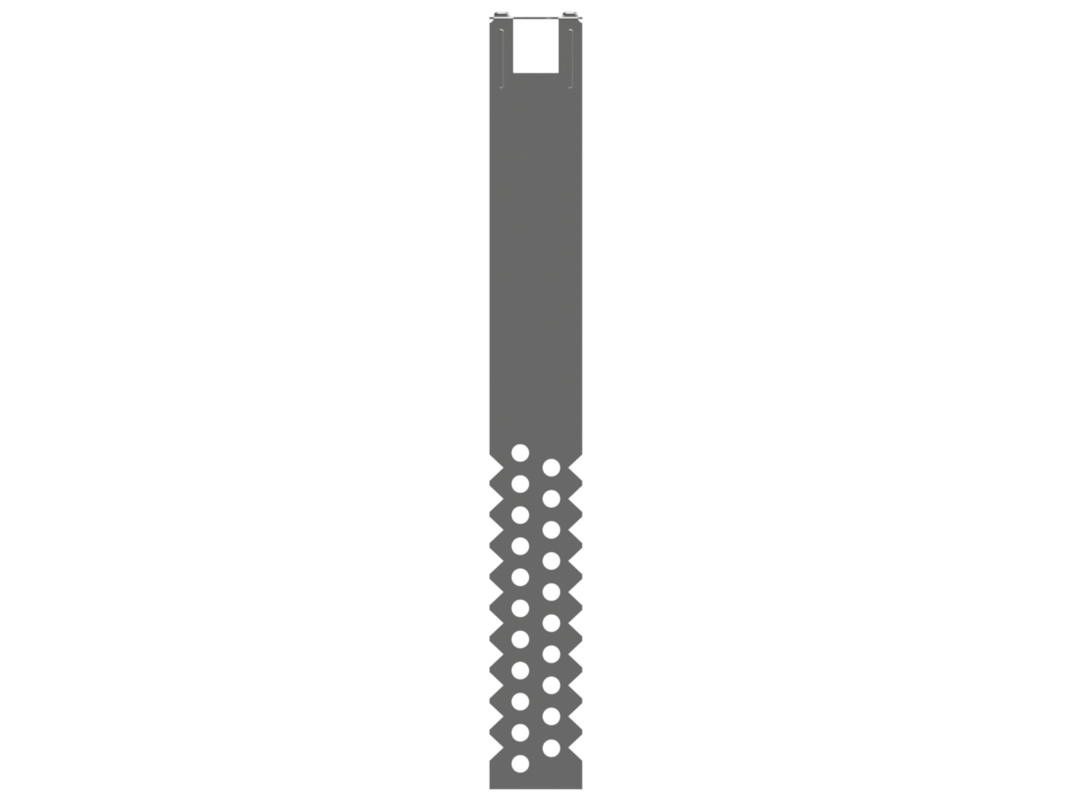

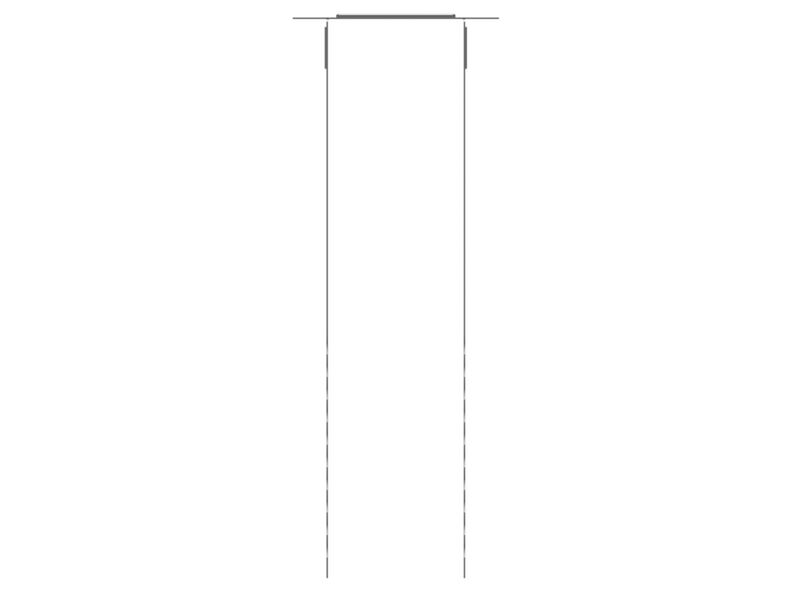

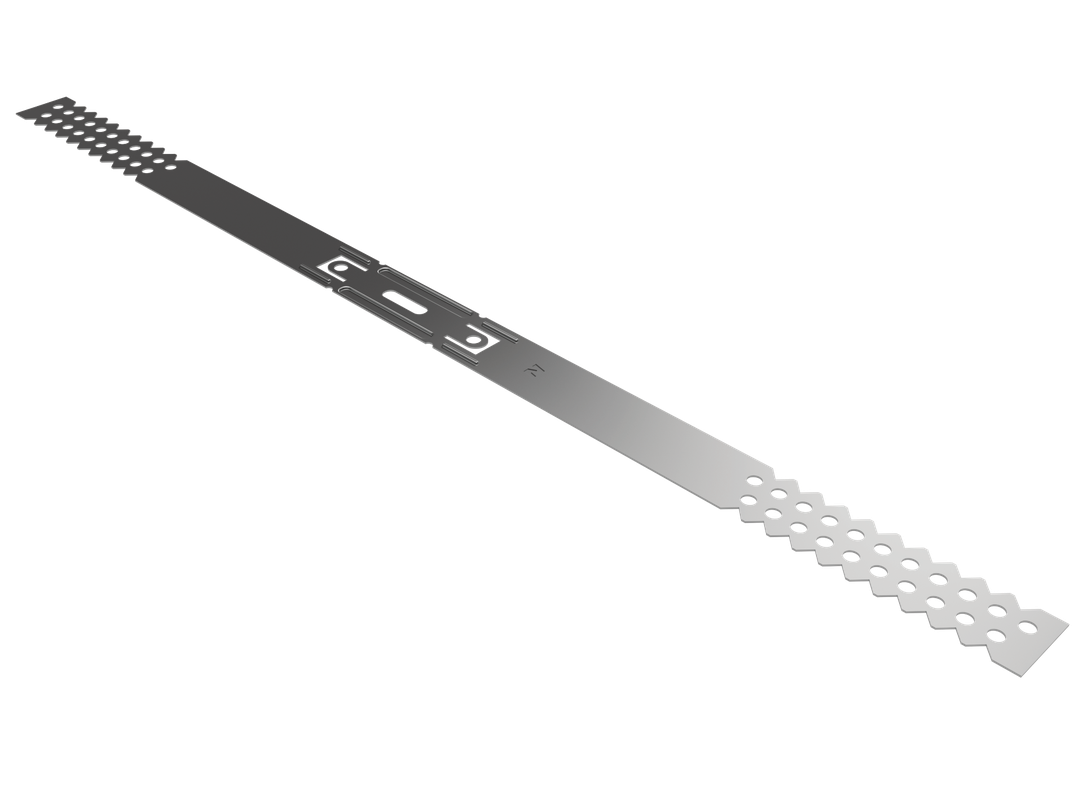

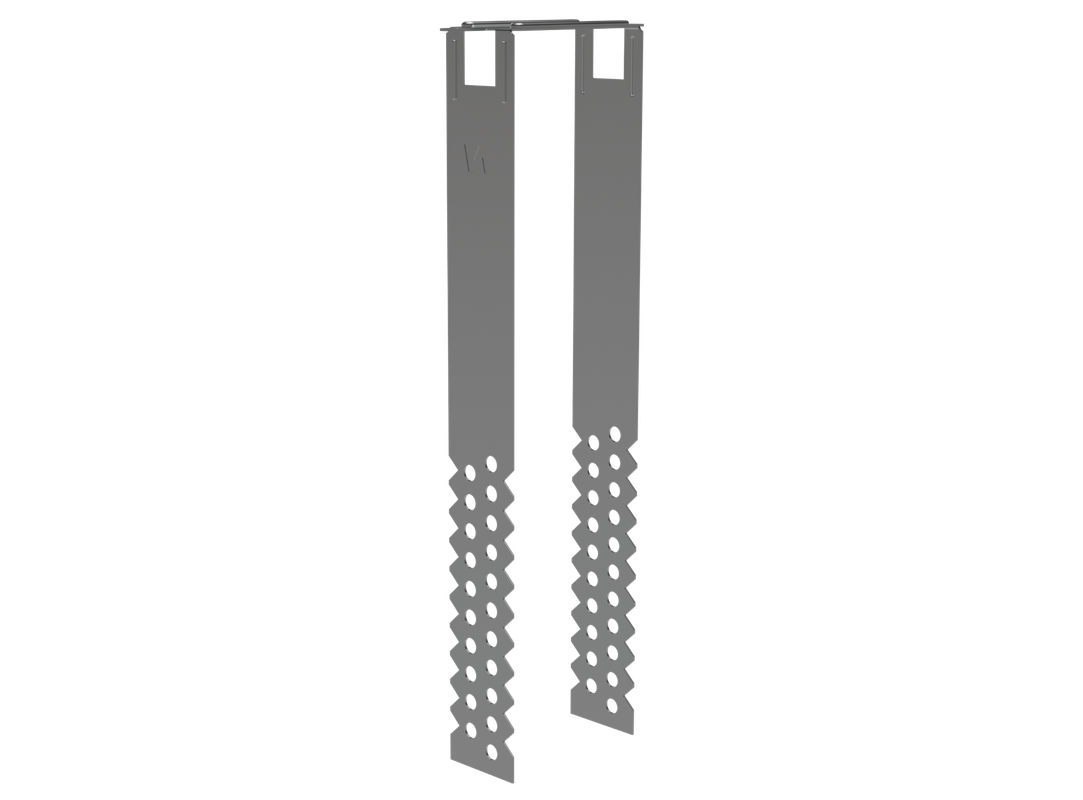

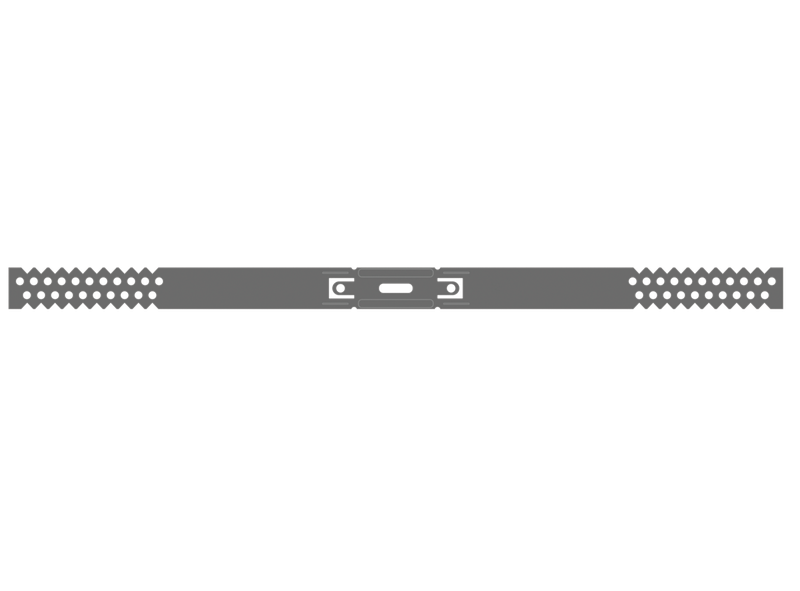

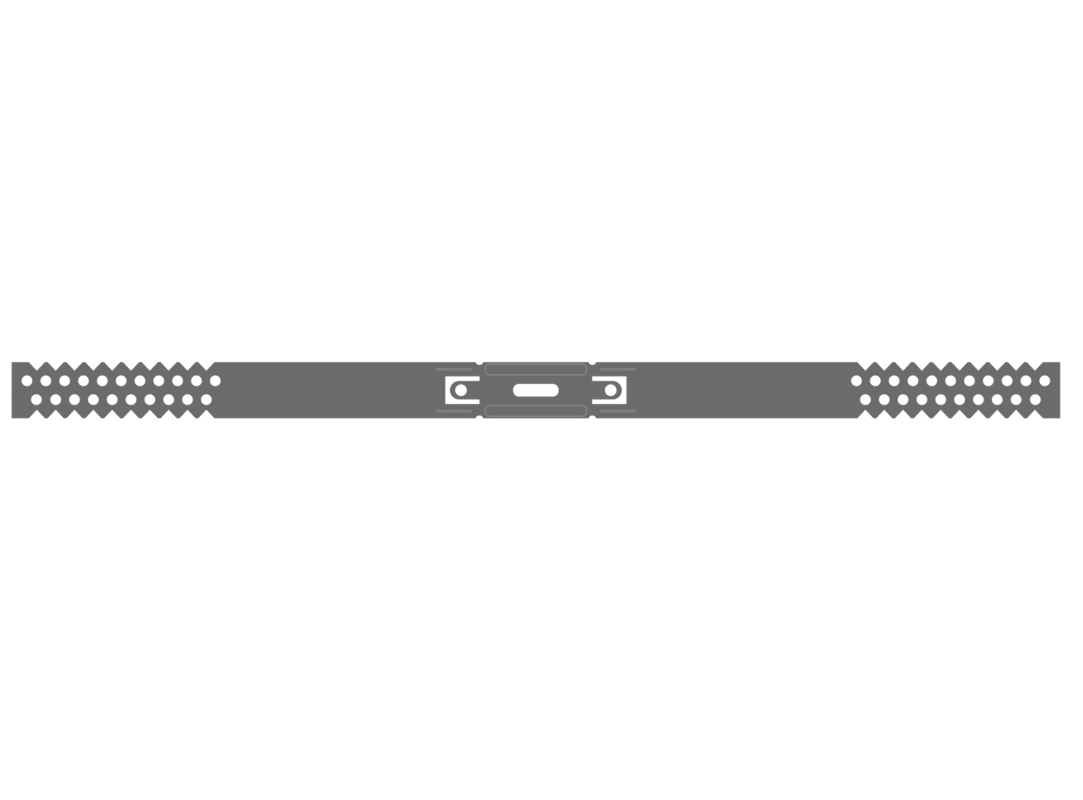

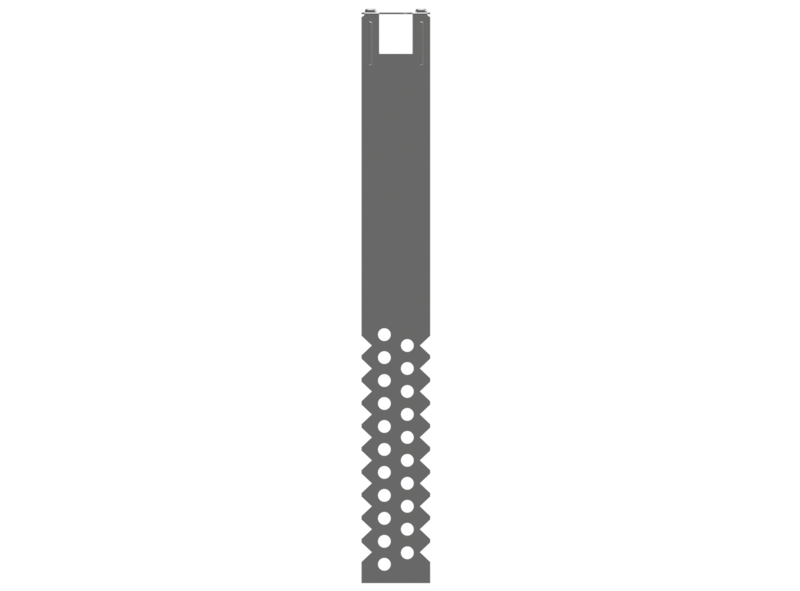

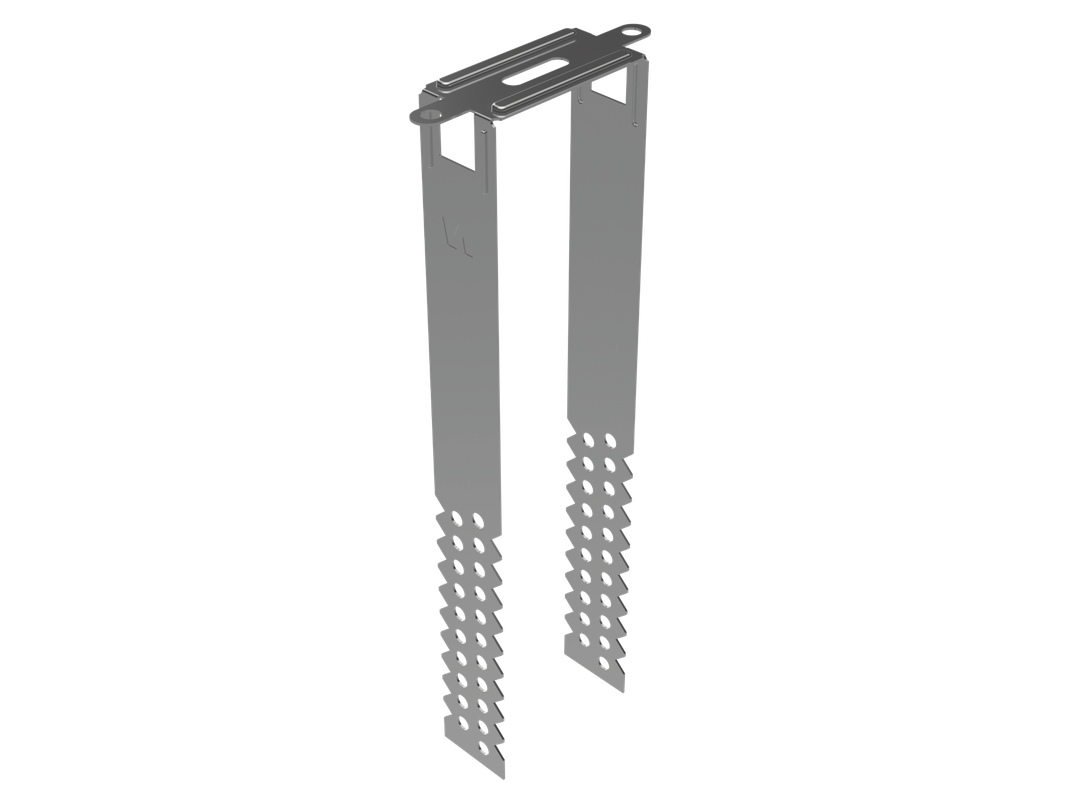

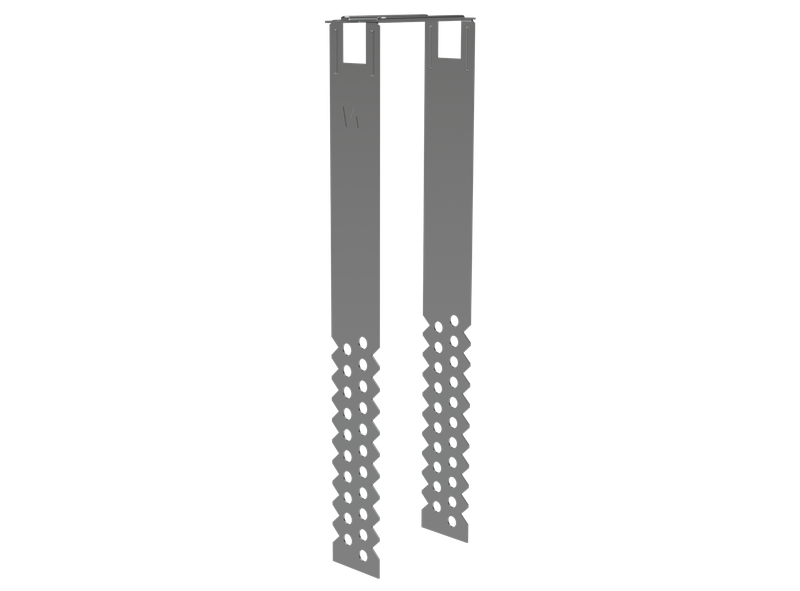

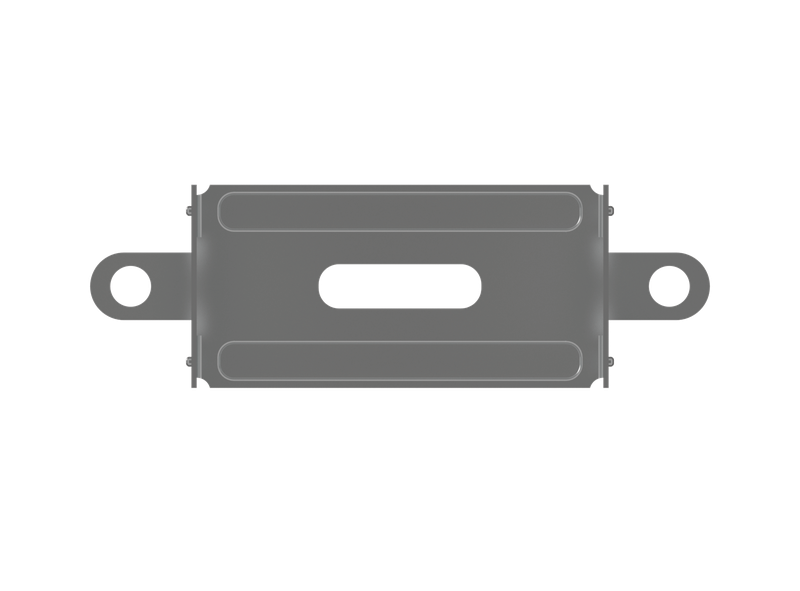

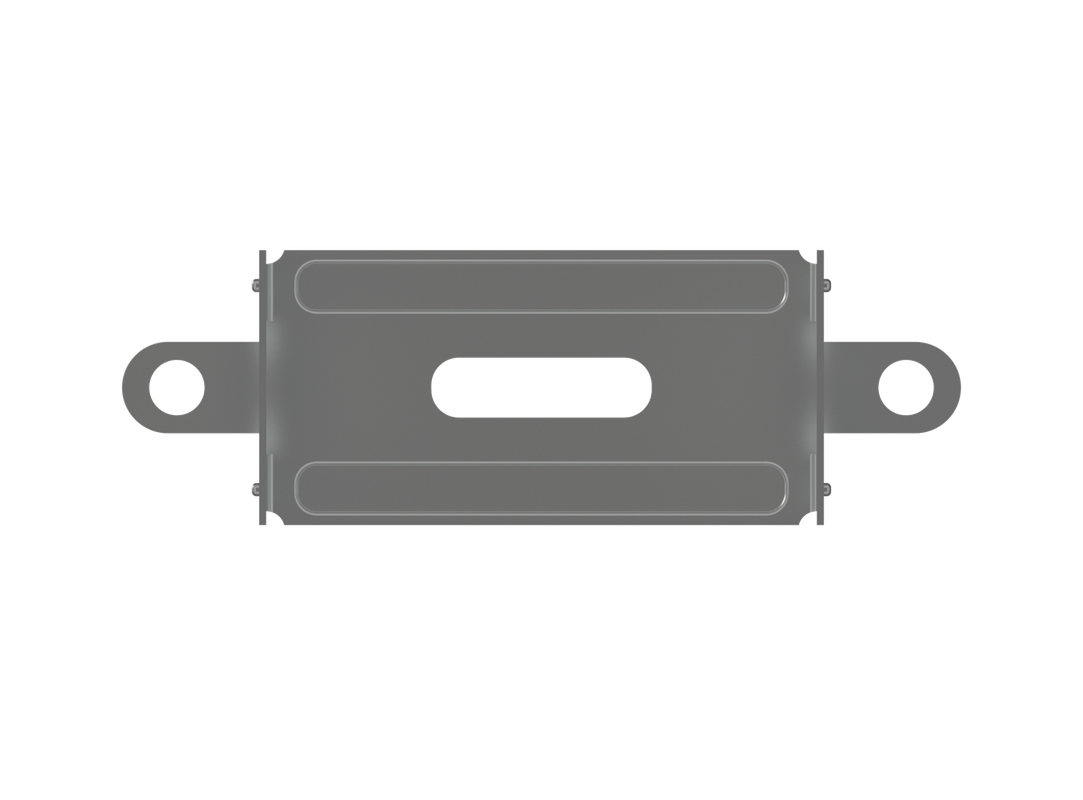

The hanger is made of 0.8 mm zinc-coated sheet metal. Modular product belonging to the accessories category.
Metal framing component in accordance with PN-EN 13964:2014-05.
The hanger is made of 0.8 mm zinc-coated sheet metal. Modular product belonging to the accessories category.
Metal framing component in accordance with PN-EN 13964:2014-05.
Designated for indoor use as an element of a plasterboard supporting structure. A hanger designated for affixing CD 60 profiles (creating a gridwork of dropped ceilings) to horizontal elements of, e.g. the underside of a slab. The ES 60/75 and 60/125 hangers are used for affixing wall and ceiling claddings as well as attic linings. For making a joint with a CD 60 profile, four Norgips 3.5 x 9.5 mm sheet metal screws with self-tapping bits are to be used. Suitable for use in environments with atmospheric corrosivity category C1 or C2 according to PN-EN ISO 12944-2:2001.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Safety of use. Made of 0.8 mm sheet metal.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
0.8
Type of corrosion protection
Zinc-coating Z140
Durability
Class B
Reaction-to-fire performance
A1
ES60/250
815
NOTES FOR GUIDANCE
The hanger requires indoor storage.
Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s recommendations and design guidelines.
Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
