Description

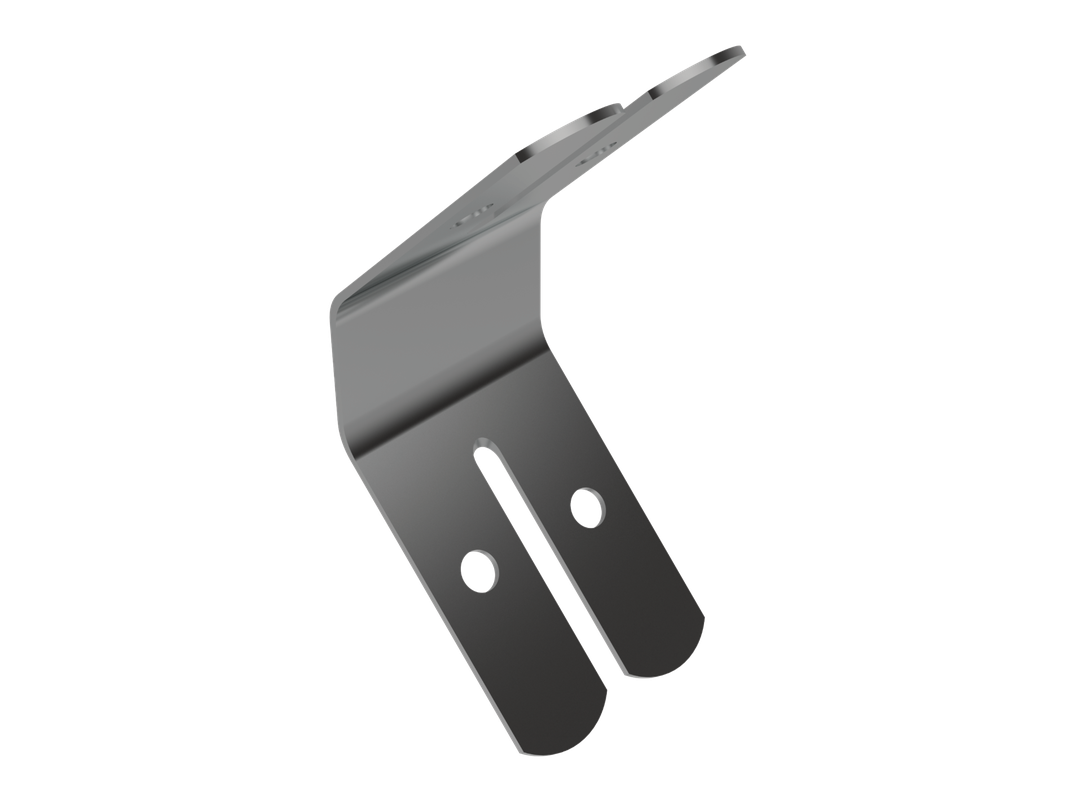

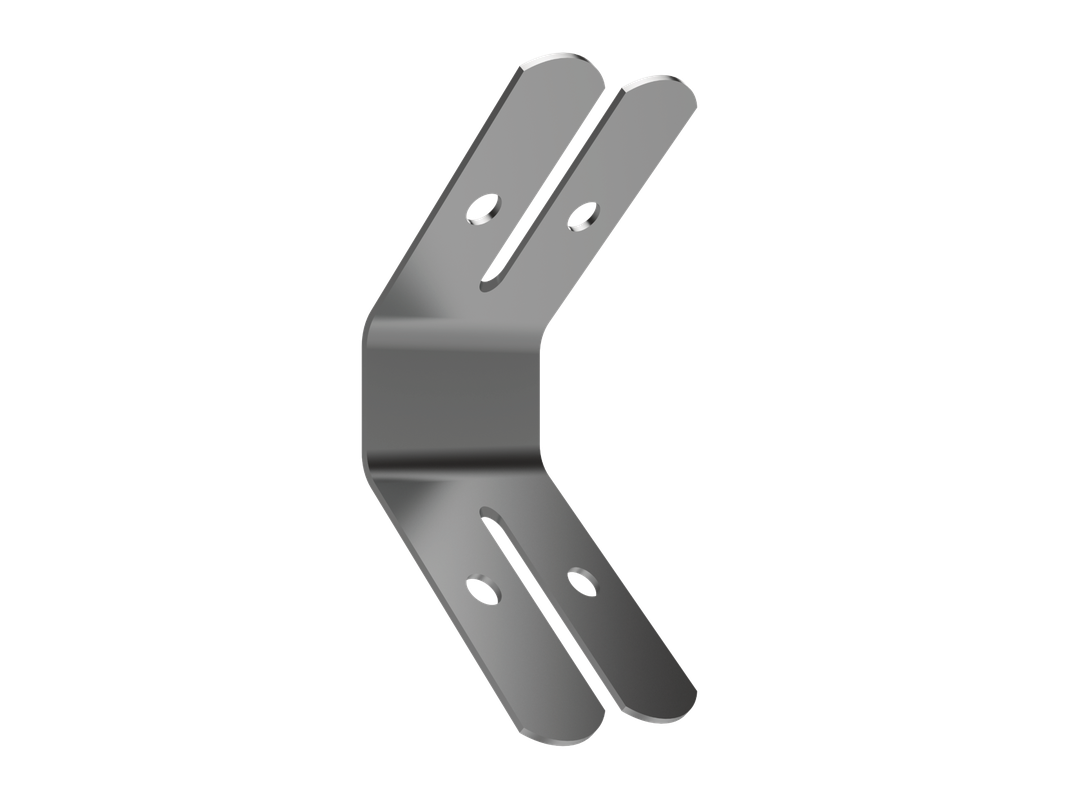

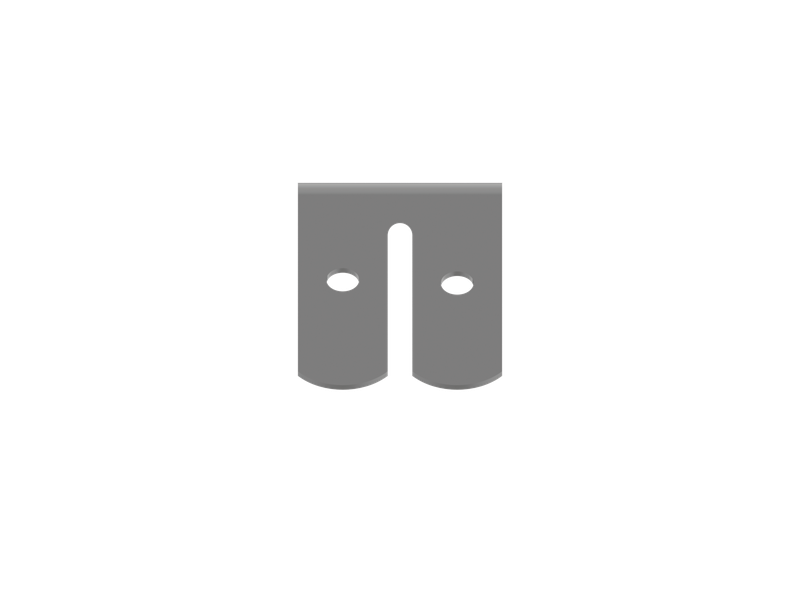

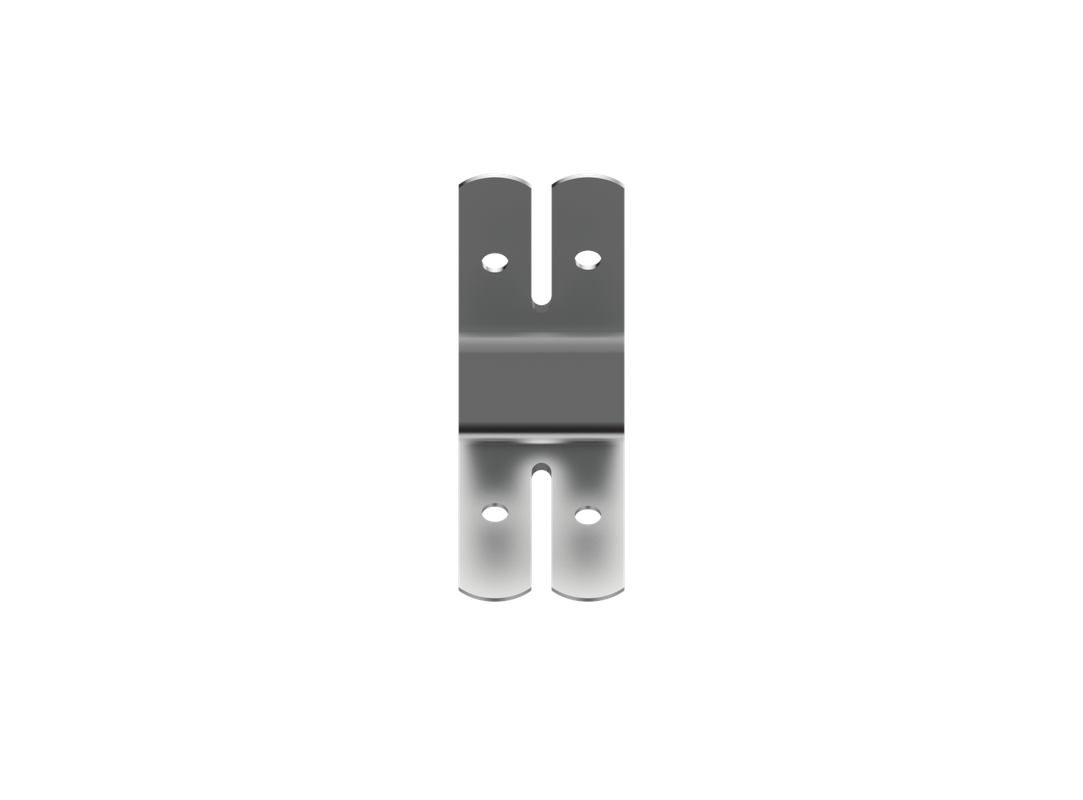

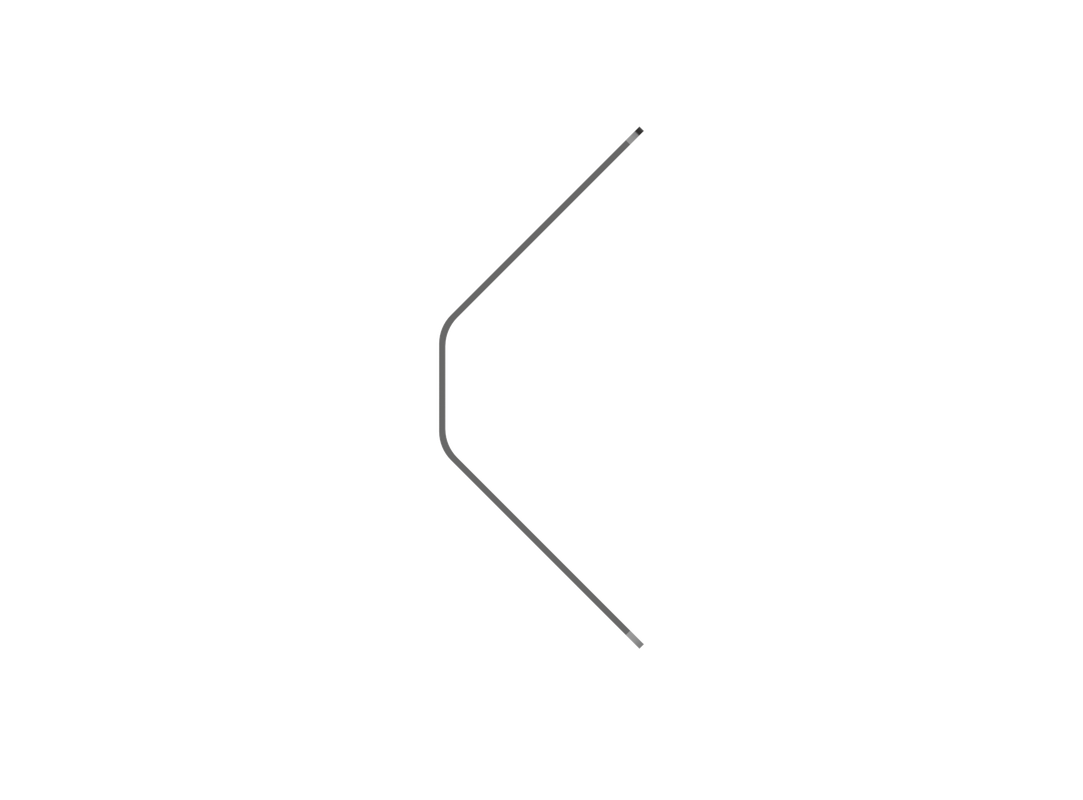

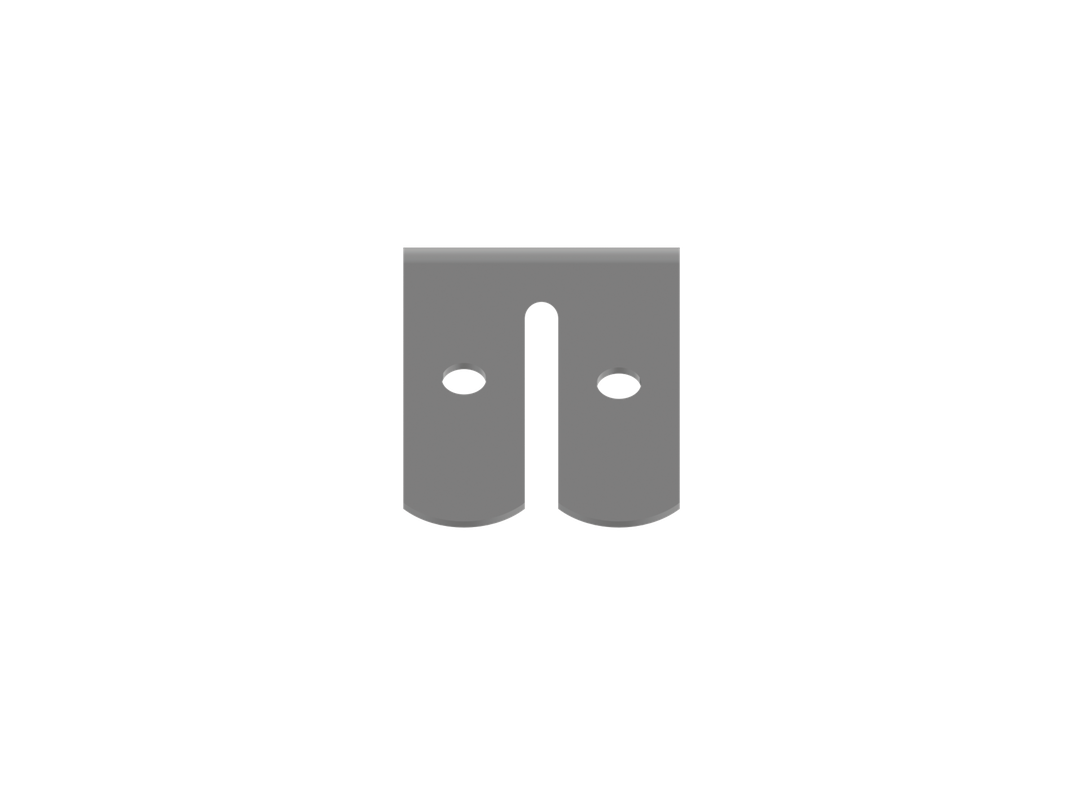

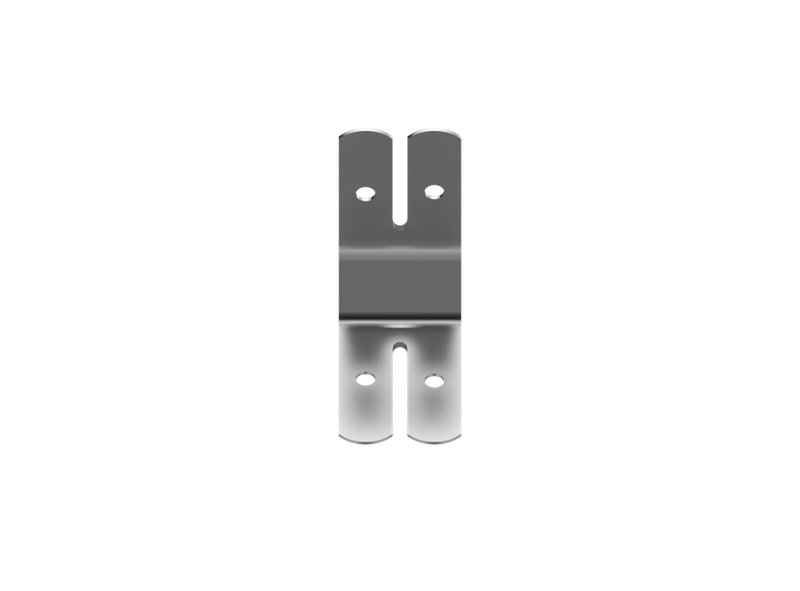

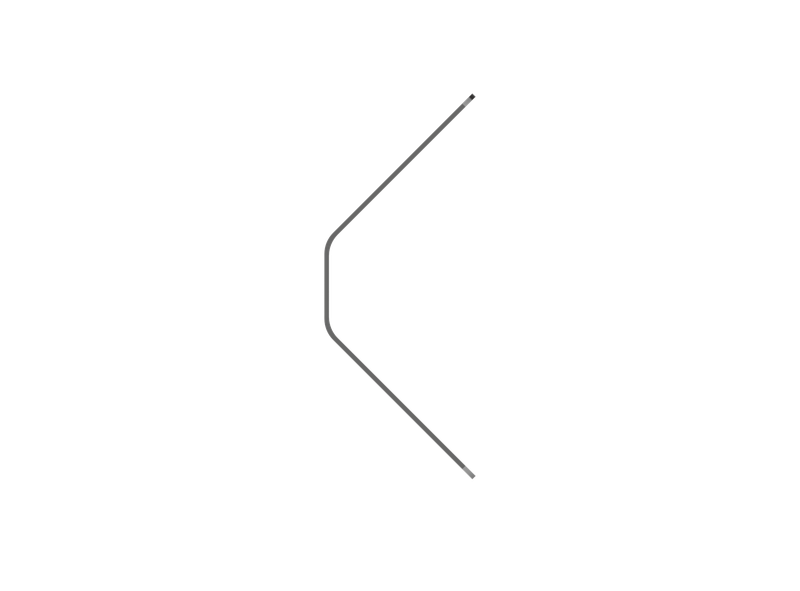

Hanger made of zinc-coated 0.8 mm sheet metal. Double-hook hanger for connecting suspension wires in dropped ceilings. Metal framing component in accordance with PN-EN 13964:2014-05.
Hanger made of zinc-coated 0.8 mm sheet metal. Double-hook hanger for connecting suspension wires in dropped ceilings. Metal framing component in accordance with PN-EN 13964:2014-05.
Designated for indoor use as an element of a structure supporting the plasterboard or in modular dropped ceilings. The spring is designated for affixing suspension wires to the structure of dropped ceilings.
Safety of use. Made of 0.8 mm sheet metal.
Marking. Designations for easy product identification.
Material
DX51D + Z100
Sheet metal gauge [mm]
0.8
Type of corrosion protection
Zinc-coated steel
Durability
Class B
Reaction-to-fire performance
A1
NOTES FOR GUIDANCE
The hanger requires indoor storage.
Do not expose directly to weathering effects. Use the accessories in accordance with manufacturer’s ecommendations and design guidelines.
Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Standard PN-EN 13964:2014-05 Metal framing components for gypsum board systems. Definitions, requirements and test methods.
