Description

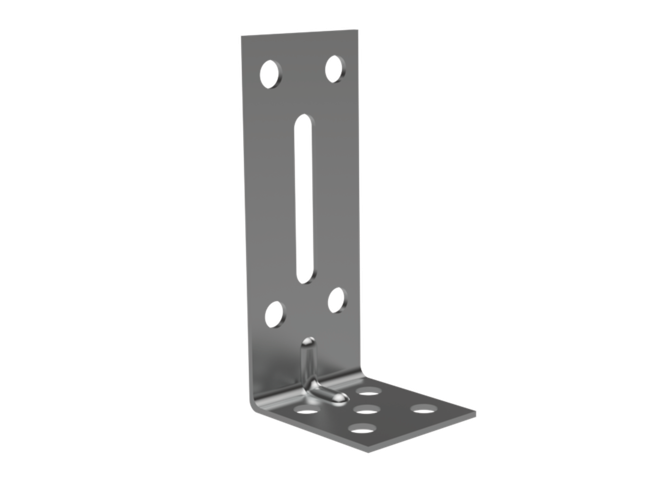

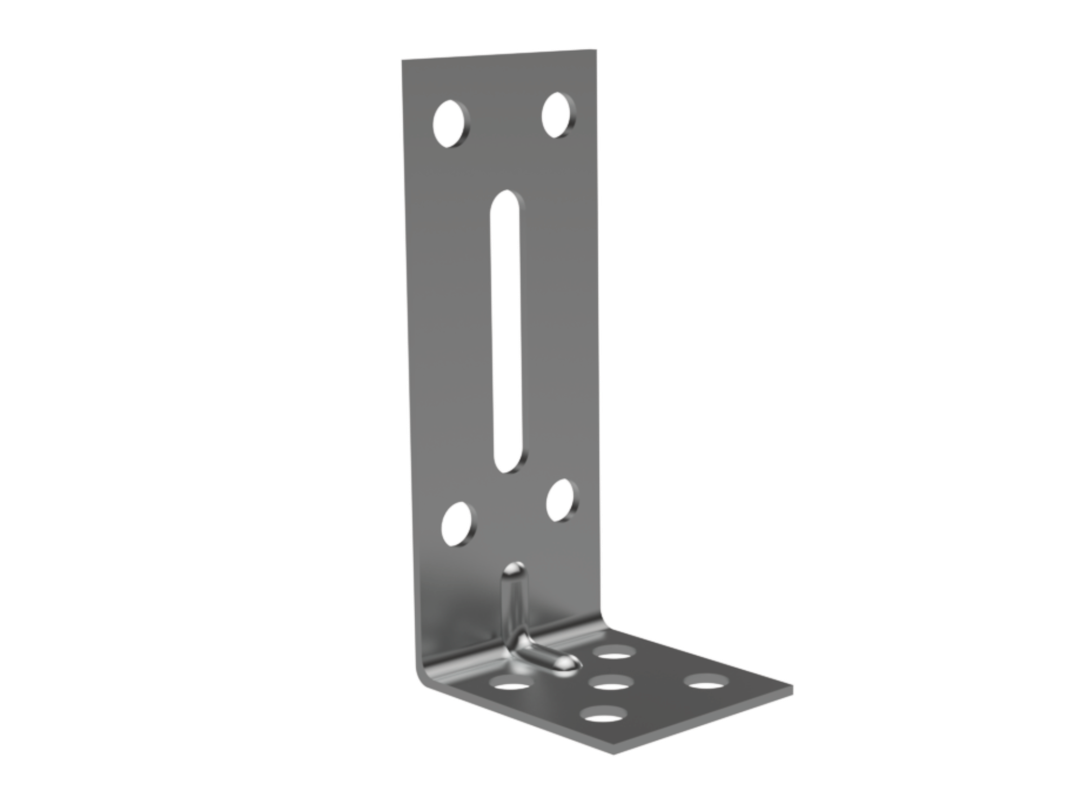

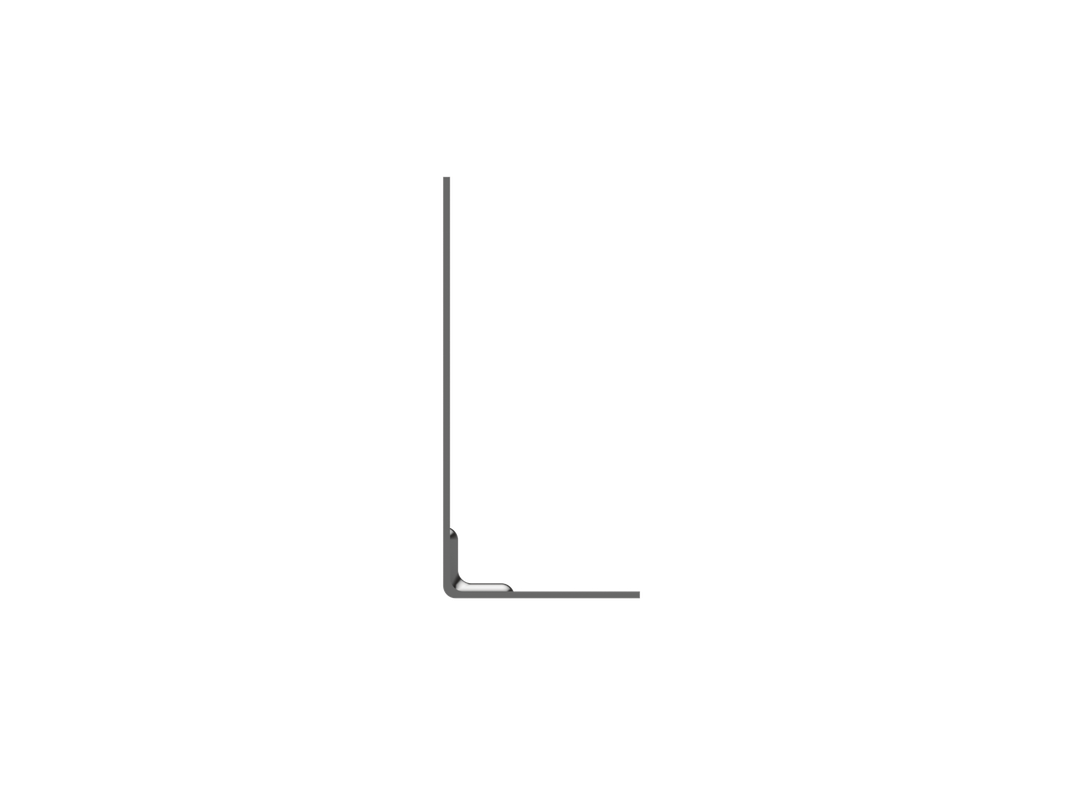

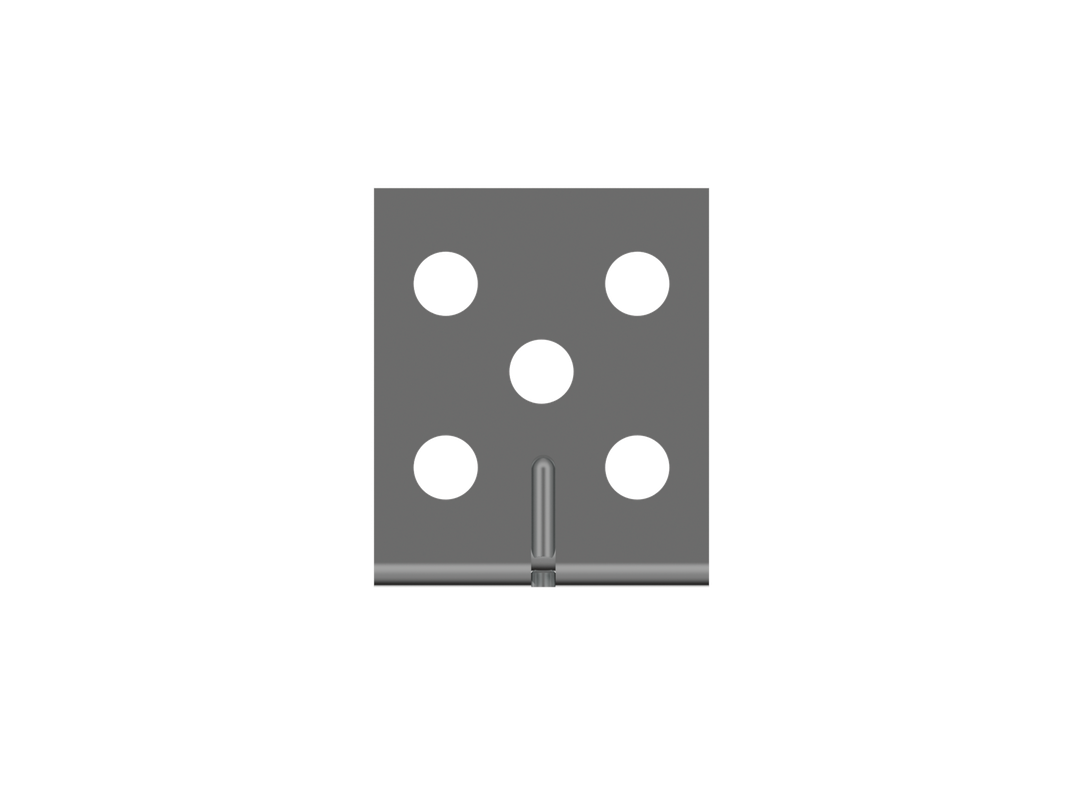

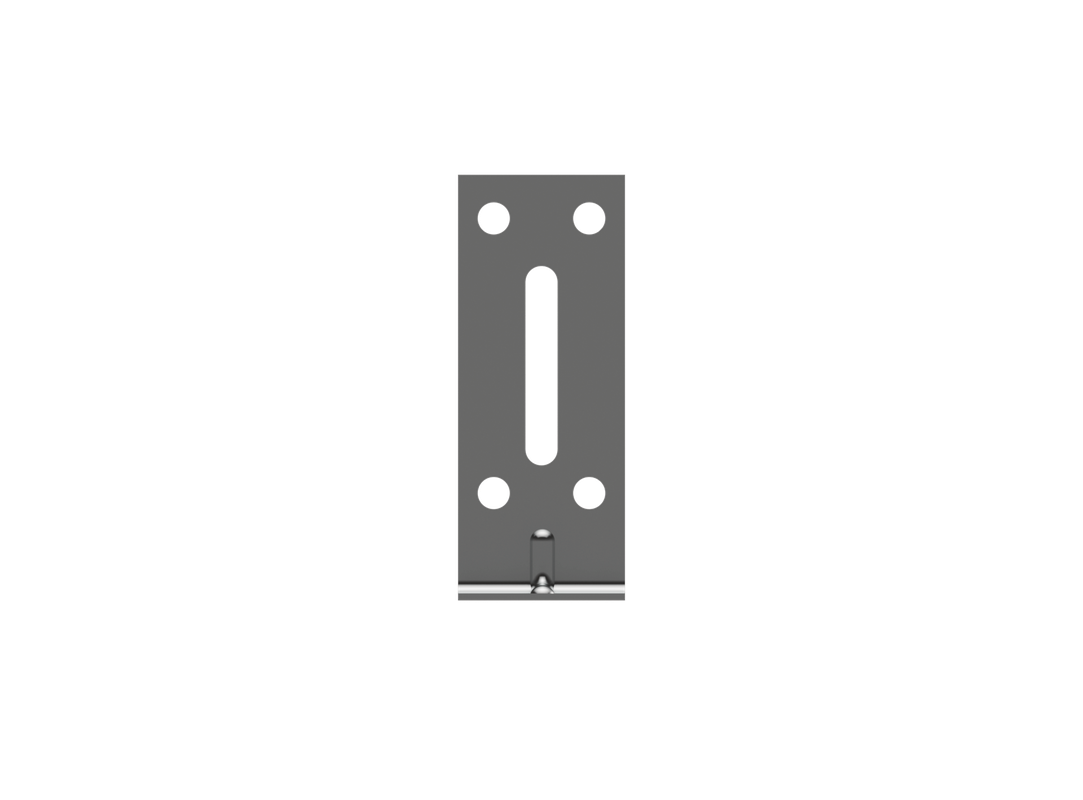

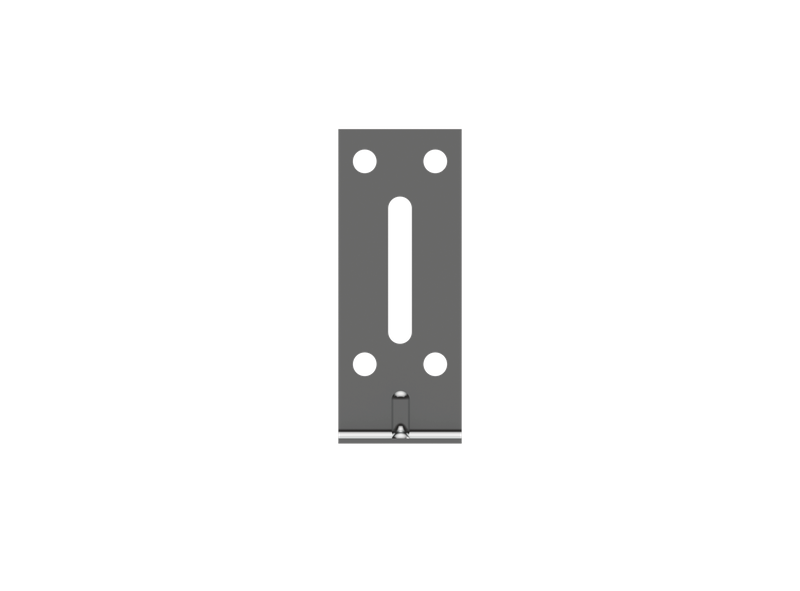

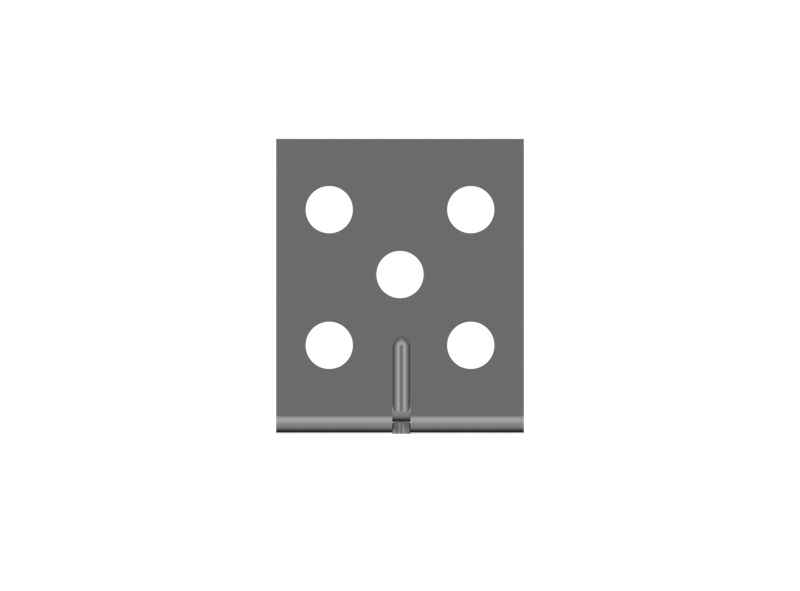

Angle bracket made of zinc-coated 2.0 mm steel sheet and width 44 mm.
Angle bracket for door frame profiles UA50
Angle bracket made of zinc-coated 2.0 mm steel sheet and width 44 mm.
Designated for fastening door frame profiles when making doorways in partition or façade walls. The angle bracket is affixed to the profile with M8 bolts and to the floor with mechanical fasteners.
Suitable for indoor plasterboard lining.
Modularity. Tested as a part of NORGIPS plasterboard lining systems.
Fire safety. Tested as a part of fire protection systems with declared fire resistance rating.
Marking. Designations for easy product identification.
Material
DX51D
Sheet metal gauge [mm]
2,0
Zinc-coating
Z140
Atmospheric corrosivity category
C1, C2
Tensile strength [N/mm2]
270 to 500
Reaction-to-fire performance
A1
NOTES FOR GUIDANCE
Use the angle brackets in accordance with manufacturer’s recommendations and design guidelines.
Consult any other area of application with the design engineer.
ADDITIONAL INFORMATION
Applicable standard: PN-EN 14195: 2015 Metal framing components for gypsum board systems – Definitions, requirements and test methods.
